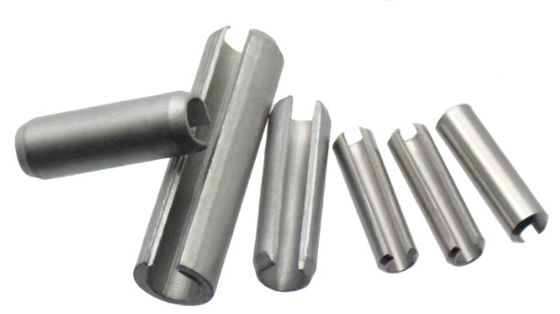

DIN1481 Stainless Steel SUS304 Spring Type Straight Pins Slotted Heavy Type Plain
| Place of Origin | JIANG SU PROVINCE CHINA |
|---|---|
| Brand Name | YingYan |
| Certification | ISO9000 |
| Model Number | Φ4-Φ8 |
| Minimum Order Quantity | 1000pieces |
| Price | Negotiable |
| Packaging Details | Small Boxes, Plastic Bags, Bulk in Cartons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Spring Type Straight Pins, Slotted, Heavy Type | Standard | GB/DIN/ASME/EN/ISO/JIS B&etc. |
|---|---|---|---|
| Material | Stainless Steel SUS304 | Surface Treatment | Polishing |
| Color | Plain | Size | Φ4-Φ8/According Your Requirements |
| Length | 10mm-16mm/According Your Requirements | ||
| Highlight | SUS304 Spring Type Straight Pins,DIN1481 Spring Type Straight Pins,Heavy DIN 1481 Pin |
||
Product Description
DIN1481 Stainless Steel SUS304 Spring Type Straight Pins, Slotted, Heavy Type Plain
| Nominal Diameter | Φ1 | Φ1.5 | Φ2 | Φ2.5 | Φ3 | Φ3.5 | Φ4 | ||
| d | |||||||||
| a | 0.15 | 0.25 | 0.35 | 0.4 | 0.5 | 0.6 | 0.65 | ||
| d | min | 1.2 | 1.7 | 2.3 | 2.8 | 3.3 | 3.8 | 4.4 | |
| max | 1.3 | 1.8 | 2.4 | 2.9 | 3.5 | 4 | 4.6 | ||
| d2 | ≈ | 0.8 | 1.1 | 1.5 | 1.8 | 2.1 | 2.3 | 2.8 | |
| s | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.75 | 0.8 | ||
| Minimum shear strength, single (kN) | 0.35 | 0.79 | 1.41 | 2.19 | 3.16 | 4.53 | 5.62 | ||
| Minimum Double Shear,kN | 0.7 | 1.58 | 2.82 | 4.38 | 6.32 | 9.06 | 11.24 | ||
| Nominal Diameter | Φ4.5 | Φ5 | Φ6 | Φ8 | Φ10 | Φ12 | Φ13 | ||
| d | |||||||||
| a | 0.8 | 0.9 | 1.2 | 2 | 2 | 2 | 2 | ||
| d | min | 4.9 | 5.4 | 6.4 | 8.5 | 10.5 | 12.5 | 13.5 | |
| max | 5.1 | 5.6 | 6.7 | 8.8 | 10.8 | 12.8 | 13.8 | ||
| d2 | ≈ | 2.9 | 3.4 | 3.9 | 5.5 | 6.5 | 7.5 | 8.5 | |
| s | 1 | 1 | 1.25 | 1.5 | 2 | 2.5 | 2.5 | ||
| Minimum shear strength, single (kN) | 7.68 | 8.77 | 13.02 | 21.38 | 35.08 | 52.07 | 57.55 | ||
| Minimum Double Shear,kN | 15.36 | 17.54 | 26.04 | 42.76 | 70.16 | 104.1 | 115.1 | ||
| Nominal Diameter | Φ14 | Φ16 | Φ18 | Φ20 | Φ21 | Φ25 | Φ28 | ||
| d | |||||||||
| a | 2 | 2 | 2 | 3 | 3 | 3 | 3 | ||
| d | min | 14.4 | 16.5 | 18.5 | 20.5 | 21.5 | 25.5 | 28.5 | |
| max | 14.8 | 16.8 | 18.9 | 20.9 | 21.9 | 25.9 | 28.9 | ||
| d2 | ≈ | 8.5 | 10.5 | 11.5 | 12.5 | 13.5 | 15.5 | 17.5 | |
| s | 3 | 3 | 3.5 | 4 | 4 | 5 | 5.5 | ||
| Minimum shear strength, single (kN) | 72.36 | 85.51 | 111.27 | 140.32 | 149.09 | 219.25 | 271.32 | ||
| Minimum Double Shear,kN | 144.7 | 171 | 222.5 | 280.6 | 298.2 | 438.5 | 542.6 | ||
| Nominal Diameter | Φ30 | Φ32 | Φ35 | Φ38 | Φ40 | Φ45 | Φ50 | ||
| d | |||||||||
| a | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||
| d | min | 30.5 | 32.5 | 35.5 | 38.5 | 40.5 | 45.5 | 50.5 | |
| max | 30.9 | 32.9 | 35.9 | 38.9 | 40.9 | 45.9 | 50.9 | ||
| d2 | ≈ | 18.5 | 20.5 | 21.5 | 23.5 | 25.5 | 28.5 | 31.5 | |
| s | 6 | 6 | 7 | 7.5 | 7.5 | 8.5 | 9.5 | ||
| Minimum shear strength, single (kN) | 315.72 | 342.03 | 429.73 | 501.53 | 534.42 | 680.22 | 843.57 | ||
| Minimum Double Shear,kN | 631.4 | 684 | 859 | 1003 | 1068 | 1360 | 1685 | ||
Features:
- These cylindrical pins are equipped with slots along their axial length, allowing elastic deformation during installation, thus facilitating insertion and fixation.
- These cylindrical pins are made of carbon steel or other high-strength materials, enabling them to withstand significant tensile and shear forces.
- The ends of the pins are machined into chamfered surfaces, making insertion more convenient and reducing the risk of damaging other components during assembly.
- Once inserted into a hole, the pins expand slightly, creating an outward tension that secures them tightly against the walls of the hole, ensuring a stable connection.
Advantages:
- Thanks to their slotted design and chamfered ends, heavy-duty straight slotted spring pins can be effortlessly inserted into prefabricated holes, eliminating the need for complex installation tools or specialized techniques.
- The pins' expansive nature results in a tighter fit against the walls of the hole, enhancing the stability of the connection. This allows it to withstand greater vibration and shock, ensuring durability and prolonging the overall lifespan of the application.
- Heavy-duty straight slotted spring pins are designed for ease of installation and removal, making them ideal for use in a wide array of machinery and equipment, particularly in situations where frequent disassembly and reassembly are required, such as in hinges, springs, and power transmission components. Their versatility ensures significant benefits in these applications.
Applications:
- Hinge Connections: Heavy-duty Straight Slotted Spring Pins are commonly used in hinge connections, providing a stable connection that allows the hinge to rotate freely when needed.
- Spring Fixation: In spring applications, these pins can be used to secure the ends of springs, preventing movement or loosening.
- Power Transmission Components: In power transmission systems, heavy-duty straight slotted spring pins are utilized to connect and secure various transmission components, such as gears, shafts, and couplings.
