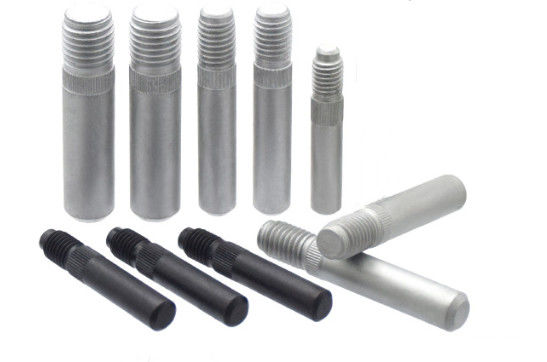

DIN7977 ISO8737 EN 28737 Carbon Steel Taper Pins With External Thread Blacked Dacromet
| Place of Origin | JIANG SU PROVINCE CHINA |
|---|---|
| Brand Name | YingYan |
| Certification | ISO9000 |
| Model Number | length55~70mm |
| Minimum Order Quantity | 1000pieces |
| Price | Negotiable |
| Packaging Details | Small Boxes, Plastic Bags, Bulk in Cartons, |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Taper Pins With External Thread | Standard | GB/DIN/ASME/EN/ISO&etc. |
|---|---|---|---|
| Material | 45#steel | Finish | Blackened，Dacromet |
| Service | OEM/ODM | Shape | TAPER |
| Size | M10-M16/According Your Requirement | ||
| Highlight | External Thread Steel Taper Pins,Carbon Steel Taper Pins,DIN 7977 Taper Pin |
||
Product Description

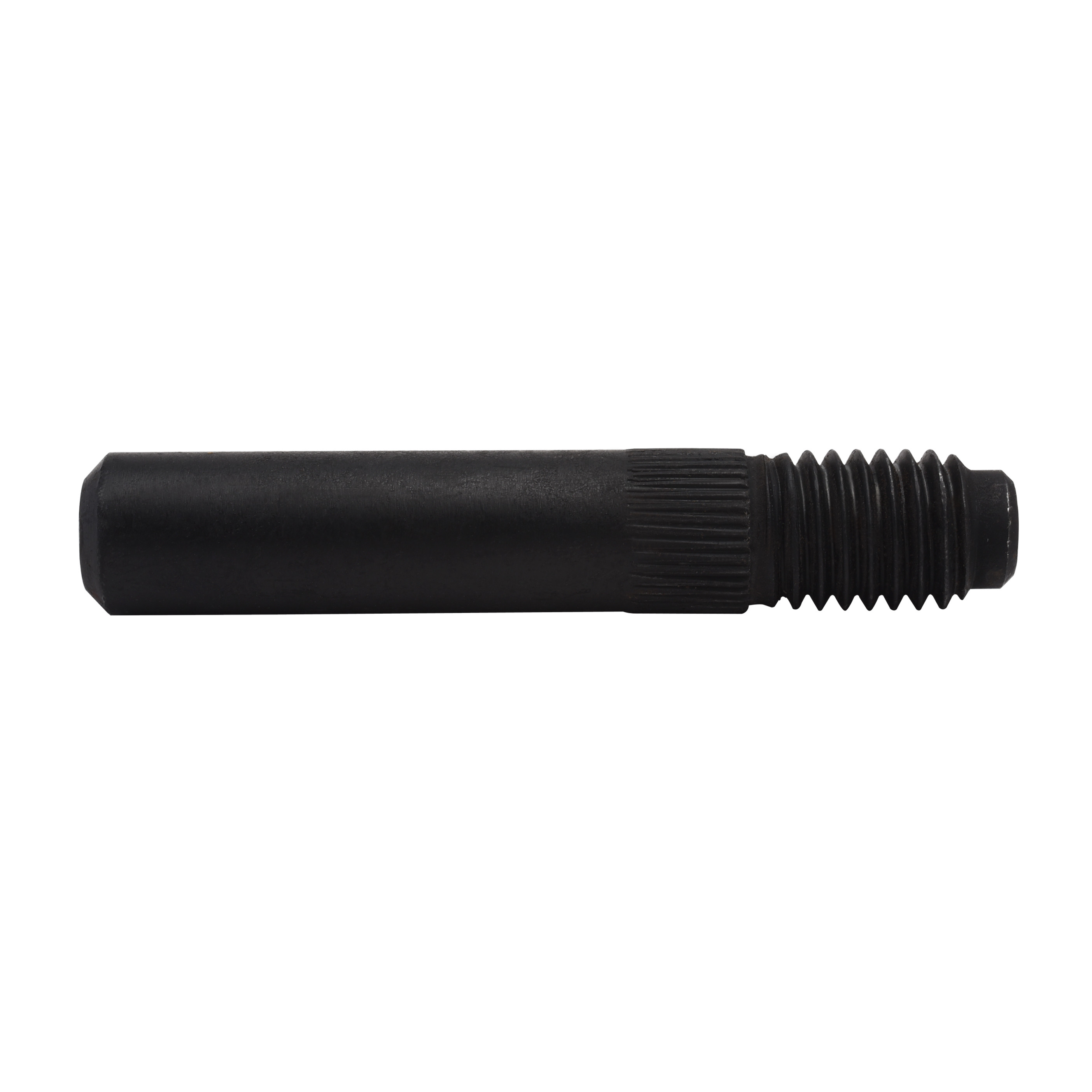

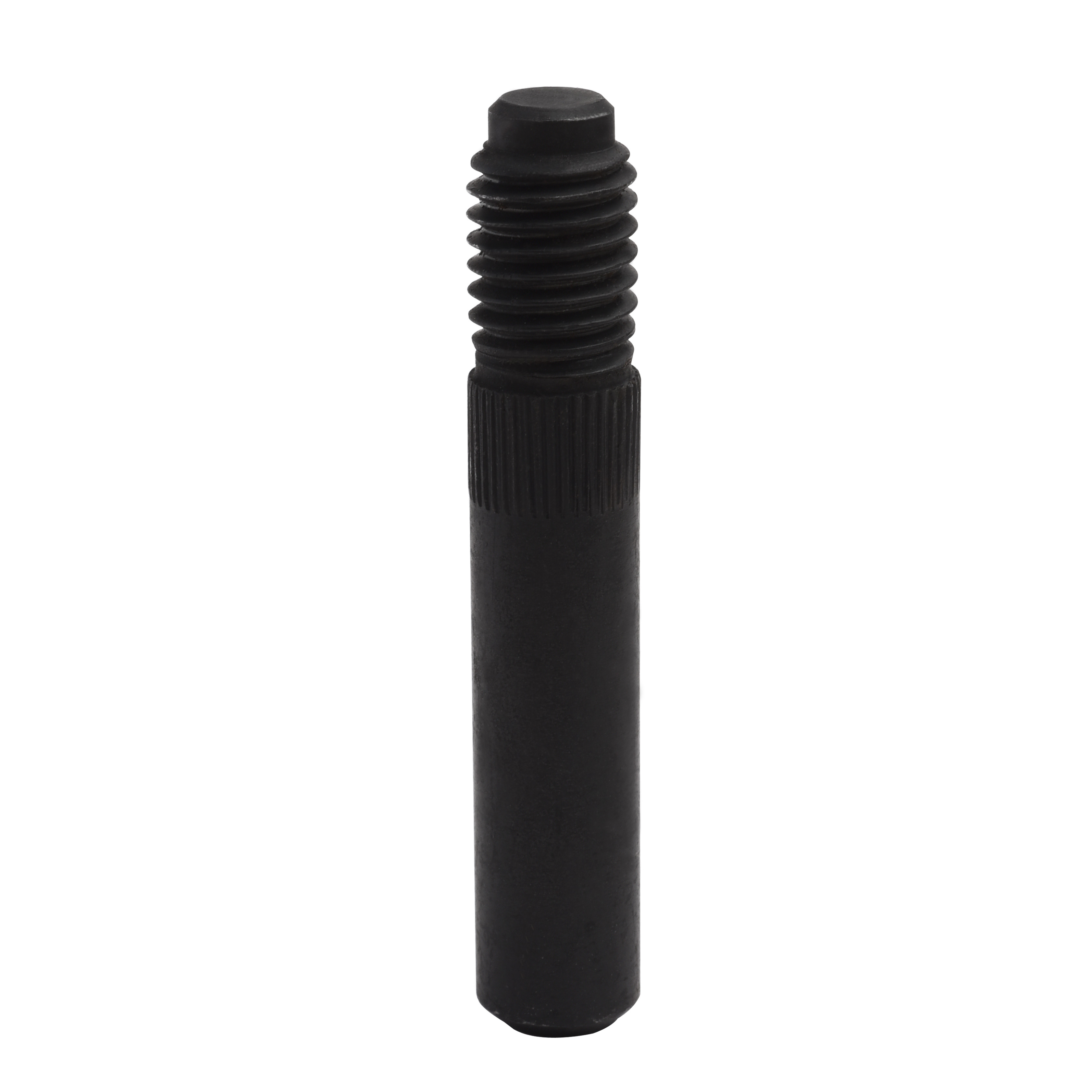

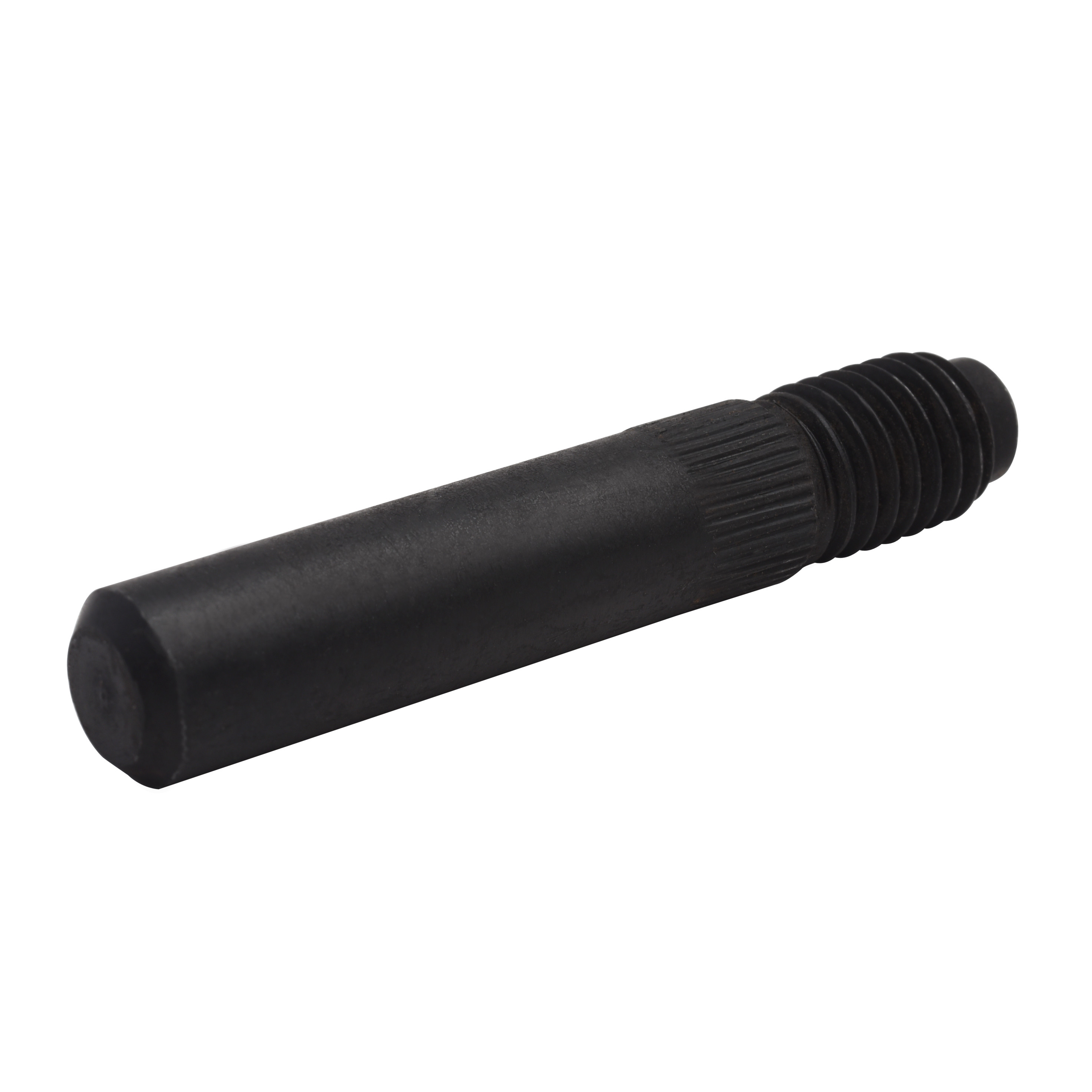

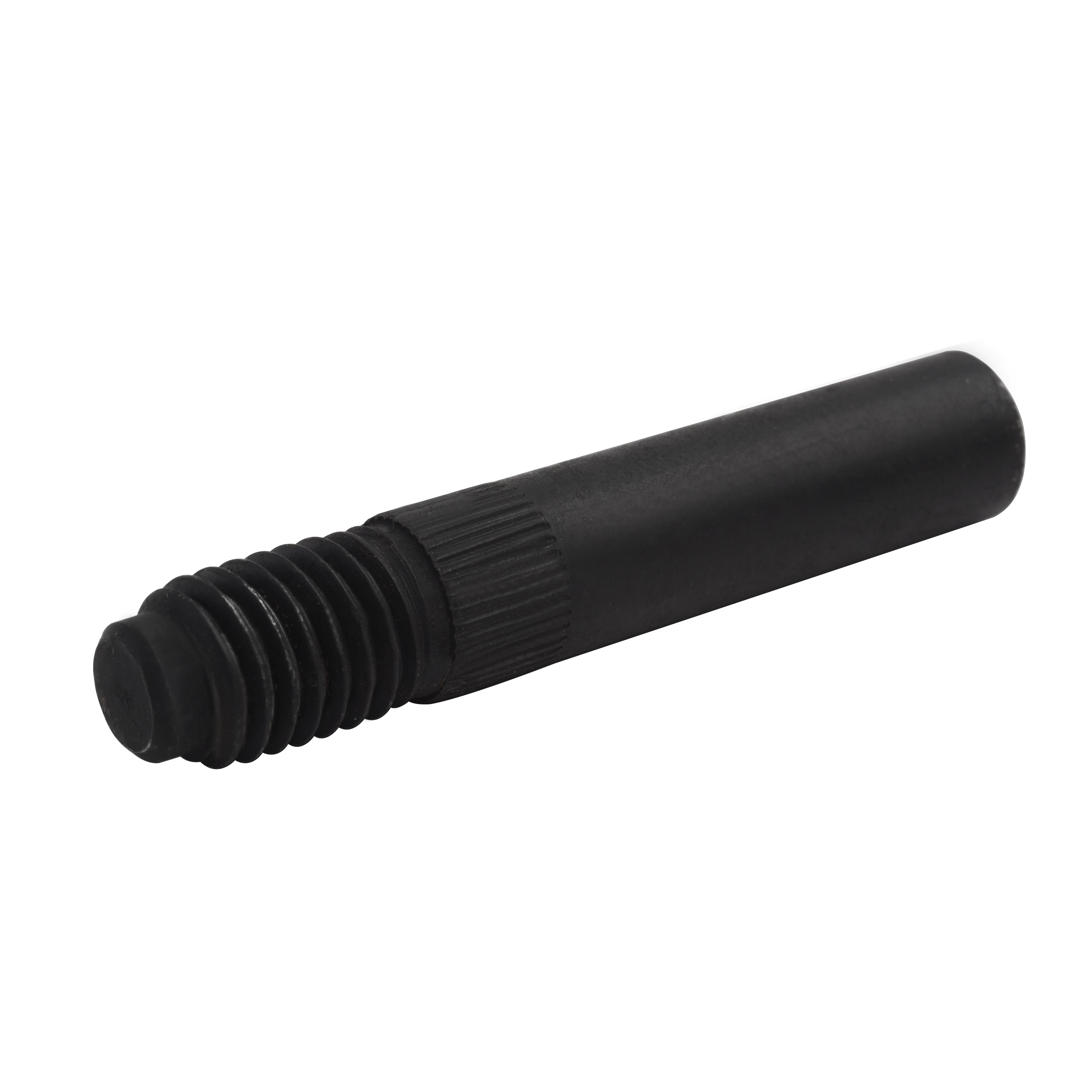

Taper Pins With External Thread
| Nominal Diameter | 5 | 6 | 8 | 10 | 12 | 14 | |
| d | |||||||
| P | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 1.75 | |
| d | max | 5 | 6 | 8 | 10 | 12 | 14 |
| min | 4.952 | 5.952 | 7.942 | 9.942 | 11.93 | 13.93 | |
| b | max | 15.6 | 20 | 24.5 | 27 | 30.5 | 33.5 |
| min | 14 | 18 | 22 | 24 | 27 | 30 | |
| a | max | 2.4 | 3 | 4 | 4.5 | 5.3 | 6 |
| d2 | M5 | M6 | M8 | M10 | M12 | M12 | |
| r1 | ≈ | 0.3 | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 |
| r2 | ≈ | 0.6 | 0.6 | 0.6 | 1 | 1 | 1 |
| dp | h13 | 3.5 | 4 | 5.5 | 7 | 8.5 | 8.5 |
| z | 0 | 1.25 | 1.5 | 2 | 2.5 | 3 | 3 |
| Nominal Diameter | 16 | 20 | 25 | 30 | 40 | 50 | |
| d | |||||||
| P | 2 | 2 | 2.5 | 3 | 3.5 | 4 | |
| d | max | 16 | 20 | 25 | 30 | 40 | 50 |
| min | 15.93 | 19.916 | 24.916 | 29.916 | 39.9 | 49.9 | |
| b | max | 39 | 39 | 45 | 52 | 65 | 78 |
| min | 35 | 35 | 40 | 46 | 58 | 70 | |
| a | max | 6 | 6 | 7.5 | 9 | 10.5 | 12 |
| d2 | M16 | M16 | M20 | M24 | M30 | M36 | |
| r1 | ≈ | 0.8 | 0.8 | 1 | 1 | 1.2 | 1.6 |
| r2 | ≈ | 1.6 | 1.6 | 1.6 | 2.5 | 2.5 | 4 |
| dp | h13 | 12 | 12 | 15 | 18 | 23 | 28 |
| z | 0 | 4 | 4 | 5 | 6 | 7.5 | 9 |
Features:
- This pin features a tapering shape with an external thread. The combination of the taper and thread enhances precision in positioning and ensures a more secure fixation.
- Manufactured according to the DIN 7977 standard, these pins feature precise dimensions and variable lengths, making them adaptable to a wide range of scenarios and applications.
- The manufacturing process offers a selection of different materials, including steel, stainless steel, and brass, each with its own advantages in terms of strength, corrosion resistance, and cost-efficiency.
- Manufactured in accordance with DIN7977, the pin is precise in size and high in overall accuracy, ensuring reliable performance in assembly.
Advantages:
- The combination of tapering and threading ensures a secure connection in assemblies, resisting vibration and other external forces.
- The tapered shape allows for easy insertion into holes, facilitating installation, while the external thread provides a secure locking effect and also makes removal easy.
- The variety of lengths, diameters, and material options make DIN 7977 taper pins versatile and suitable for a wide range of applications and scenarios.
Applications:
- Machinery and Equipment: DIN 7977 taper pins with external thread are commonly used in machinery and equipment where precise positioning and secure fixing are critical, such as in bearings, gearboxes, and other transmission components.
- Automotive Industry: In the automotive industry, these pins are used for fixing components in engines, transmissions, and chassis systems.
- Aerospace and Defense: The precision and reliability of DIN 7977 taper pins make them suitable for use in aerospace and defense applications where high performance and safety are paramount.
Please note that specific applications and performance characteristics may vary depending on the material, dimensions, and design of the individual DIN 7977 taper pins.
