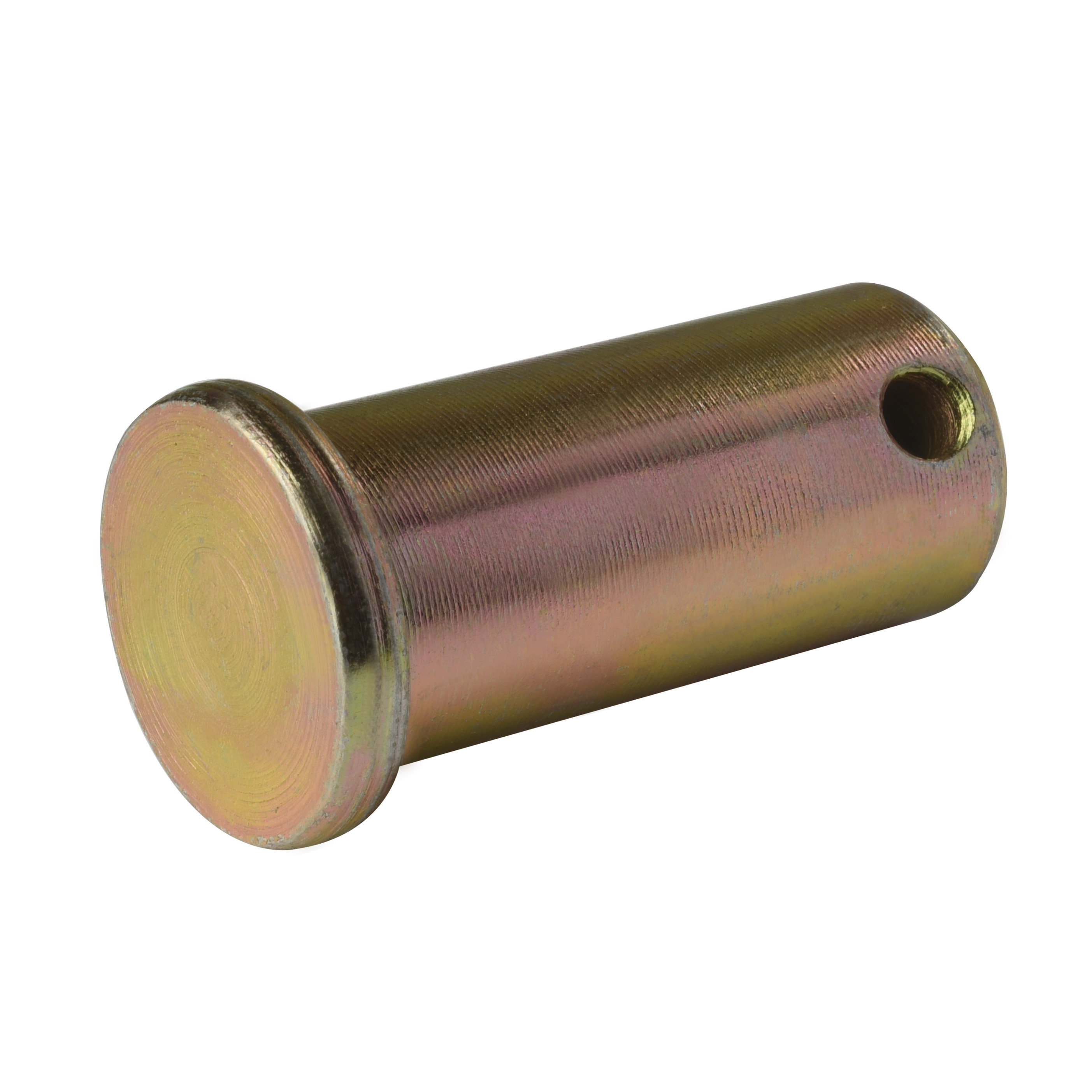

DIN1444 EN22341 ISO 2341 Clevis Pin With Head Carbon Steel Zinc Plated

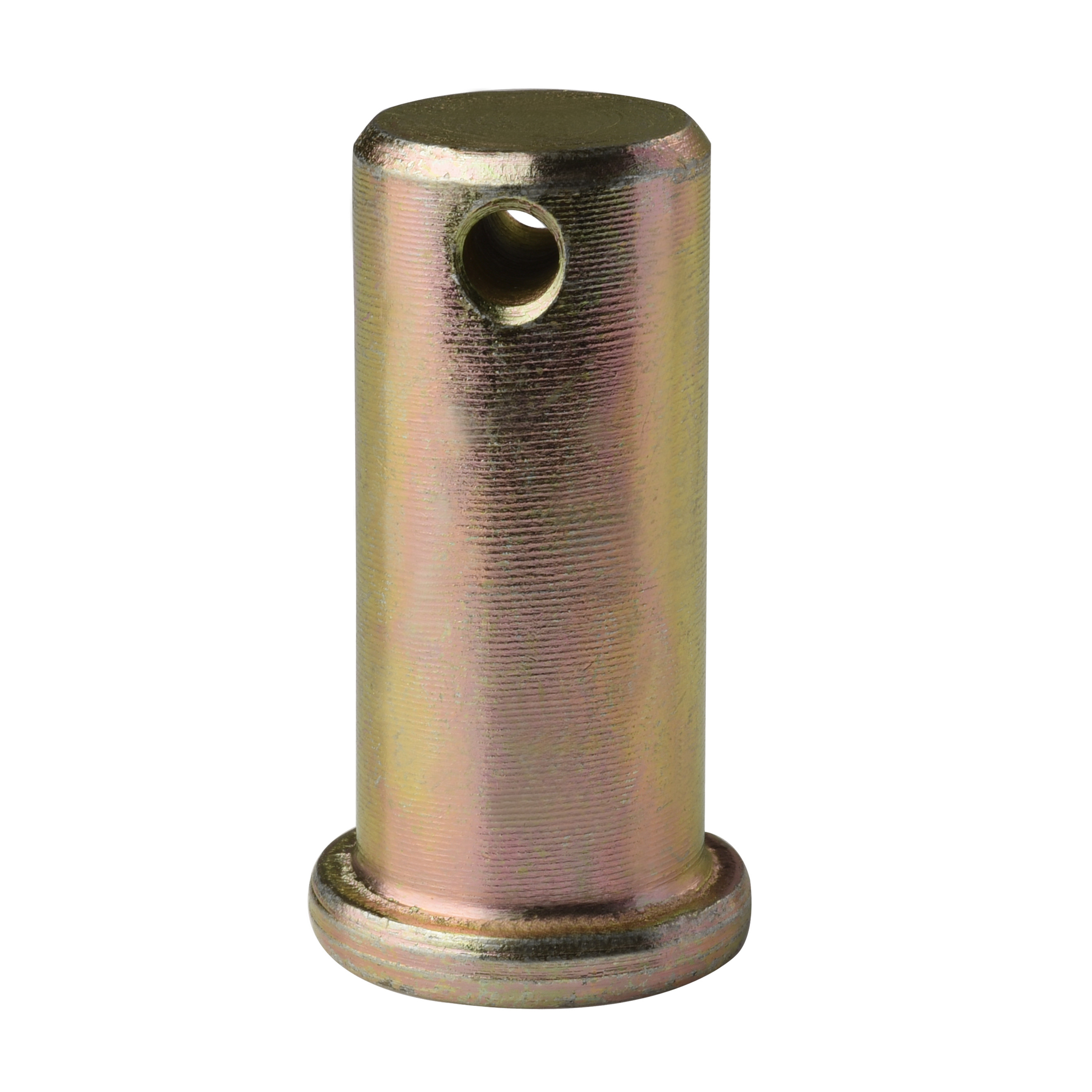

  • DIN1444 EN22341 ISO 2341 Clevis Pin With Head Carbon Steel Zinc Plated

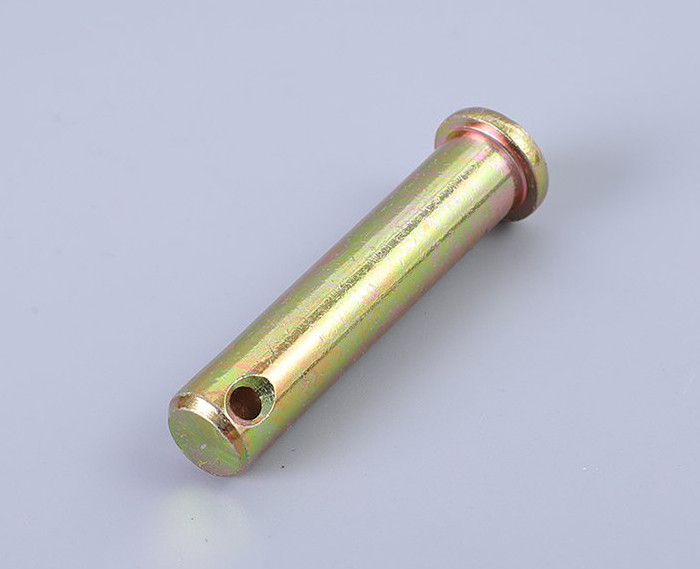

  • DIN1444 EN22341 ISO 2341 Clevis Pin With Head Carbon Steel Zinc Plated

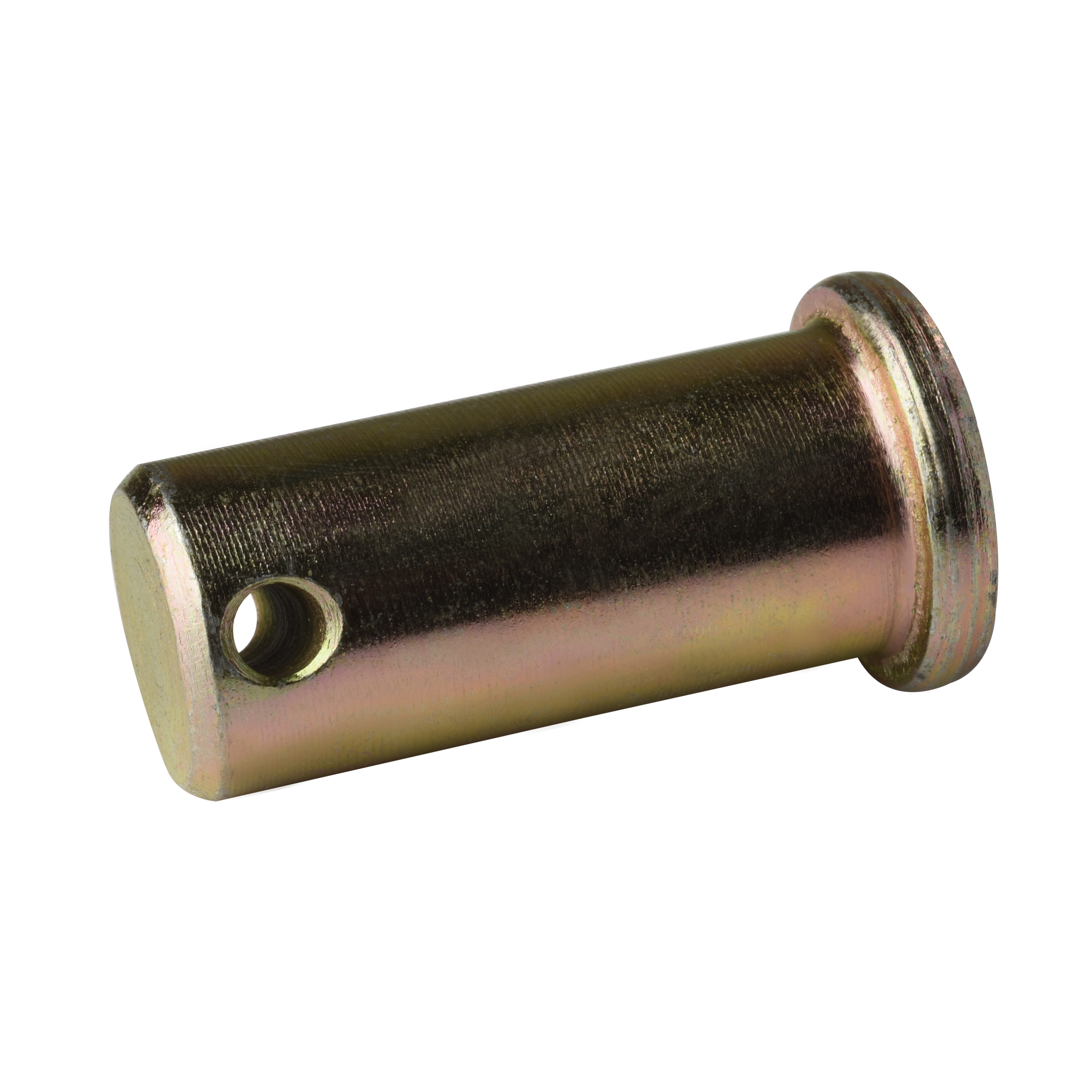

  • DIN1444 EN22341 ISO 2341 Clevis Pin With Head Carbon Steel Zinc Plated

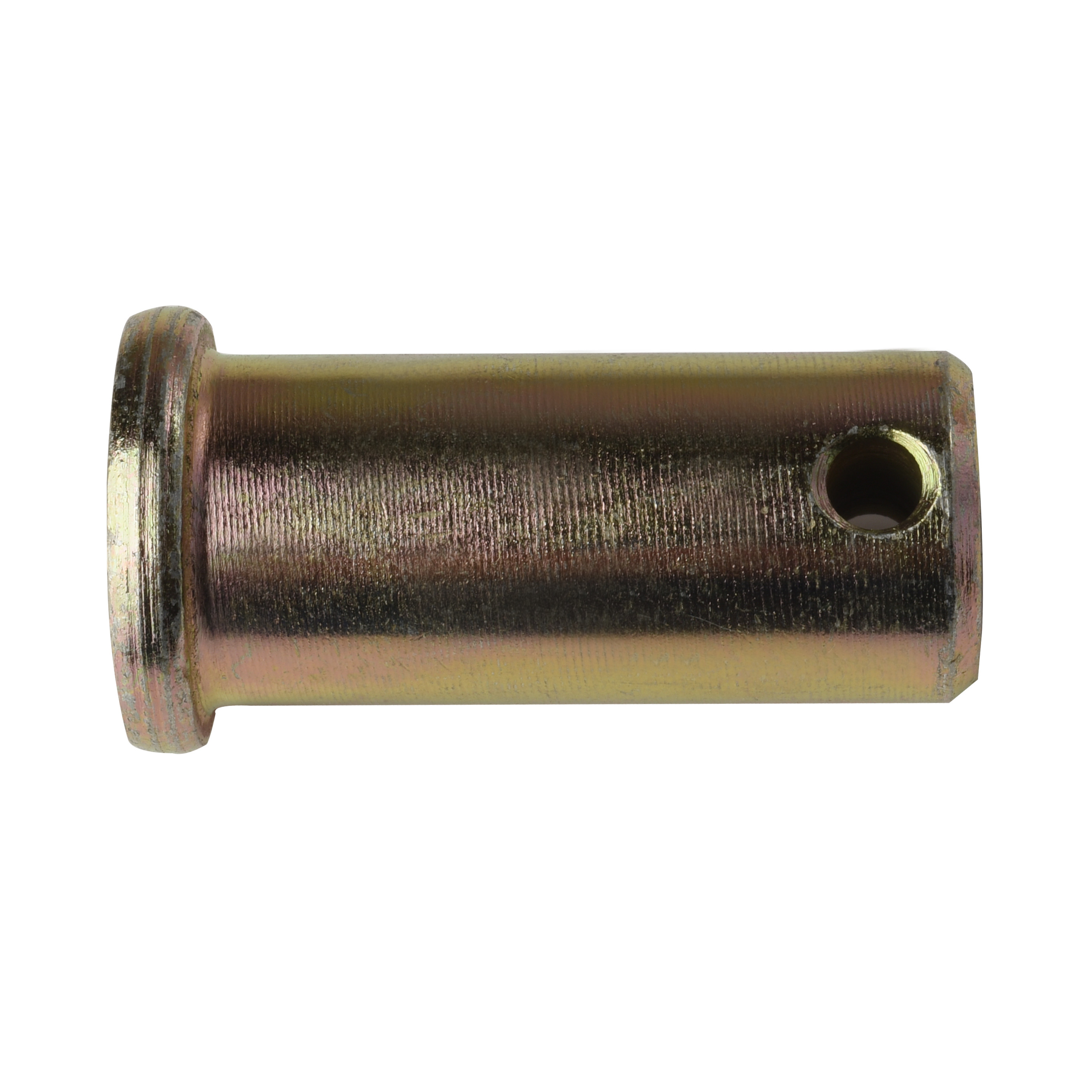

  • DIN1444 EN22341 ISO 2341 Clevis Pin With Head Carbon Steel Zinc Plated
  • DIN1444 EN22341 ISO 2341 Clevis Pin With Head Carbon Steel Zinc Plated
Place of Origin JIANGSU PROVINCE CHINA
Brand Name YingYan
Certification ISO9000
Model Number Φ10-Φ16
Minimum Order Quantity 1000pieces
Price Negotiable
Packaging Details Small Boxes, Plastic Bags, Bulk in Cartons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Clevis Pins With Head Standard GB/DIN/ASME/EN/ISO&etc.
Material Carbon Steel 35K Surface Treatment Zinc Plate
Color Yellow Grade 8.8
Size Φ10-Φ16/According Your Requirements Length 25-40mm/According Your Requirements
Highlight

Carbon Steel ISO 2341 Clevis Pin

,

Zinc Plated ISO 2341 Clevis Pin

,

Carbon Steel Pins DIN1444
You can tick the products you need and communicate with us in the message board.
specifications and models Nominal diameter of thread(mm) Length(mm) inventory
Φ10*25 Φ10 25 10000
Φ10*32 Φ10 32 10000
Φ16*35 Φ16 35 10000
Φ16*45 Φ16 45 10000
If you have more needs, please contact customer service 1 1 1
Leave a Message
specifications and models Nominal diameter of thread(mm) Length(mm) inventory
Product Description

DIN1444 ISO2341 EN22341 Carbon Steel 35K Zinc-Plated Yellow Zinc Class 8.8 Clevis Pins With Head Φ10-Φ16



DIN1444 EN22341 ISO 2341 Clevis Pin With Head Carbon Steel Zinc Plated 0

Nominal Diameter 3 4 5 6 8 10 12
d
d max 3 4 5 6 8 10 12
min 2.94 3.925 4.925 5.925 7.91 9.91 11.89
dk max 5 6 8 10 14 18 20
min 4.7 5.7 7.64 9.64 13.57 17.57 19.48
d1 max 0.94 1.14 1.34 1.74 2.14 3.38 3.38
min 0.8 1 1.2 1.6 2 3.2 3.2
k Nominal Size 1 1 1.6 2 3 4 4
max 1.125 1.125 1.725 2.125 3.125 4.15 4.15
min 0.875 0.875 1.475 1.875 2.875 3.85 3.85
Lh min 1.6 2.2 2.9 3.2 3.5 4.5 5.5
Nominal Diameter 14 16 18 20 22 24 27
d
d max 14 16 18 20 22 24 27
min 13.89 15.89 17.89 19.87 21.87 23.87 26.87
dk max 22 25 28 30 33 36 40
min 21.48 24.48 27.48 29.48 32.38 35.38 39.38
d1 max 4.18 4.18 5.18 5.18 5.18 6.52 6.52
min 4 4 5 5 5 6.3 6.3
k Nominal Size 4 4.5 5 5 5.5 6 6
max 4.15 4.65 5.15 5.15 5.65 6.15 6.15
min 3.85 4.35 4.85 4.85 5.35 5.85 5.85
Lh min 6 6 7 8 8 9 9
Nominal Diameter 30 33 36 40 45 50 55
d
d max 30 33 36 40 45 50 55
min 29.87 32.84 35.84 39.84 44.84 49.84 54.81
dk max 44 47 50 55 60 66 72
min 43.38 46.38 49.38 54.26 59.26 65.26 71.26
d1 max 8.22 8.22 8.22 8.22 10.22 10.22 10.22
min 8 8 8 8 10 10 10
k Nominal Size 8 8 8 8 9 9 11
max 8.18 8.18 8.18 8.18 9.18 9.18 11.215
min 7.82 7.82 7.82 7.82 8.82 8.82 10.785
Lh min 10 10 10 10 12 12 14
Nominal Diameter 60 70 80 90 100
d
d max 60 70 80 90 100
min 59.81 69.81 79.81 89.78 99.78
dk max 78 90 100 110 120
min 77.26 89.13 99.13 109.13 119.13
d1 max 10.22 13.27 13.27 13.27 13.27
min 10 13 13 13 13
k Nominal Size 12 13 13 13 13
max 12.215 13.215 13.215 13.215 13.215
min 11.785 12.785 12.785 12.785 12.785
Lh min 14 16 16 16 16







Characteristics:

  • The headed pin shafts DIN1444 are designed in accordance with international standards, featuring a wide range of sizes that offer various options to meet requirements.
  • They can be made from a variety of materials, including stainless steel grades 304, 316, 2205, 2507, 310S, 904L, as well as carbon steel, to cater to diverse working environments and requirements.
  • DIN1444 pins are primarily employed for connecting two shafts or equipment that feature holes. Once the connection is made using the pin, a split pin is inserted into the hole located at the end of the pin to secure the workpiece in place.

Advantages:

  • The reason why DIN1444 is suitable for various industrial environments and application scenarios is due to its diverse range of specifications and abundant material options.
  • The combination of pins and cotter pins ensures the stability and reliability of the connection.
  • The production and manufacturing of hinge pins strictly adhere to the DIN standards, ensuring precise dimensions, guaranteeing product quality and interchangeability, reducing the difficulties of maintenance and replacement, and ultimately saving costs.

Application Scenarios:

  • Pump, Valve, and Piping Systems: In fluid transport systems, DIN1444 pins are widely used for connecting and fixing pumps, valves, and pipes.
  • Petrochemical Industry: Due to the special working environment in the petrochemical industry, corrosion-resistant and high-strength connectors are needed. DIN1444 pins become an ideal choice because of their diverse material options and stable connection methods.
  • Marine Engineering Equipment: In marine engineering equipment, DIN1444 pins provide a stable and reliable connection, ensuring that the equipment works properly in harsh marine environments.
  • Wind Power Generation: DIN1444 pins also play a vital role in connecting and fixing equipment in wind power generation.
