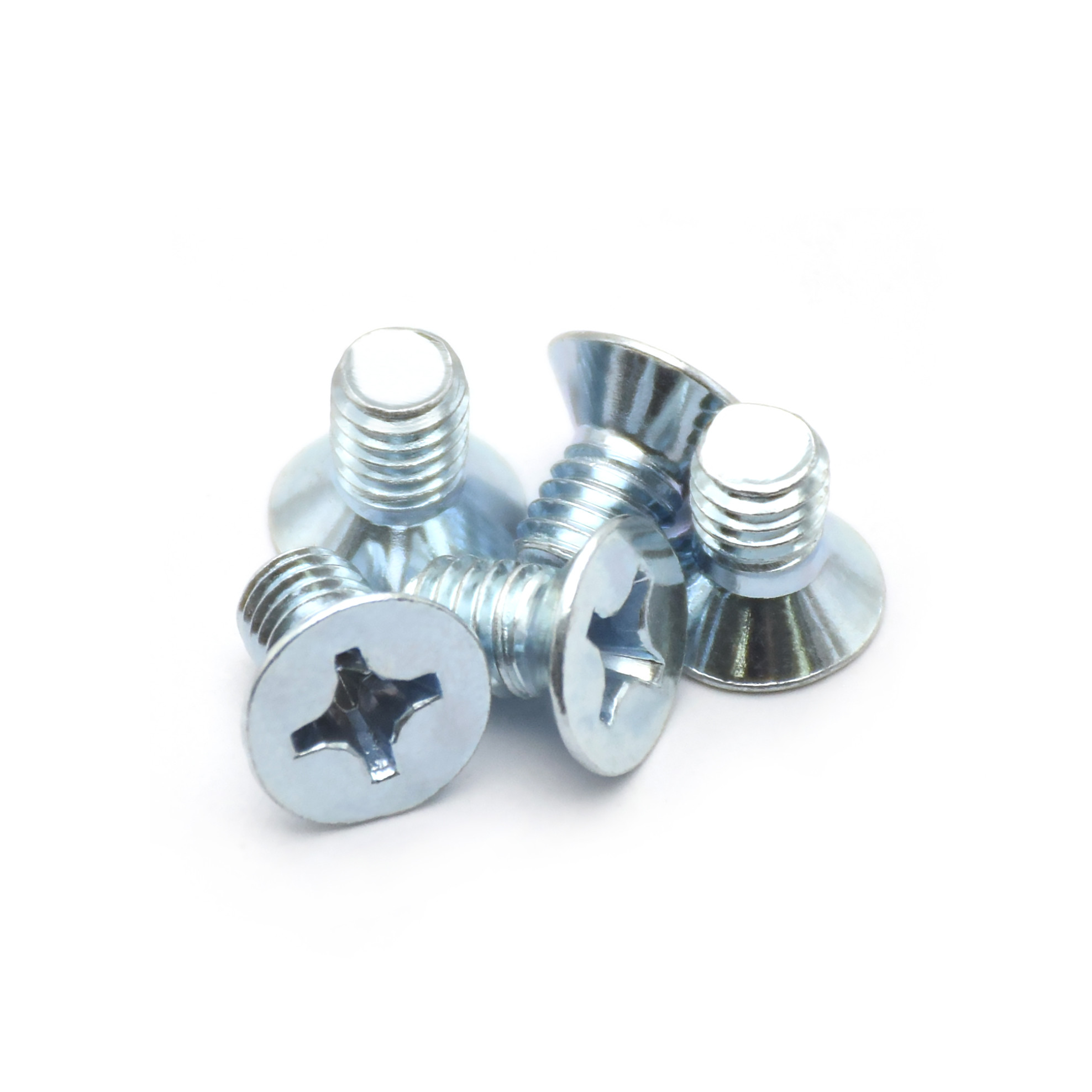

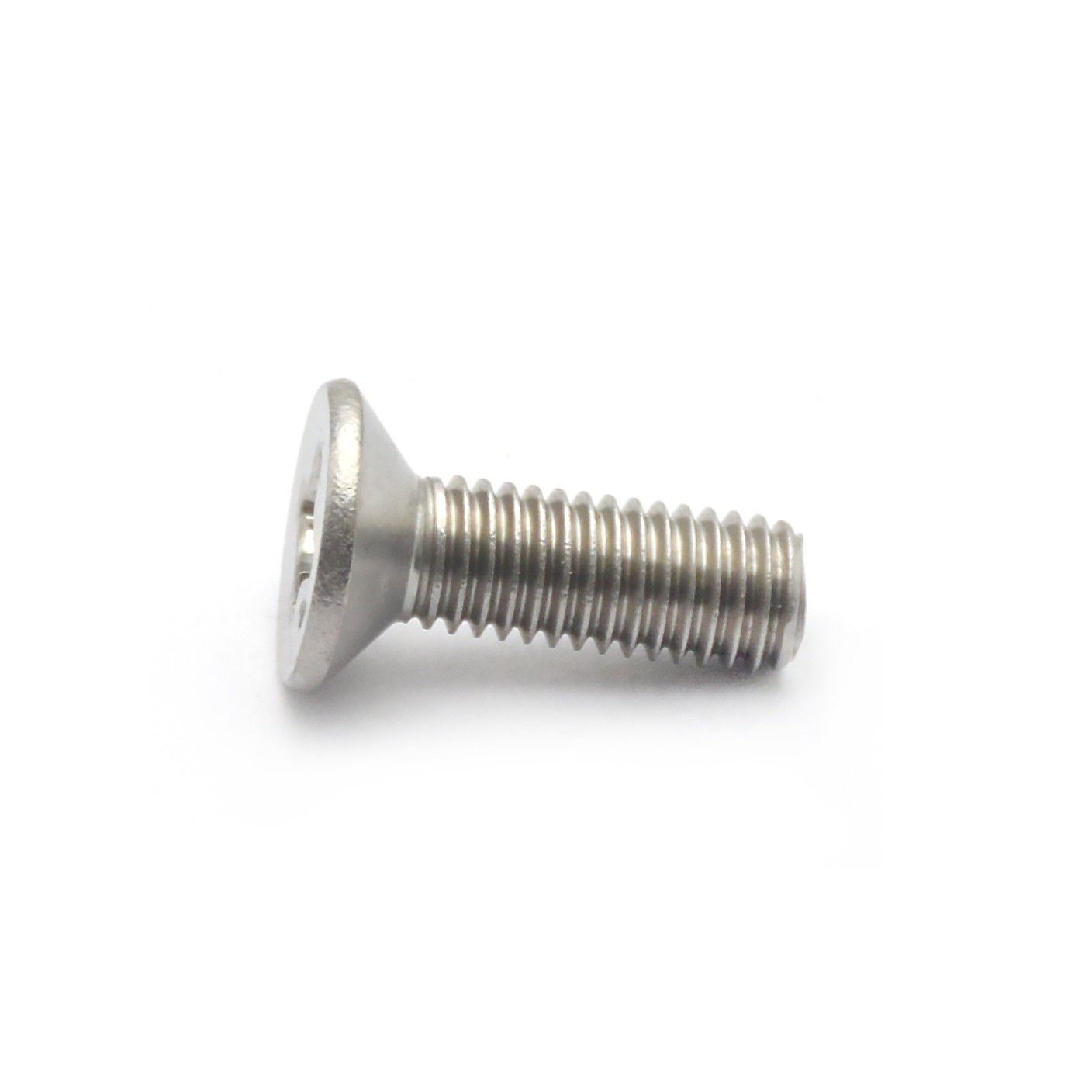

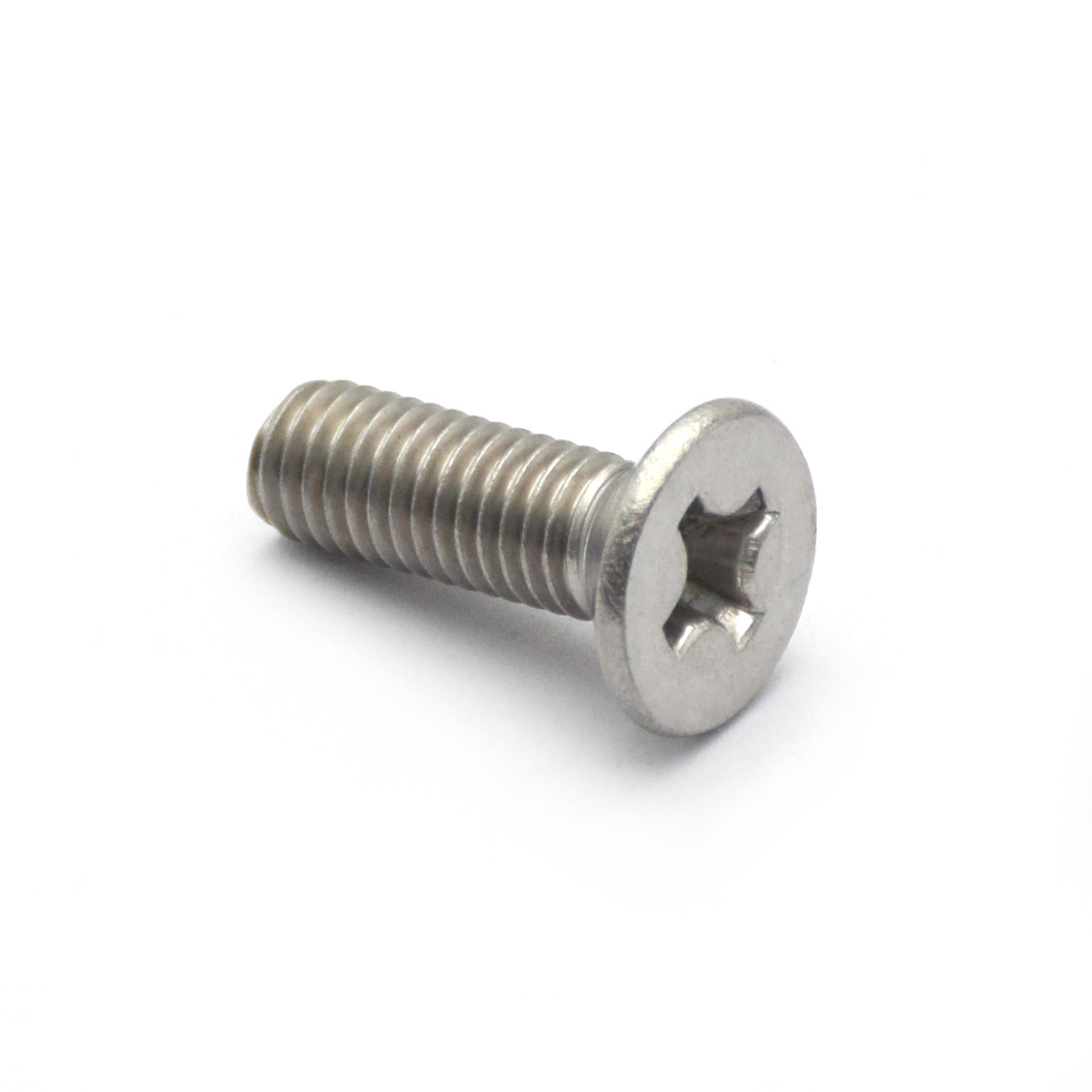

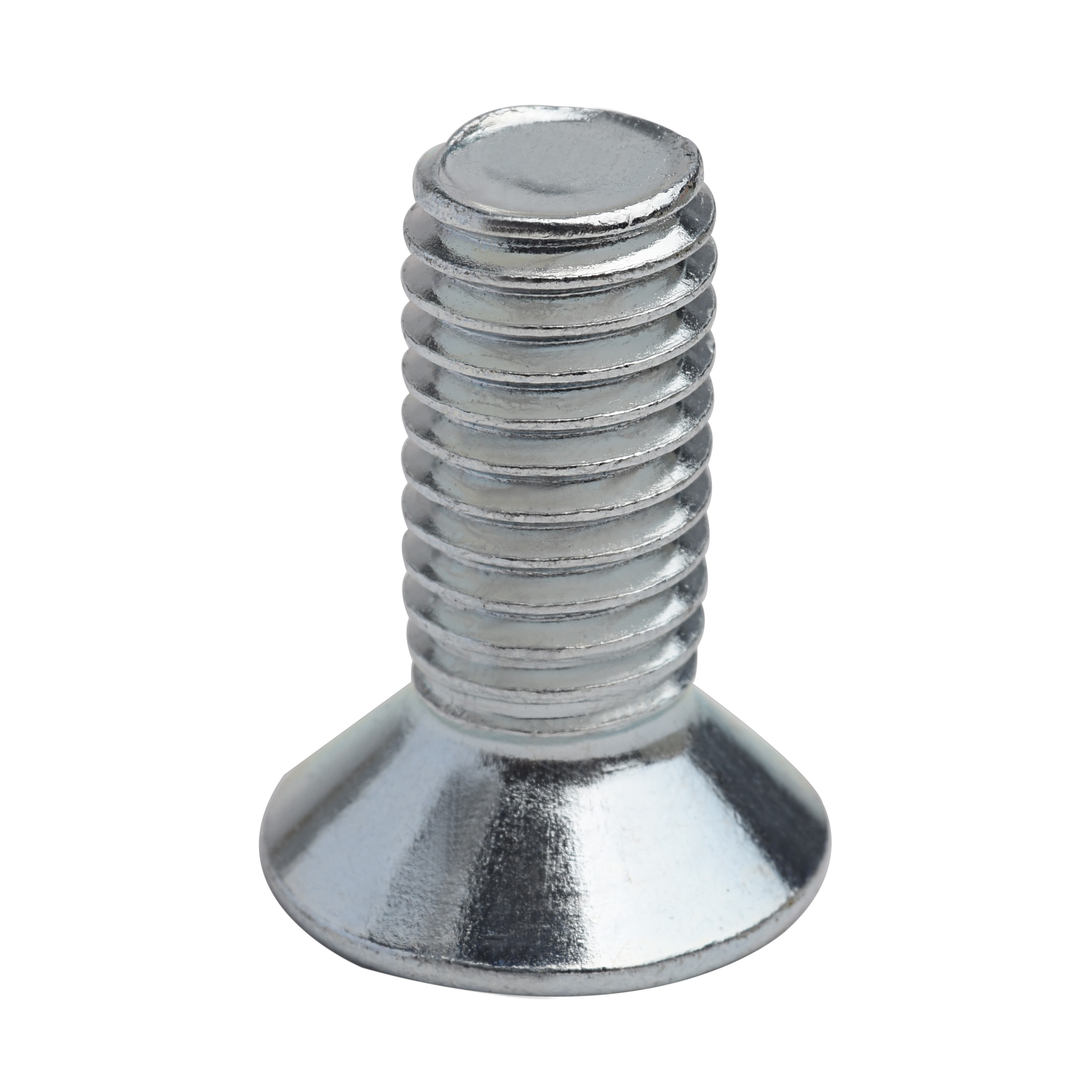

Zinc Plated Cross Recessed Countersunk Head Screws Class 4.8 8.8 DIN965

DIN965 Cross Recessed Countersunk Head Screws Stainless Steel SUS304 / Carbon Steel Class 4.8 8.8

• Standardized Design: DIN965 refers to cross-recessed countersunk head screws that adhere to strict German industrial standards, ensuring product quality and performance stability.

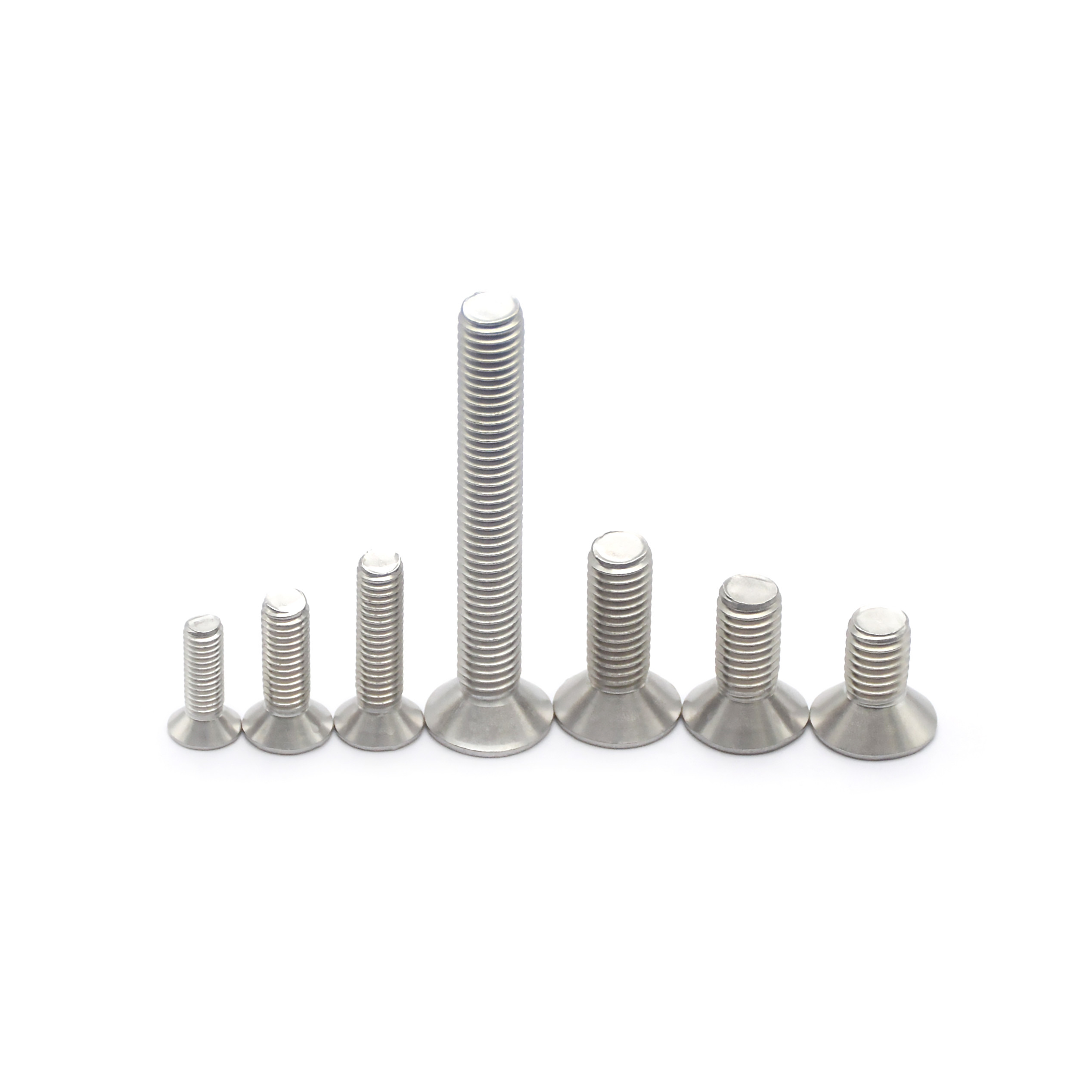

• Variety of Sizes: These screws come in multiple sizes such as M1.6, M2, M2.5, etc., catering to the fixing needs of materials with different thicknesses and hardness.
• Cross Recess Design: The cross-shaped recess in the screw head allows for easy tightening with conventional screwdrivers or power tools, improving installation efficiency.
• Countersunk Design: The screw head can fully sink into the material surface, maintaining a flat installation surface and avoiding potential damage or inconvenience caused by protruding screw heads.

Cross Recessed Countersunk Head Screws DIN965 Advantages

• Easy Installation: Thanks to its cross recess and countersunk design, these screws are very convenient and efficient to install.
• Aesthetic and Practical: The countersunk design ensures that the screw head does not protrude from the installation surface, maintaining an overall aesthetic appearance while the cross recess facilitates easy operation.
• Wide Applicability: With a range of sizes and material options, these screws are suitable for various environments and application needs.
• High-Quality Assurance: Adhering to DIN standards guarantees the high quality and reliability of the product.

Cross Recessed Countersunk Head Screws DIN965 Application Scenarios

• Mechanical Manufacturing: Used for fixing and connecting various components in mechanical equipment.
• Construction Engineering: Can be used to fix materials such as boards and decorative strips.
• Furniture Production: Utilized in furniture manufacturing to connect wood or other materials, ensuring structural stability.
• Electronic Equipment: Applied to fix circuit boards or other components inside the equipment, ensuring stable equipment operation.
• Decoration and Renovation: Due to its aesthetic appeal, it is often used in decoration and renovation projects.
•

• Thread Size d	M1.6 M2 M2.5 M3 (M3.5) M4 M5 M6 M8 M10
  P Pitch a max dk max=nominal size min k max r max x max Socket No. M1 M2	0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5 0.7 0.8 0.9 1 1.2 1.4 1.6 2 2.5 3 3 3.8 4.7 5.6 6.5 7.5 9.2 11 14.5 18 2.75 3.5 4.4 5.3 6.14 7.14 8.84 10.57 14.07 17.57 0.96 1.2 1.5 1.65 1.93 2.2 2.5 3 4 5 0.4 0.5 0.7 0.8 0.95 1 1.3 1.6 2 2.5 0.9 1 1.1 1.25 1.5 1.75 2 2.5 3.2 3.8 0 1 1 1 2 2 2 3 4 4 1.7 2.35 2.7 2.9 3.9 4.4 4.6 6.6 8.7 9.6 1.8 2.2 2.5 2.8 3.7 4 4.4 6.1 8.5 9.4
