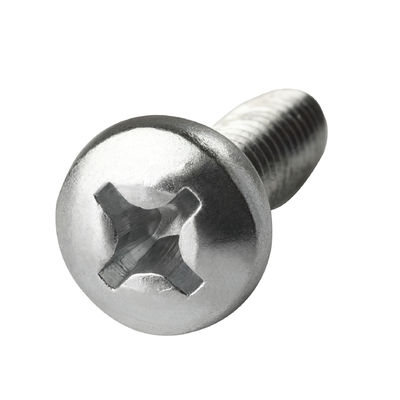

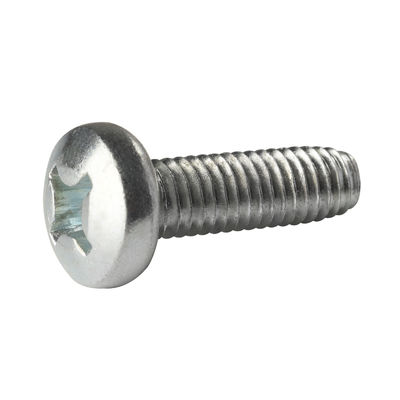

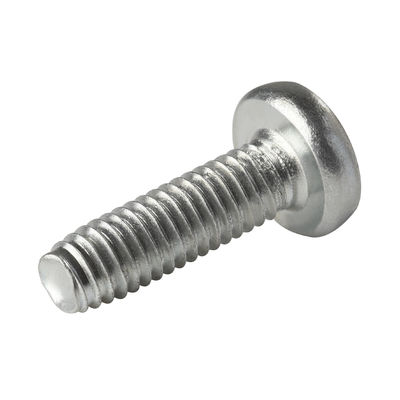

DIN7500 CE Carbon / Stainless Steel Taptite Screws Cross Recessed Pan Head Thread Rolling Screws

  • DIN7500 CE Carbon / Stainless Steel Taptite Screws Cross Recessed Pan Head Thread Rolling Screws
  • DIN7500 CE Carbon / Stainless Steel Taptite Screws Cross Recessed Pan Head Thread Rolling Screws
  • DIN7500 CE Carbon / Stainless Steel Taptite Screws Cross Recessed Pan Head Thread Rolling Screws
Place of Origin JIANG SU PROVINCE CHINA
Brand Name YingYan
Certification ISO9000
Model Number M6
Minimum Order Quantity 1000pieces
Price Negotiable
Packaging Details Small Boxes, Plastic Bags, Bulk in Cartons,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hex Socket Cone Point Set Screw Grub Screw Standard GB/DIN/ASME/EN/ISO&etc.
Surface Treatment Plain, Black, Zinc Plated/according To Your Requirement Color Black,Blue-White,Silver
Materials Carbon Steel/stainless Steel, Etc Size M6/according To Your Requirements
Highlight

Stainless Steel Taptite Screws

,

Carbon Steel Taptite Screws

,

Pan Head Thread Rolling Screws
Leave a Message
Product Description

DIN7500 Carbon Steel And Stainless Steel Taptite Screws Cross Recessed Pan Head Thread Rolling Screws DIN7500 CE

DIN7500 CE Carbon / Stainless Steel Taptite Screws Cross Recessed Pan Head Thread Rolling Screws 0

Thread Size
d
M2 M2.5 M3 M3.5 M4 M5 M6 M8 M10
P Pitch
b min
dk max=nominal size
min
k max=nominal size
min
Socket No.
m Form H
Form Z
0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5
25 25 25 38 38 38 38 38 38
4.0 5.0 5.6 7.00 8.00 9.50 12.00 16.00 20.00
3.7 4.7 5.3 6.64 7.64 9.14 11.57 15.57 19.48
1.60 2.10 2.40 2.60 3.10 3.70 4.6 6.0 7.50
1.46 1.96 2.26 2.46 2.92 3.52 4.3 5.7 7.14
0 1 1 2 2 2 3 4 4
1.9 2.7 3 3.9 4.4 4.9 6.9 9 10.1
2.1 2.6 2.8 3.9 4.3 4.7 6.7 8.8 9.9

Features:

Cross recessed pan head thread rolling screws exhibit a combination of attributes that sets them apart. The cross recess, also known as a Phillips head, provides secure fastening with its cross-shaped slot that resists cam-out. The pan head design, with its flat top and slightly rounded edges, offers a large bearing surface and an aesthetic appearance. The thread rolling process creates strong and reliable threads.

Advantages:

  1. To reduce the risk of cam-out and stripping, this screw adopts a cross recess design to provide a secure and reliable connection.
  2. The threads created by the thread rolling process, which are stronger than traditional cut threads, achieve a more secure fastening effect.
  3. Due to the rolling process used in the production of this screw, which compresses the material rather than cutting it, material fatigue is reduced and durability is increased.
  4. To accommodate applications that require a flush or slightly protruding head, a pan head design with a large bearing surface has been adopted.

Application Scenarios:

Cross recessed pan head thread rolling screws are widely used in numerous applications where secure fastening and durability are crucial. Common applications include:

  1. Electronics and Appliances: For securing internal components and parts in electronic devices and appliances.
  2. Furniture and Fixtures: For fastening pieces of furniture, cabinets, and other woodworking projects.
  3. Automotive Industry: For fastening components in vehicles, such as body panels, interior trim, and engine parts.
  4. General Assembly: For various assembly tasks requiring a secure and reliable fastening solution.
