DIN558 EN ISO 4018 Hexagon Head Full Thread Screws Class 4.8 Carbon Steel Q195

  • DIN558 EN ISO 4018 Hexagon Head Full Thread Screws Class 4.8 Carbon Steel Q195
Place of Origin JIANG SU PROVINCE CHINA
Brand Name YingYan
Certification ISO9000
Model Number M8*100
Minimum Order Quantity 1000pieces
Price Negotiable
Packaging Details Small Boxes, Plastic Bags, Bulk in Cartons,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hexagon Head Screws-product Grade C Standard GB/DIN/ASME/EN/ISO&etc.
Material Carbon Steel Q195 Color Yellow
Surface Treatment Zinc Plated Grade 4.8
Size M8/according To Your Requirements Length 100mm/accroding Your Requirements
Highlight

DIN558 Full Thread Screws

,

Hexagon Head Full Thread Screws

,

Carbon Steel Hexagon Head Screw
Leave a Message
Product Description

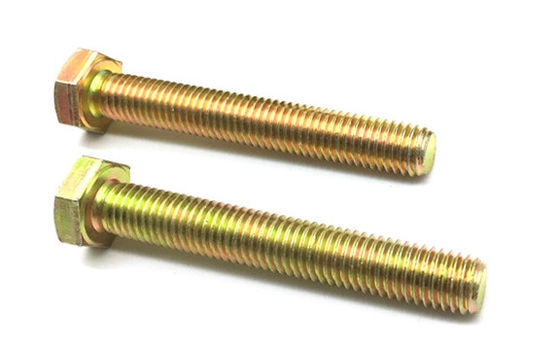

DIN558 EN ISO 4018 Hexagon Head Screws-Product Grade C Full Thread Class 4.8 Carbon Steel Q195 Zinc Plating







DIN558 EN ISO 4018 Hexagon Head Full Thread Screws Class 4.8 Carbon Steel Q195 0

Screw Thread
d
M5 M6 M8 M10 M12 M16 M20 M24 M30 M36
P Pitch
a max
c max
da max
dw min
e min
k Nominal Size
min
max
k1 min
r min
s max=nominal size
min
0.8 1 1.25 1.5 1.75 2 2.5 3 3.5 4
3.2 4 5 6 7 8 10 12 14 16
0.5 0.5 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.8
6 7.2 10.2 12.2 14.7 18.7 24.4 28.4 35.4 42.4
6.7 8.7 11.4 15.4 17.2 22 27.7 33.2 42.7 51.1
8.63 10.89 14.2 18.72 20.88 26.17 32.95 39.55 50.85 60.79
3.5 4 5.3 6.4 7.5 10 12.5 15 18.7 22.5
3.12 3.62 4.92 5.95 7.05 9.25 11.6 14.1 17.65 21.45
3.88 4.38 5.68 6.85 7.95 10.75 13.4 15.9 19.75 23.55
2.2 2.5 3.45 4.2 4.95 6.5 8.1 9.9 12.4 15
0.2 0.25 0.4 0.4 0.6 0.6 0.8 0.8 1 1
8 10 13 17 19 24 30 36 46 55
7.64 9.64 12.57 16.57 18.48 23.16 29.16 35 45 53.8



Features:

  1. The hexagonal head design is adopted at the head, which facilitates the loading and unloading with standard tools such as wrenches or screwdrivers.
  2. Possessing excellent mechanical properties with high tensile strength and yield strength, they can be used in high-load and high-stress environments.
  3. Designed and manufactured strictly in accordance with DIN standards, the screws have tightly controlled dimensions and tolerances, ensuring high assembly accuracy and strong interchangeability.
  4. Crafted from premium materials such as carbon steel and stainless steel, these screws exhibit remarkable corrosion resistance and durability.

Advantages:

  1. Crafted with high-strength materials and precision manufacturing, these screws offer stable connection performance, resisting loosening or breakage.
  2. The hexagonal head design simplifies and expedites the installation and removal process, allowing for the use of standard tools and enhancing work efficiency.
  3. Possessing excellent mechanical properties with high tensile strength and yield strength, they can be used in high-load and high-stress environments.
  4. Designed and manufactured strictly in accordance with DIN standards, the screws have tightly controlled dimensions and tolerances, ensuring high assembly accuracy and strong interchangeability.

Application Scenarios:

  1. Mechanical Engineering: In the mechanical engineering field, these screws are widely used for connecting and fixing various equipment and machines, such as automobiles, aircraft, ships, and heavy machinery.
  2. Construction Industry: The screws are commonly employed in the construction industry for connecting and fixing steel structures, bridges, tunnels, and other projects, ensuring structural stability and safety.
  3. Electronic Equipment Manufacturing: They are used to secure circuit boards, chassis, enclosures, and other components in electronic devices, enhancing device stability and reliability.
  4. Other Industries: Additionally, these screws find applications in chemical, petroleum, power, metallurgy, and other industries for connecting and fixing various equipment and pipelines.
