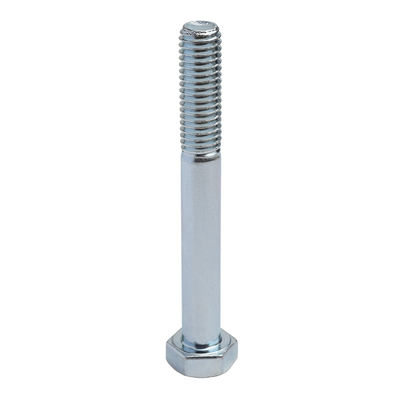

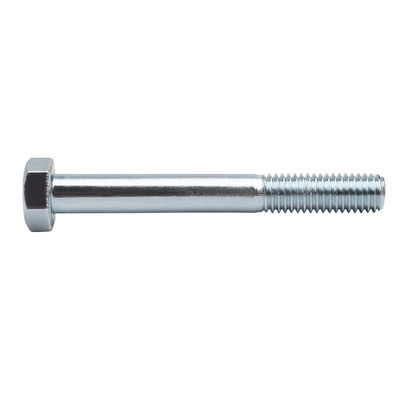

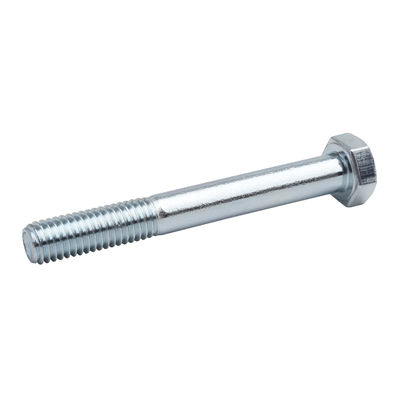

DIN 601 558 EN ISO 4016 4018 Hexagon Head Screws Carbon Steel Q195 Zinc Plating

  • DIN 601 558 EN ISO 4016 4018 Hexagon Head Screws Carbon Steel Q195 Zinc Plating
  • DIN 601 558 EN ISO 4016 4018 Hexagon Head Screws Carbon Steel Q195 Zinc Plating
  • DIN 601 558 EN ISO 4016 4018 Hexagon Head Screws Carbon Steel Q195 Zinc Plating
  • DIN 601 558 EN ISO 4016 4018 Hexagon Head Screws Carbon Steel Q195 Zinc Plating
Place of Origin JIANG SU PROVINCE CHINA
Brand Name YingYan
Certification ISO9000
Model Number M5-M16
Minimum Order Quantity 1000pieces
Price Negotiable
Packaging Details Small Boxes, Plastic Bags, Bulk in Cartons,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hexagon Head Screws-product Grade C Half/full Thread Standard GB/DIN/ASME/EN/ISO&etc.
Material Carbon Steel Q195 Color Blue-white
Surface Treatment Zinc Plated Grade 4.8
Size M5-M16/according To Your Requirements Length 60mm-110mm/accroding Your Requirements
Highlight

Zinc Plating Hexagon Head Screws

,

DIN 601 Hexagon Head Screws

,

Zinc Plating Hex Head Screw
Leave a Message
Product Description

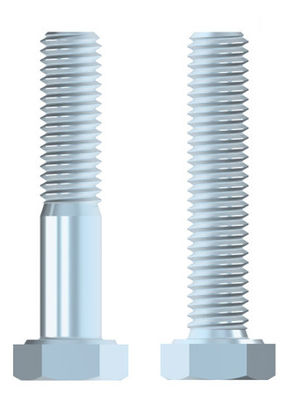

DIN 601 558 EN ISO 4016 4018 Hexagon Head Screws-Product Grade C Class 4.8 Carbon Steel Q195 Zinc Plating






DIN601DIN 601 558 EN ISO 4016 4018 Hexagon Head Screws Carbon Steel Q195 Zinc Plating 0

Screw Thread M5 M6 M8 M10 M12 (M14) M16 (M18) M20 (M22) M24 (M27)
d
P Pitch 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3 3
b L≤125 16 18 22 26 30 34 38 42 46 50 54 60
125＜L≤200 22 24 28 32 36 40 44 48 52 56 60 66
L＞200 35 37 41 45 49 53 57 61 65 69 73 79
c max 0.5 0.5 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.8 0.8
da max 6 7.2 10.2 12.2 14.7 16.7 18.7 21.2 24.4 26.4 28.4 32.4
ds max 5.48 6.48 8.58 10.58 12.7 14.7 16.7 18.7 20.84 22.84 24.84 27.84
min 4.52 5.52 7.42 9.42 11.3 13.3 15.3 17.3 19.16 21.16 23.16 26.16
dw min 6.74 8.74 11.47 14.47 16.47 19.15 22 24.85 27.7 31.35 33.25 38
e min 8.63 10.89 14.2 17.59 19.85 22.78 26.17 29.56 32.95 37.29 39.55 45.2
k Nominal Size 3.5 4 5.3 6.4 7.5 8.8 10 11.5 12.5 14 15 17
max 3.875 4.375 5.675 6.85 7.95 9.25 10.75 12.4 13.4 14.9 15.9 17.9
min 3.125 3.625 4.925 5.95 7.05 8.35 9.25 10.6 11.6 13.1 14.1 16.1
k1 min 2.19 2.54 3.45 4.17 4.94 5.85 6.48 7.42 8.12 9.17 9.87 11.27
r min 0.2 0.25 0.4 0.4 0.6 0.6 0.6 0.6 0.8 0.8 0.8 1
s max=nominal size 8 10 13 16 18 21 24 27 30 34 36 41
min 7.64 9.64 12.57 15.57 17.57 20.16 23.16 26.16 29.16 33 35 40
Length of Thread b   - - - - - - - - - - - -
Screw Thread M30 (M33) M36 (M39) M42 (M45) M48 (M52) M56 (M60) M64
d
P Pitch 3.5 3.5 4 4 4.5 4.5 5 5 5.5 5.5 6
b L≤125 66 - - - - - - - - - -
125＜L≤200 72 78 84 90 96 102 108 116 - - -
L＞200 85 91 97 103 109 115 121 129 137 145 153
c max 0.8 0.8 0.8 1 1 1 1 1 1 1 1
da max 35.4 38.4 42.4 45.4 48.6 52.6 56.6 62.6 67 71 75
ds max 30.84 34 37 40 43 46 49 53.2 57.2 61.2 65.2
min 29.16 32 35 38 41 44 47 50.8 54.8 58.8 62.8
dw min 42.75 46.55 51.11 55.86 59.95 64.7 69.45 74.2 78.66 83.41 88.16
e min 50.85 55.37 60.79 66.44 71.3 76.95 82.6 88.25 93.56 99.21 104.86
k Nominal Size 18.7 21 22.5 25 26 28 30 33 35 38 40
max 19.75 22.05 23.55 26.05 27.05 29.05 31.05 34.25 36.25 39.25 41.25
min 17.65 19.95 21.45 23.95 24.95 26.95 28.95 31.75 33.75 36.75 38.75
k1 min 12.36 13.97 15.02 16.77 17.47 18.87 20.27 22.23 23.63 25.73 27.13
r min 1 1 1 1 1.2 1.2 1.6 1.6 2 2 2
s max=nominal size 46 50 55 60 65 70 75 80 85 90 95
min 45 49 53.8 58.8 63.1 68.1 73.1 78.1 82.8 87.8 92.8
Length of Thread b   - - - - - - - - - - -


  DIN558   DIN 601 558 EN ISO 4016 4018 Hexagon Head Screws Carbon Steel Q195 Zinc Plating 1

Screw Thread
d
M5 M6 M8 M10 M12 M16 M20 M24 M30 M36
P Pitch
a max
c max
da max
dw min
e min
k Nominal Size
min
max
k1 min
r min
s max=nominal size
min
0.8 1 1.25 1.5 1.75 2 2.5 3 3.5 4
3.2 4 5 6 7 8 10 12 14 16
0.5 0.5 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.8
6 7.2 10.2 12.2 14.7 18.7 24.4 28.4 35.4 42.4
6.7 8.7 11.4 15.4 17.2 22 27.7 33.2 42.7 51.1
8.63 10.89 14.2 18.72 20.88 26.17 32.95 39.55 50.85 60.79
3.5 4 5.3 6.4 7.5 10 12.5 15 18.7 22.5
3.12 3.62 4.92 5.95 7.05 9.25 11.6 14.1 17.65 21.45
3.88 4.38 5.68 6.85 7.95 10.75 13.4 15.9 19.75 23.55
2.2 2.5 3.45 4.2 4.95 6.5 8.1 9.9 12.4 15
0.2 0.25 0.4 0.4 0.6 0.6 0.8 0.8 1 1
8 10 13 17 19 24 30 36 46 55
7.64 9.64 12.57 16.57 18.48 23.16 29.16 35 45 53.8
Weight of per 1000 steel products(≈kg)
- - - - - - - - - -











Features:

  1. The hexagonal head design is adopted at the head, which facilitates the loading and unloading with standard tools such as wrenches or screwdrivers.
  2. Possessing excellent mechanical properties with high tensile strength and yield strength, they can be used in high-load and high-stress environments.
  3. Designed and manufactured strictly in accordance with DIN standards, the screws have tightly controlled dimensions and tolerances, ensuring high assembly accuracy and strong interchangeability.
  4. Crafted from premium materials such as carbon steel and stainless steel, these screws exhibit remarkable corrosion resistance and durability.

Advantages:

  1. Crafted with high-strength materials and precision manufacturing, these screws offer stable connection performance, resisting loosening or breakage.
  2. The hexagonal head design simplifies and expedites the installation and removal process, allowing for the use of standard tools and enhancing work efficiency.
  3. Possessing excellent mechanical properties with high tensile strength and yield strength, they can be used in high-load and high-stress environments.
  4. Designed and manufactured strictly in accordance with DIN standards, the screws have tightly controlled dimensions and tolerances, ensuring high assembly accuracy and strong interchangeability..

Application Scenarios:

  1. Mechanical Engineering: In the mechanical engineering field, these screws are widely used for connecting and fixing various equipment and machines, such as automobiles, aircraft, ships, and heavy machinery.
  2. Construction Industry: The screws are commonly employed in the construction industry for connecting and fixing steel structures, bridges, tunnels, and other projects, ensuring structural stability and safety.
  3. Electronic Equipment Manufacturing: They are used to secure circuit boards, chassis, enclosures, and other components in electronic devices, enhancing device stability and reliability.
  4. Other Industries: Additionally, these screws find applications in chemical, petroleum, power, metallurgy, and other industries for connecting and fixing various equipment and pipelines.







Tags:

Flange Head Bolts

Hexagon Head Bolt

Hexagon Flange Bolt
