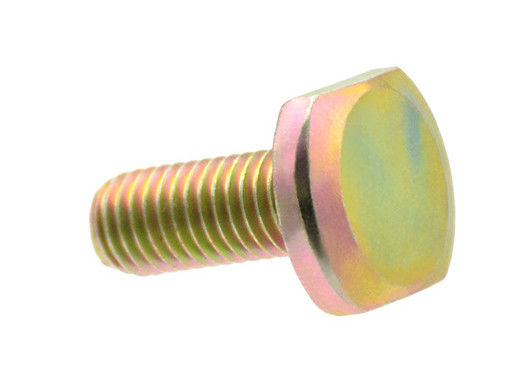

Yellow Zinc Plated T Slot Bolts 25mm Length Carbon Steel 35K

  • Yellow Zinc Plated T Slot Bolts 25mm Length Carbon Steel 35K
Place of Origin JIANG SU PROVINCE CHINA
Brand Name YingYan
Certification ISO9000
Model Number M8*25
Minimum Order Quantity 1000pieces
Price Negotiable
Packaging Details Small Boxes, Plastic Bags, Bulk in Cartons,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name T-Bolt Bolts For T-Slot Standard GB/DIN/ASME/EN/ISO&etc.
Material Carbon Steel 35k Color Yellow
Surface Treatment Zinc Plated Grade 8.8
Size M8/according To Your Requirements Length 25mm/accroding Your Requirements
Highlight

T Slot Bolts 25mm

,

Carbon Steel T Slot Bolts

,

Zinc Plated T Head Bolt
Leave a Message
Product Description

T-Bolt Bolts For T-Slot Yellow Zinc-Plated Class 8.8 Carbon Steel 35K

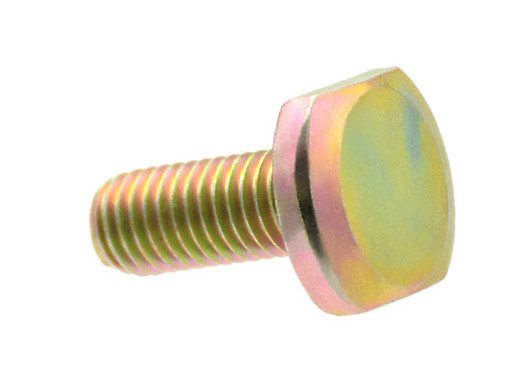

Yellow Zinc Plated T Slot Bolts 25mm Length Carbon Steel 35K 0

Thread Size
d 		M5 M6 M8 M10 M10 M16 M20 M24 M30 M36 M42 M48
P Pitch 0.8 1 1.25 1.5 1.75 2 2.5 3 3.5 4 4.5 5
b L≤125 16 18 22 26 30 38 46 54 66 78 / /
125＜L≤200 / / 28 32 36 44 52 60 72 84 96 108
L＞200 / / / / / 57 65 73 85 97 109 121
ds max 5 6 8 10 12 16 20 24 30 36 42 48
min 4.7 5.7 7.64 9.64 11.57 15.57 19.48 23.48 29.48 35.38 41.38 47.38
D 12 16 20 25 30 38 46 58 75 85 95 105
k max 4.24 5.24 6.24 7.29 8.89 11.95 14.35 16.35 20.42 24.42 28.42 32.5
min 3.76 4.76 5.76 6.71 8.31 11.25 13.65 15.65 19.58 23.58 27.58 31.5
h 2.8 3.4 4.1 4.8 6.5 9 10.4 11.8 14.5 18.5 22 26
s max 9 12 14 18 22 28 34 44 56 67 76 86
min 8.64 11.57 13.57 17.57 21.16 27.16 33 43 54.8 65.1 74.1 83.8
x max 2 2.5 3.2 3.8 4.2 5 6.3 7.5 8.8 10 11.3 12.5





Characteristics:

  1. T-slot bolts are specifically designed for T-slots and can be closely fitted with connecting parts, which is beautiful and safe.
  2. Crafted from high-strength materials, these bolts possess the capability to withstand significant tensile and shear forces.
  3. Thanks to their specialized design tailored for T-slots, they can be installed into the slots quickly and securely, thereby enhancing work efficiency.
  4. Manufactured to standard specifications, these bolts offer excellent assurance in terms of dimensions and quality, thereby ensuring good universality and interchangeability.

Advantages:

  1. T-slot bolts provide a stable and effective connection, ensuring the safe and stable operation of mechanical equipment.
  2. Designed specifically for T-slots, they facilitate easy installation and removal, making adjustments to equipment or structures a breeze.
  3. Crafted from high-strength materials, these bolts boast excellent durability and a prolonged service life.
  4. These T-slot bolts can be utilized in a wide range of applications that require T-slot connections, including machine tools, fixtures, workbenches, and more, demonstrating their versatility and broad applicability.

Uses:

  1. Machining: In the field of machining, T-Slot bolts are often used to fix workpieces, fixtures, etc., ensuring stability and precision during the machining process.
  2. Equipment Assembly: They are used to connect various components in mechanical equipment assembly, maintaining the overall stability of the equipment.
  3. Industrial Manufacturing: Widely used in various industrial manufacturing fields such as automobile manufacturing, shipbuilding, aerospace, etc.
  4. Other Fields: Also applicable in construction, bridges, and other occasions that require high-strength connections.
