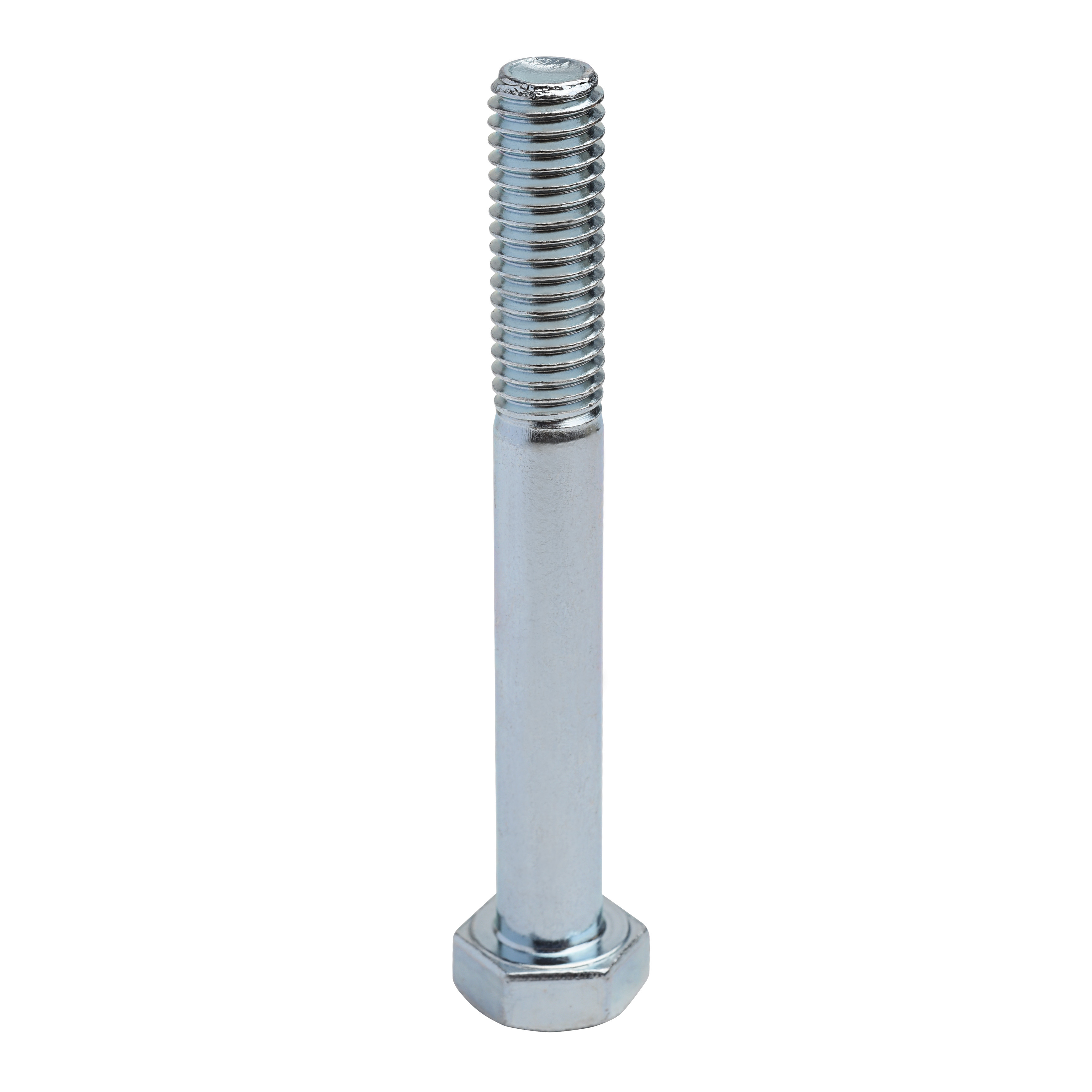

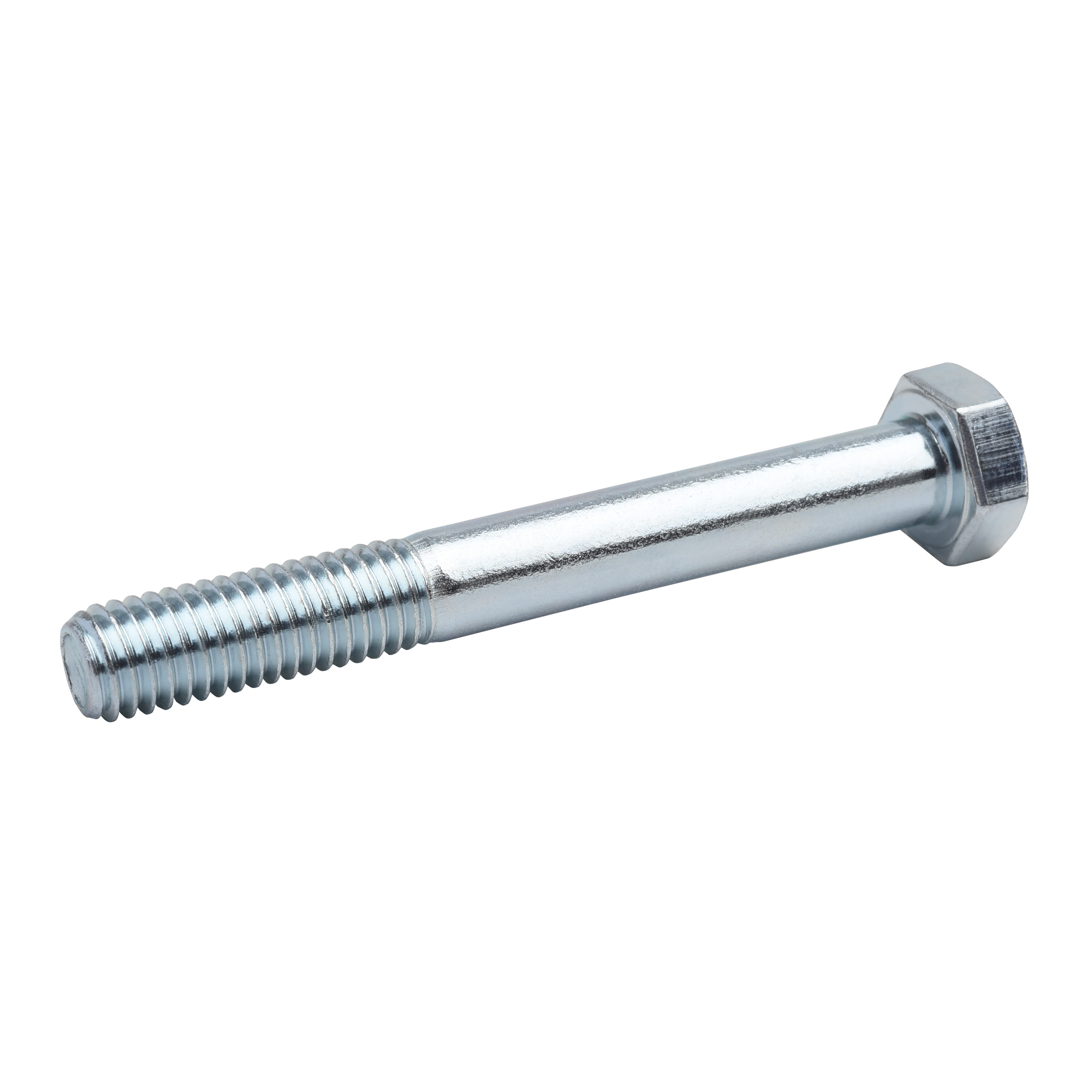

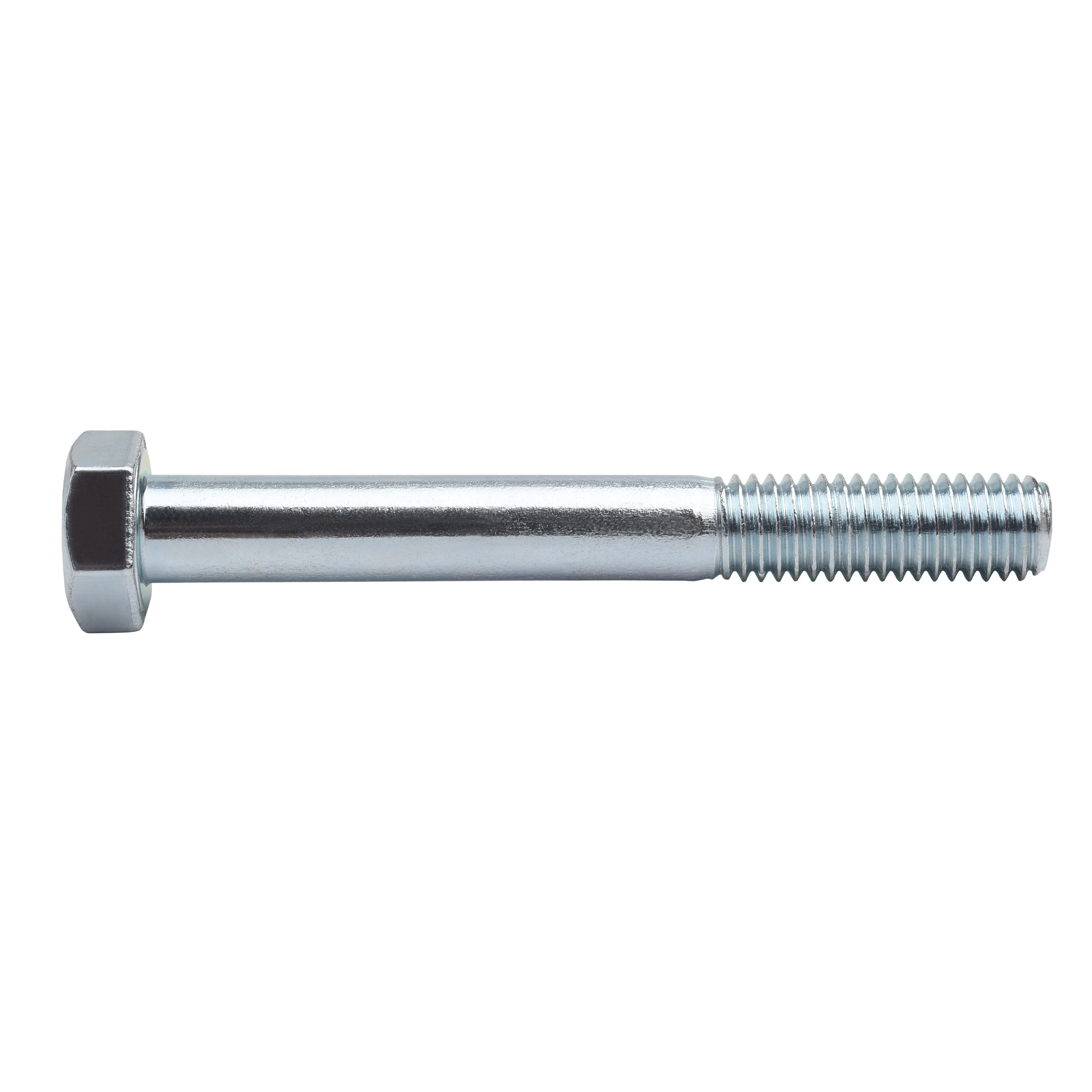

DIN 601 Hexagon Head Bolts Zinc / Galvanization / Plain Half Threaded Carbon Steel

  • DIN 601 Hexagon Head Bolts Zinc / Galvanization / Plain Half Threaded Carbon Steel
  • DIN 601 Hexagon Head Bolts Zinc / Galvanization / Plain Half Threaded Carbon Steel
  • DIN 601 Hexagon Head Bolts Zinc / Galvanization / Plain Half Threaded Carbon Steel
Place of Origin JIANG SU PROVINCE CHINA
Brand Name YingYan
Certification ISO9000
Model Number M4-M24
Minimum Order Quantity 1000pieces
Price Negotiable
Packaging Details Small Boxes, Plastic Bags, Bulk in Cartons,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hexagon Head Bolts - Product Grade C Half Threaded Standard GB/DIN/ASME/EN/ISO&etc.
Surface Treatment Plain, Black, Zinc Plated/according To Your Requirement Size M4-M24
Length 45mm-280mm Grade 4.8
Materials Carbon Steel Q195 Head Type Hexagonal Head
Surface Plain, Galvanzied
Highlight

DIN 601 Hexagon Head Bolts

,

Galvanization Hexagon Head Bolts

,

Half Threaded DIN 601 Bolts
You can tick the products you need and communicate with us in the message board.
Size Nominal diameter of thread Length/mm inventory
Blue white zinc(Full threaded) 8-10 65-110 1
M8*65 M8 65 1000000
M10*110 M10 110 1000000
Blue white zinc(Half threaded) 5-16 60-110 1
M5*60 M5 60 1000000
M16*110 M16 110 1000000
If you have more needs, please contact customer service 1 1 1
Leave a Message
Size Nominal diameter of thread Length/mm inventory
Product Description

DIN 601 Hexagon Head Bolts - Product Grade C Yellow zinc/Galvanization/Plain Half threaded Carbon steel Class 4.8





DIN 601 Hexagon Head Bolts Zinc / Galvanization / Plain Half Threaded Carbon Steel 0



Screw Thread M5 M6 M8 M10 M12 M16 M20 M24 (M27)
d
P Pitch 0.8 1 1.25 1.5 1.75 2 2.5 3 3
b L≤125 16 18 22 26 30 38 46 54 60
125<L≤200 22 24 28 32 36 44 52 60 66
L>200 35 37 41 45 49 57 65 73 79
c max 0.5 0.5 0.6 0.6 0.6 0.8 0.8 0.8 0.8
da max 6 7.2 10.2 12.2 14.7 18.7 24.4 28.4 32.4
dw min 6.7 8.7 11.4 15.4 17.2 22 27.7 33.2 38
ds Nominal Size 5 6 8 10 12 16 20 24 27
min 4.52 5.52 7.42 9.42 11.3 15.3 19.16 23.16 26.16
max 5.48 6.48 8.58 10.58 12.7 16.7 20.84 24.84 27.84
e min 8.63 10.89 14.2 18.72 20.88 26.17 32.95 39.55 45.2
k Nominal Size 3.5 4 5.3 6.4 7.5 10 12.5 15 17
min 3.12 3.62 4.92 5.95 7.05 9.25 11.6 14.1 16.1
max 3.88 4.38 5.68 6.85 7.95 10.75 13.4 15.9 17.9
k1 min 2.2 2.5 3.45 4.2 4.95 6.5 8.1 9.9 11.3
r min 0.2 0.25 0.4 0.4 0.6 0.6 0.8 0.8 1
s max=nominal size 8 10 13 17 19 24 30 36 41
min 7.64 9.64 12.57 16.57 18.48 23.16 29.16 35 40
Weight of per 1000 steel products(≈kg) - - - - - - - - -
Length of Thread b - - - - - - - - -
Screw Thread M30 (M33) M36 (M39) M42 (M45) M48 (M52)
d
P Pitch 3.5 3.5 4 4 4.5 4.5 5 5
b L≤125 66 72 78 84 - - - -
125<L≤200 72 78 84 90 96 102 108 116
L>200 85 91 97 103 109 115 121 129
c max 0.8 0.8 0.8 1 1 1 1 1
da max 35.4 38.4 42.4 45.4 48.6 52.6 56.6 62.6
dw min 42.7 46.5 51.1 55.9 59.9 64.7 69.4 74.2
ds Nominal Size 30 33 36 39 42 45 48 52
min 29.16 32 35 38 41 44 47 51
max 30.84 34 37 40 43 46 49 53
e min 50.85 55.37 60.79 66.44 71.3 76.95 82.6 88.25
k Nominal Size 18.7 21 22.5 25 26 28 30 33
min 17.65 19.95 21.45 23.95 24.95 26.95 28.95 31.75
max 19.75 22.05 23.53 26.05 27.05 29.05 31.05 34.25
k1 min 12.4 14 15 16.8 17.5 18.9 20.2 22.2
r min 1 1 1 1 1.2 1.2 1.6 1.6
s max=nominal size 46 50 55 60 65 70 75 80
min 45 49 53.8 58.8 63.1 68.1 73.1 78.1
Weight of per 1000 steel products(≈kg) - - - - - - - -
Length of Thread b - - - - - - - -







Features:

  1. The hexagonal head design facilitates easy installation and removal of the screws using standard tools such as wrenches or screwdrivers.
  2. The screws possess excellent mechanical properties, including high tensile strength and yield strength, making them suitable for applications requiring resistance to high loads and stresses.
  3. Designed in accordance with DIN standards, the dimensions and tolerances of the screws are strictly controlled, ensuring the interchangeability and assembly accuracy of the products.
  4. The excellent corrosion resistance and durability of these screws are attributed to their manufacture from high-quality materials such as carbon steel, stainless steel, and others.

Advantages:

  1. Thanks to their high strength and precise manufacturing, these screws ensure stable connection performance with high reliability, effectively resisting loosening or breakage.
  2. The standard hexagonal head design of the screws allows for quick and easy installation and removal using wrenches or sockets, thereby enhancing work efficiency.
  3. The excellent corrosion resistance and durability of these screws are attributed to their manufacture from high-quality materials such as carbon steel, stainless steel, and others.
  4. Designed in compliance with DIN standards, these screws exhibit excellent interchangeability, ensuring seamless compatibility with various brands and models of equipment.

Application Scenarios:

  1. Mechanical Engineering: In the mechanical engineering field, these screws are widely used for connecting and fixing various equipment and machines, such as automobiles, aircraft, ships, and heavy machinery.
  2. Construction Industry: The screws are commonly employed in the construction industry for connecting and fixing steel structures, bridges, tunnels, and other projects, ensuring structural stability and safety.
  3. Electronic Equipment Manufacturing: They are used to secure circuit boards, chassis, enclosures, and other components in electronic devices, enhancing device stability and reliability.
  4. Other Industries: Additionally, these screws find applications in chemical, petroleum, power, metallurgy, and other industries for connecting and fixing various equipment and pipelines.
