DIN931-1 ISO4014 Industrial Bolt Partially Threaded Dacromet Silver Gray Class 8.8 10.9

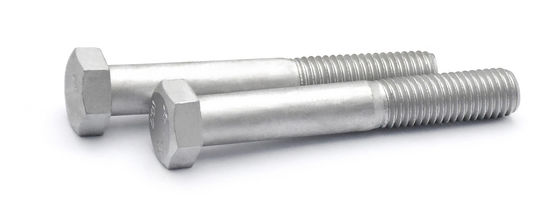

  • DIN931-1 ISO4014 Industrial Bolt Partially Threaded Dacromet Silver Gray Class 8.8 10.9

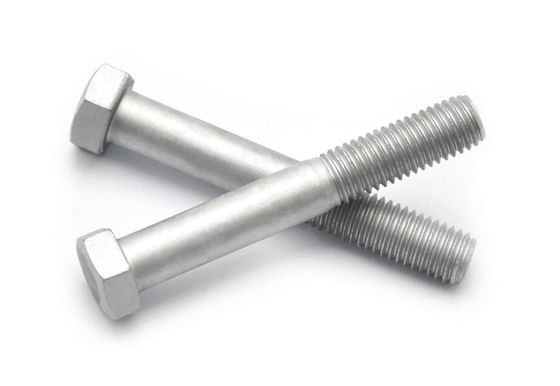

  • DIN931-1 ISO4014 Industrial Bolt Partially Threaded Dacromet Silver Gray Class 8.8 10.9
Place of Origin JIANG SU PROVINCE CHINA
Brand Name YingYan
Certification ISO9000
Model Number M8-M33
Minimum Order Quantity 1000pieces
Price Negotiable
Packaging Details Small Boxes, Plastic Bags, Bulk in Cartons,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hexagon Head Bolts Partially Threaded Standard GB/DIN/ASME/EN/ISO&etc.
Materials Alloy Steel 40Cr/Carbon Steel 35K Surface Treatment Dacromet
Grade 8.8/10.9 Color Silver-gray
Size M8-M33/According Your Requirements Length 45mm-200mm/According Your Requirements
Highlight

ISO4014 Industrial Bolt

,

Partially Threaded Industrial Bolt

,

Class 8.8 Hexagonal Bolt
You can tick the products you need and communicate with us in the message board.
specifications and models Nominal diameter of thread(mm) Length(mm) inventory
Carbon steel 35K Grade8.8 8-33 45-170 1
M8*45 8 45 10000
M10*140 10 140 10000
M12*65 12 65 10000
M12*70 12 70 10000
M12*75 12 75 10000
M16*50 16 50 10000
M16*65 16 65 10000
M16*70 16 70 10000
M16*75 16 75 10000
M16*85 16 85 100000
M16*110 16 110 10000
M16*140 16 140 10000
M20*140 20 140 10000
M20*160 20 160 100000
M22*90 22 90 100000
M24*90 24 90 10000
M24*100 24 100 10000
M24*140 24 140 10000
M27*90 27 90 10000
M33*170 33 170 10000
Alloy Steel 40Cr Grade 10.9 14-20 80 1
M14*80 14 80 10000
M20*80 20 80 10000
If you have more needs, please contact customer service 1 1 1
Leave a Message
specifications and models Nominal diameter of thread(mm) Length(mm) inventory
Product Description

DIN931-1 ISO4014 Hexagon Head Bolts Partially Threaded Dacromet Silver-Gray Carbon Steel/Alloy Steel Class 8.8 10.9

Advantages of DIN 931-1 Bolts with Dacromet Coating

  1. High Corrosion Resistance: The Dacromet coating provides excellent corrosion resistance, especially in harsh environmental conditions such as high humidity, high salinity, or chemical corrosion.

  2. High Temperature Stability: The Dacromet coating remains stable at relatively high temperatures (up to 300°C) without deteriorating like some other coatings.

  3. Good Adhesion and Abrasion Resistance: The Dacromet coating exhibits strong adhesion to the base material and also possesses good abrasion resistance.

  4. Environmental Friendliness: Compared to traditional zinc plating or paint coatings, the Dacromet coating is more environmentally friendly during production and usage as it does not contain harmful substances like chromates.

Characteristics of DIN 931-1 Bolts with Dacromet Coating

  1. Uniformity: The Dacromet coating can uniformly cover the entire surface of the bolt, including hard-to-reach corners and crevices.

  2. Color: The Dacromet coating typically has a silver-gray or silver-white appearance, making the bolts visually easier to identify.

  3. Versatility: The Dacromet coating is suitable for various metal substrates such as steel, copper, aluminum, and more.

Applications of DIN 931-1 Bolts with Dacromet Coating

  1. Automotive Industry: Bolts are extensively used in automotive manufacturing, especially in chassis, engine, and body structures. The Dacromet coating provides the necessary corrosion protection to ensure long-term reliability of vehicles under various climatic conditions.

  2. Construction and Bridge Engineering: In construction and bridge projects, bolts are used to connect steel structures and concrete components. The Dacromet coating protects these bolts from environmental and chemical corrosion.

  3. Marine Engineering: Metal components are prone to corrosion from seawater and salt spray in marine environments. The Dacromet coating offers essential protection to bolts and other metal components to ensure their long-term stability in harsh conditions.

  4. Electrical and Electronic Equipment: Bolts are used to connect and secure various components in electrical and electronic devices. The Dacromet coating prevents the bolts from electrochemical corrosion, ensuring stable operation of the equipment over a long period.

In summary, DIN 931-1 bolts with a Dacromet coating exhibit excellent corrosion resistance, high temperature stability, adhesion, abrasion resistance, and other advantages, making them suitable for various environments and industries.

DIN931-1 ISO4014 Industrial Bolt Partially Threaded Dacromet Silver Gray Class 8.8 10.9 0

Thread Size
d		 M1.6 M2 M2.5 M3 M3.5 M4 M5 M6 M7 M8 M10 M12
P Thread Pitch 0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1 1.25 1.5 1.75
b Ref. L≤125 9 10 11 12 13 14 16 18 20 22 26 30
125＜L≤200 - - - - - - 22 24 26 28 32 36
L＞200 - - - - - - - - - - 45 49
c min 0.1 0.1 0.1 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15
max 0.25 0.25 0.25 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.6
da max 2 2.6 3.1 3.6 4.1 4.7 5.7 6.8 7.8 9.2 11.2 13.7
ds max=nominal size 1.6 2 2.5 3 3.5 4 5 6 7 8 10 12
min Grade A 1.46 1.86 2.36 2.86 3.32 3.82 4.82 5.82 6.78 7.78 9.78 11.73
Grade B - - - - - - - - - - - -
dw min Grade A 2.4 3.2 4.1 4.6 5.1 5.9 6.9 8.9 9.8 11.6 15.6 17.4
Grade B - - - - - - - - - - - -
e min Grade A 3.41 4.32 5.45 6.01 6.58 7.66 8.79 11.05 12.12 14.38 18.9 21.1
Grade B - - - - - - - - - - - -
k Nominal Size 1.1 1.4 1.7 2 2.4 2.8 3.5 4 4.8 5.3 6.4 7.5
Grade A min 0.98 1.28 1.58 1.88 2.28 2.68 3.35 3.85 4.65 5.15 6.22 7.32
max 1.22 1.52 1.82 2.12 2.52 2.92 3.65 4.15 4.95 5.45 6.58 7.68
Grade B min - - - - - - - - - - - -
max - - - - - - - - - - - -
k1 min 0.7 0.9 1.1 1.3 1.6 1.9 2.28 2.63 3.19 3.54 4.28 5.05
r min 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.25 0.25 0.4 0.4 0.6
s max=nominal size 3.2 4 5 5.5 6 7 8 10 11 13 17 19
min Grade A 3.02 3.82 4.82 5.32 5.82 6.78 7.78 9.78 10.73 12.73 16.73 18.67
Grade B - - - - - - - - - - - -
Length of Thread b       - - - - - - - - - - - -



Thread Size
d		 (M14) M16 (M18) M20 (M22) M24 (M27) M30 (M33) M36 (M39)
P Thread Pitch 2 2 2.5 2.5 2.5 3 3 3.5 3.5 4 4
b Ref. L≤125 34 38 42 46 50 54 60 66 72 78 84
125＜L≤200 40 44 48 52 56 60 66 72 78 84 90
L＞200 53 57 61 65 69 73 79 85 91 97 103
c min 0.15 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3
max 0.6 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 1
da max 15.7 17.7 20.2 22.4 24.4 26.4 30.4 33.4 36.4 39.4 42.4
ds max=nominal size 14 16 18 20 22 24 27 30 33 36 39
min Grade A 13.73 15.73 17.73 19.67 21.67 23.67 - - - - -
Grade B - 15.57 17.57 19.48 21.48 23.48 26.48 29.48 32.38 35.38 38.38
dw min Grade A 20.5 22.5 25.3 28.2 30 33.6 - - - - -
Grade B - 22 24.8 27.7 29.5 33.2 38 42.7 46.6 51.1 55.9
e min Grade A 24.49 26.75 30.14 33.53 35.72 39.98 - - - - -
Grade B - 26.17 29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44
k Nominal Size 8.8 10 11.5 12.5 14 15 17 18.7 21 22.5 25
Grade A min 8.62 9.82 11.28 12.28 13.78 14.78 - - - - -
max 8.98 10.18 11.72 12.72 14.22 15.22 - - - - -
Grade B min - 9.71 11.15 12.15 13.65 14.65 16.65 18.28 20.58 22.08 24.58
max - 10.29 11.85 12.85 14.35 15.35 17.35 19.12 21.42 22.92 25.42
k1 min 5.96 6.8 7.8 8.5 9.6 10.3 11.7 12.8 14.4 15.5 17.2
r min 0.6 0.6 0.6 0.8 0.8 0.8 1 1 1 1 1
s max=nominal size 22 24 27 30 32 36 41 46 50 55 60
min Grade A 21.67 23.67 26.67 29.67 31.61 35.38 - - - - -
Grade B - 23.16 26.16 29.16 31 35 40 45 49 53.8 58.8
Length of Thread b       - - - - - - - - - - -
