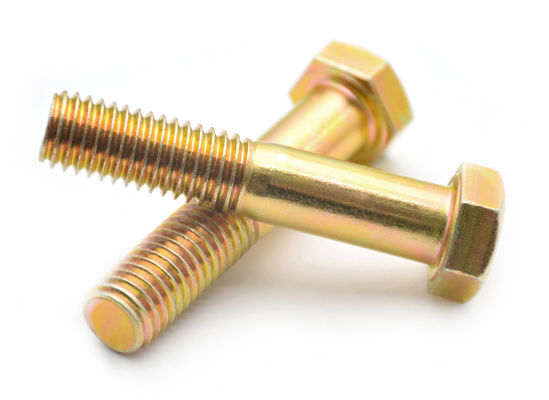

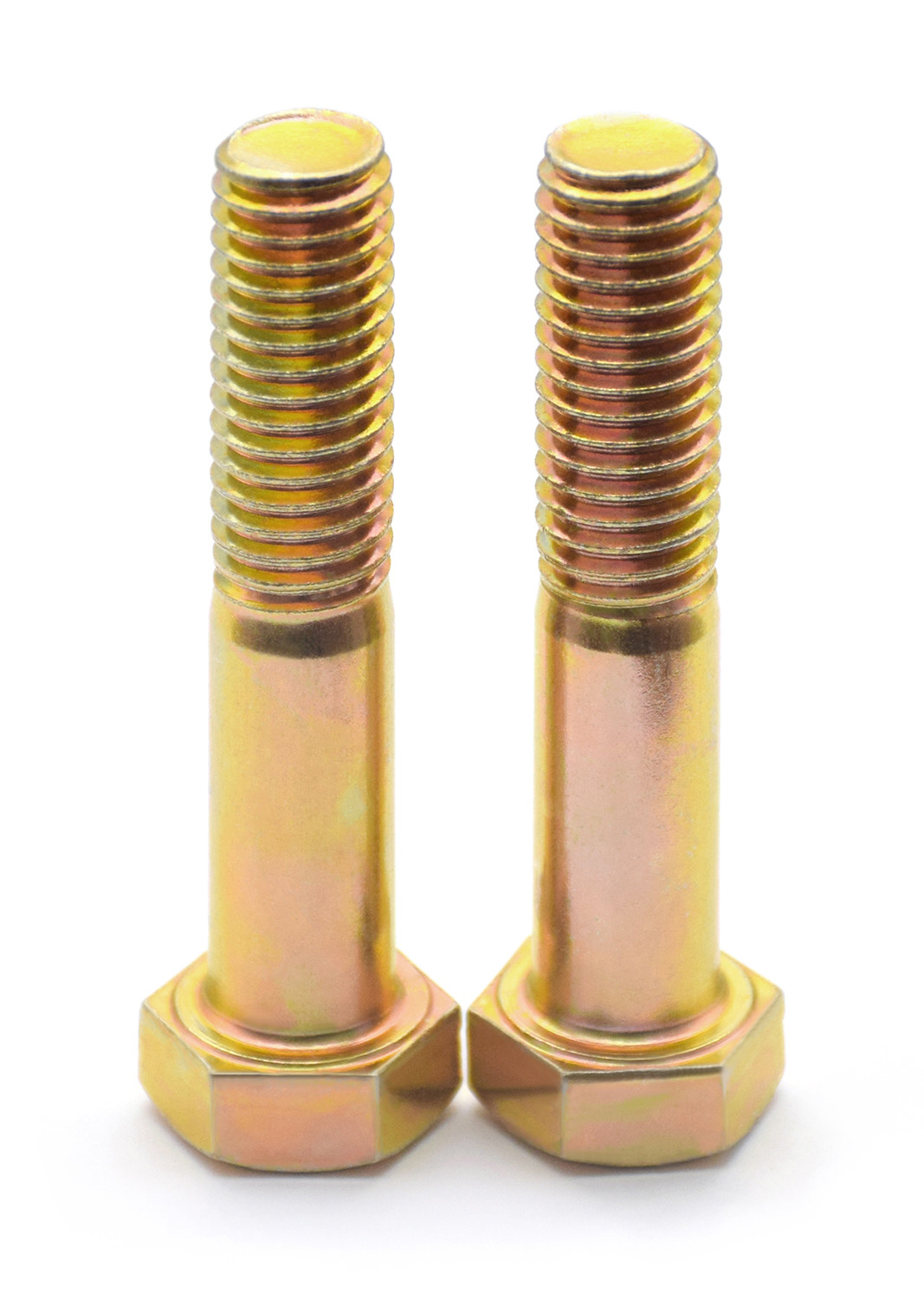

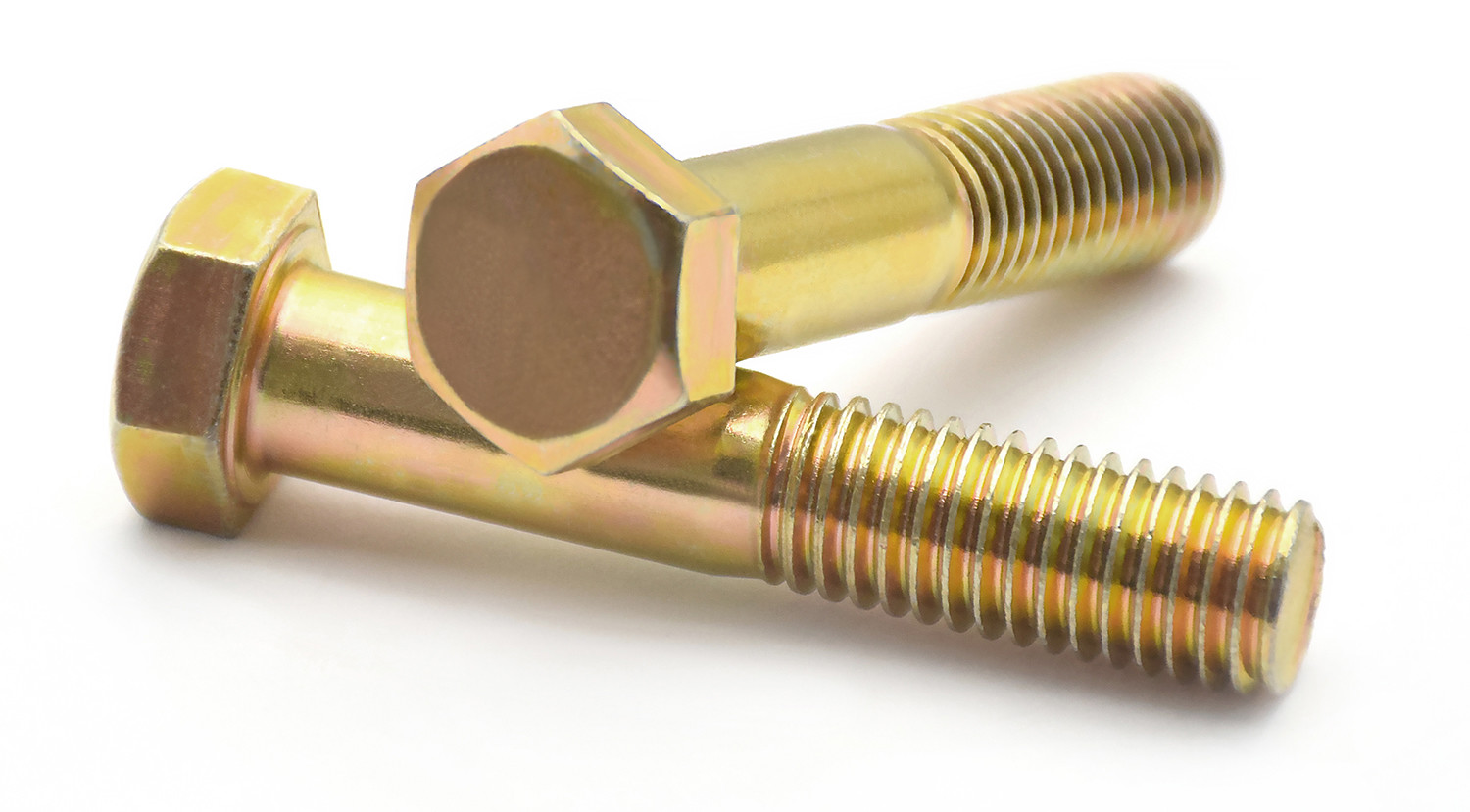

Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014

  • Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
  • Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
  • Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
  • Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
  • Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
Place of Origin JIANG SU PROVINCE CHINA
Brand Name YingYan
Certification ISO9000
Model Number M6-M30
Minimum Order Quantity 1000pieces
Price Negotiable
Packaging Details Small Boxes, Plastic Bags, Bulk in Cartons,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hexagon Head Bolts Partially Threaded Standard GB/DIN/ASME/EN/ISO&etc.
Surface Treatment Plain, Black, Zinc Plated/according To Your Requirement Size M6-M30
Length 30mm-300mm Grade 8.8/10.9 Ect
Materials Alloy Steel 40Cr/Carbon Steel 35K Head Type Hexagonal Head
Surface Galvanzied Color Yellow
Highlight

ISO4014 Hexagon Head Bolts

,

Alloy Steel 40Cr Hexagon Head Bolts

,

Carbon Steel 35K Hexagonal Bolt
You can tick the products you need and communicate with us in the message board.
specifications and models Nominal diameter of thread(mm) Length(mm) inventory
Carbon steel 35K Grade8.8 M6-M24 30-300 1
M6*40 M6 40 10000
M6*45 M6 45 10000
M6*50 M6 50 10000
M6*70 M6 70 10000
M6*80 M6 80 10000
M8*35 M8 35 10000
M8*40 M8 40 10000
M8*45 M8 45 10000
M8*50 M8 50 10000
M8*55 M8 55 10000
M8*60 M8 60 10000
M8*75 M8 75 10000
M8*80 M8 80 10000
M8*90 M8 90 10000
M8*95 M8 95 10000
M8*100 M8 100 10000
M8*110 M8 110 10000
M8*120 M8 120 10000
M8*130 M8 130 10000
M8*140 M8 140 10000
M10*35 M10 35 10000
M10*40 M10 40 10000
M10*45 M10 45 10000
M10*55 M10 55 10000
M10*60 M10 60 10000
M10*70 M10 70 10000
M10*75 M10 75 10000
M10*80 M10 80 10000
M10*85 M10 85 10000
M10*90 M10 90 10000
M10*95 M10 95 10000
M10*100 M10 100 10000
M10*110 M10 110 10000
M10*120 M10 120 10000
M10*130 M10 130 10000
M10*140 M10 140 10000
M10*180 M10 180 10000
M12*50 M12 50 10000
M12*60 M12 60 10000
M12*65 M12 65 10000
M12*70 M12 70 10000
M12*75 M12 75 10000
M12*85 M12 85 10000
M12*90 M12 90 10000
M12*105 M12 105 10000
M12*110 M12 110 10000
M16*55 M16 55 10000
M16*75 M16 75 10000
M16*110 M16 110 10000
M16*120 M16 120 10000
M16*130 M16 130 10000
M16*150 M16 150 10000
M16*200 M16 200 10000
M18*90 M18 90 10000
M20*65 M20 65 10000
M20*70 M20 70 10000
M20*75 M20 75 10000
M20*80 M20 80 10000
M20*85 M20 85 10000
M20*95 M20 95 10000
M20*110 M20 110 10000
M20*120 M20 120 10000
M20*140 M20 140 10000
M20*150 M20 150 10000
M20*160 M20 160 10000
M20*170 M20 170 10000
M20*180 M20 180 10000
M20*200 M20 200 10000
M20*250 M20 250 10000
M24*80 M24 80 10000
M24*90 M24 90 10000
M24*95 M24 95 10000
M24*130 M24 130 10000
M24*140 M24 140 10000
M24*170 M24 170 10000
M24*210 M24 210 10000
M24*240 M24 240 10000
M24*300 M24 300 10000
Alloy steel 40Cr Grade10.9 M6-M30 50-200 1
M6*55 M6 55 10000
M6*60 M6 60 10000
M8*115 M8 115 10000
M10*45 M10 45 10000
M10*50 M10 50 10000
M10*80 M10 80 10000
M10*85 M10 85 10000
M12*55 M12 55 10000
M12*75 M12 75 10000
M12*85 M12 85 10000
M12*95 M12 95 10000
M12*115 M12 115 10000
M14*50 M14 50 10000
M16*50 M16 50 10000
M16*55 M16 55 10000
M16*60 M16 60 10000
M16*100 M16 100 10000
M16*110 M16 110 10000
M16*120 M16 120 10000
M16*145 M16 145 10000
M16*160 M16 160 10000
M18*65 M18 65 10000
M20*70 M20 70 10000
M20*80 M20 80 10000
M20*100 M20 100 10000
M20*110 M20 110 10000
M20*125 M20 125 10000
M24*100 M24 100 10000
M24*120 M24 120 10000
M24*180 M24 180 10000
M30*200 M30 200 10000
If you have more needs, please contact customer service 1 1 1
Leave a Message
specifications and models Nominal diameter of thread(mm) Length(mm) inventory
Product Description

DIN931 Hexagonal Head Bolts with Partial Thread are bolts that adhere to the technical specifications set by the Deutsches Institut für Normung (DIN), the German Institute for Standardization. These bolts exhibit several key features and benefits, making them suitable for various engineering applications.

Structural Characteristics:

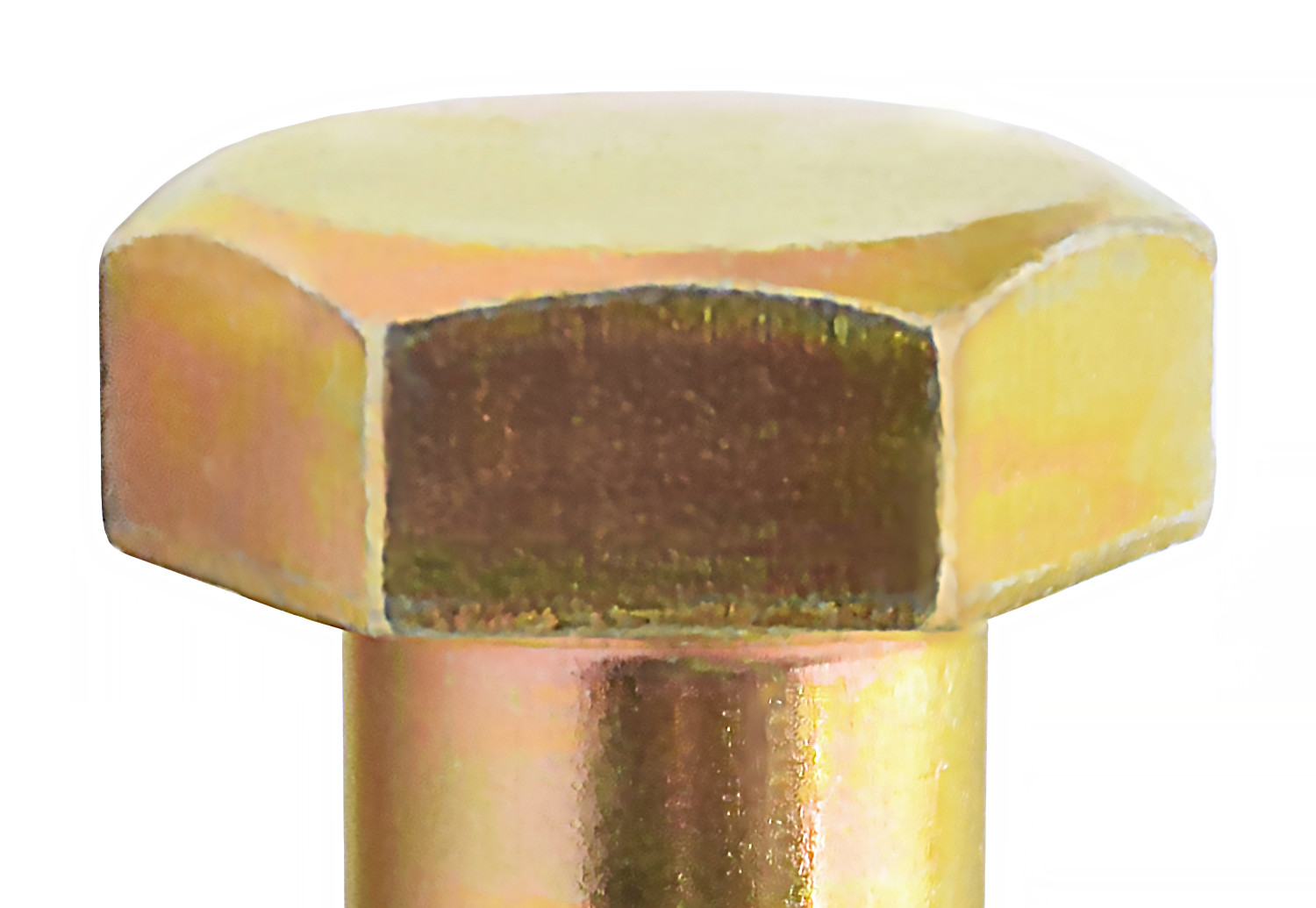

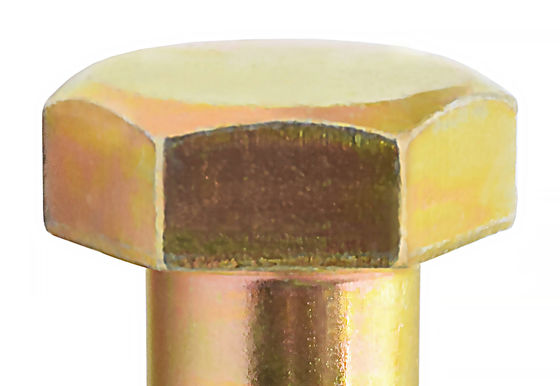

  • Head Design: The bolts feature a hexagonal head, which allows for easy installation and removal using tools such as wrenches or socket wrenches.

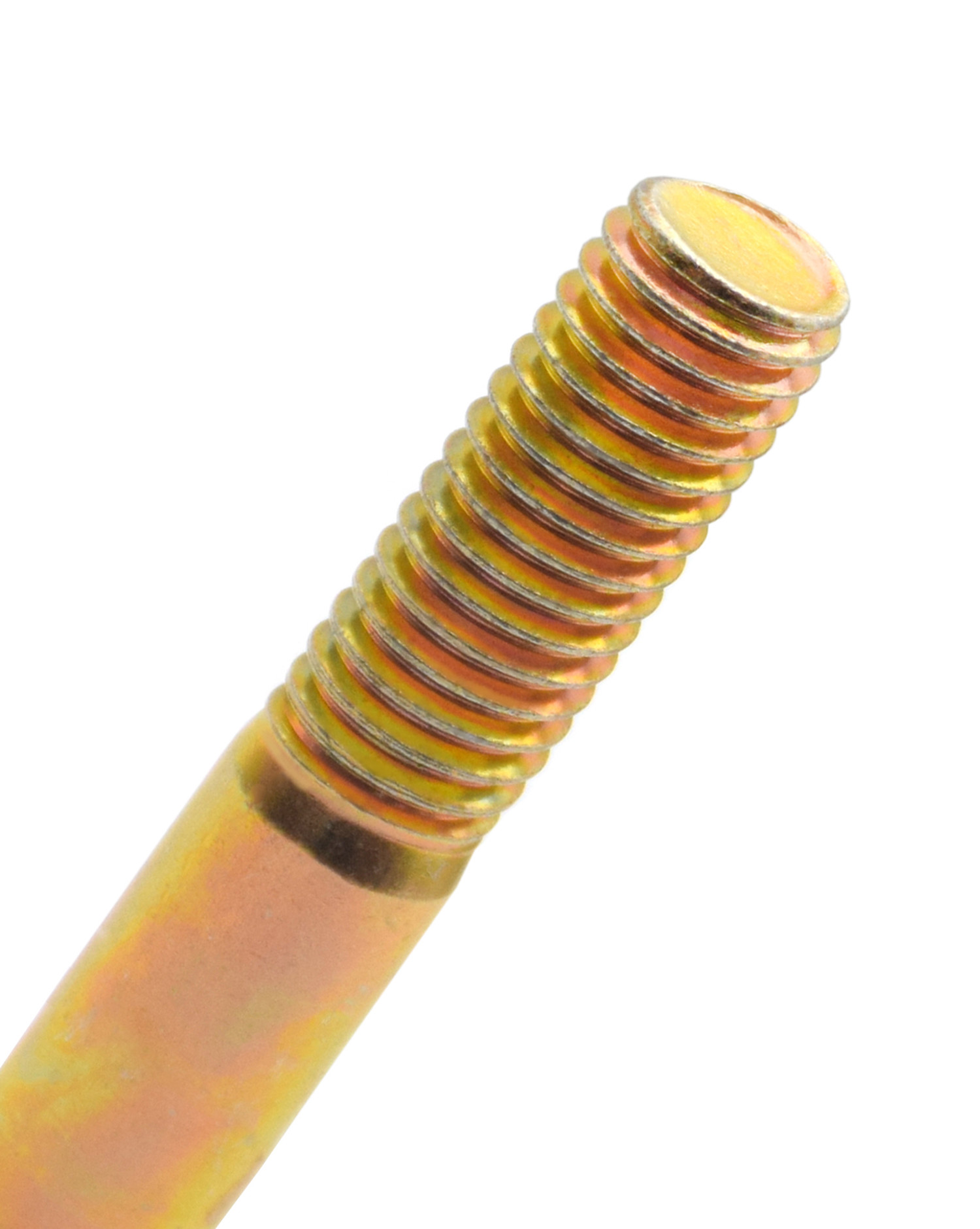

  • Thread Section: The bolts have a partial thread, meaning that only a portion of the shank is threaded. This design is suitable for applications where the bolt needs to pass through a component and be tightened with a nut on the other side.

Standardization and Specifications:

  • DIN931 Standard: The bolts comply with the DIN931 standard, ensuring consistency and reliability in terms of dimensions, materials, and performance.
  • Range of Sizes: They are available in a wide range of thread sizes from M1.6mm to M64mm and shank lengths from L12mm to L500mm, catering to diverse engineering needs.

Materials and Performance:

  • Material Requirements: DIN931 hexagonal head bolts are typically made from high-strength materials such as carbon steel, alloy steel, or stainless steel. These materials offer excellent mechanical properties, corrosion resistance, and durability.
  • Performance Grades: Depending on the material and size, the bolts have various performance grades, such as 8.8 and 10.9 for steel bolts and A2-70 and A4-70 for stainless steel bolts.

Application Areas:

  • DIN931 hexagonal head bolts with partial thread find applications in various industries, including machinery, automotive, shipbuilding, and construction. They are used for fastening structural components, connecting pipes, installing equipment, and other purposes, ensuring secure and reliable connections.

Advantages:

  • Easy Installation and Removal: The hexagonal head design facilitates efficient rotation using tools, improving work efficiency.
  • Flexibility: The partial thread design allows for flexibility in different connection scenarios.
  • Reliability and Durability: The use of high-strength materials and adherence to DIN931 standards ensures the bolts' reliability and durability, meeting the demands of various engineering applications.

Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014 0

Thread Size M1.6 M2 M2.5 M3 (M3.5) M4 M5 M6 (M7) M8 M10 M12
d
P Thread Pitch 0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1 1.25 1.5 1.75
b Ref. L≤125 9 10 11 12 13 14 16 18 20 22 26 30
125＜L≤200 - - - - - - 22 24 26 28 32 36
L＞200 - - - - - - - - - - 45 49
c min 0.1 0.1 0.1 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15
max 0.25 0.25 0.25 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.6
da max 2 2.6 3.1 3.6 4.1 4.7 5.7 6.8 7.8 9.2 11.2 13.7
ds max=nominal size 1.6 2 2.5 3 3.5 4 5 6 7 8 10 12
min Grade A 1.46 1.86 2.36 2.86 3.32 3.82 4.82 5.82 6.78 7.78 9.78 11.73
Grade B - - - - - - - - - - - -
dw min Grade A 2.4 3.2 4.1 4.6 5.1 5.9 6.9 8.9 9.8 11.6 15.6 17.4
Grade B - - - - - - - - - - - -
e min Grade A 3.41 4.32 5.45 6.01 6.58 7.66 8.79 11.05 12.12 14.38 18.9 21.1
Grade B - - - - - - - - - - - -
k Nominal Size 1.1 1.4 1.7 2 2.4 2.8 3.5 4 4.8 5.3 6.4 7.5
Grade A min 0.98 1.28 1.58 1.88 2.28 2.68 3.35 3.85 4.65 5.15 6.22 7.32
max 1.22 1.52 1.82 2.12 2.52 2.92 3.65 4.15 4.95 5.45 6.58 7.68
Grade B min - - - - - - - - - - - -
max - - - - - - - - - - - -
k1 min 0.7 0.9 1.1 1.3 1.6 1.9 2.28 2.63 3.19 3.54 4.28 5.05
r min 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.25 0.25 0.4 0.4 0.6
s max=nominal size 3.2 4 5 5.5 6 7 8 10 11 13 17 19
min Grade A 3.02 3.82 4.82 5.32 5.82 6.78 7.78 9.78 10.73 12.73 16.73 18.67
Grade B - - - - - - - - - - - -
Length of Thread b       - - - - - - - - - - - -
Thread Size (M14) M16 (M18) M20 (M22) M24 (M27) M30 (M33) M36 (M39)
d
P Thread Pitch 2 2 2.5 2.5 2.5 3 3 3.5 3.5 4 4
b Ref. L≤125 34 38 42 46 50 54 60 66 72 78 84
125＜L≤200 40 44 48 52 56 60 66 72 78 84 90
L＞200 53 57 61 65 69 73 79 85 91 97 103
c min 0.15 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3
max 0.6 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 1
da max 15.7 17.7 20.2 22.4 24.4 26.4 30.4 33.4 36.4 39.4 42.4
ds max=nominal size 14 16 18 20 22 24 27 30 33 36 39
min Grade A 13.73 15.73 17.73 19.67 21.67 23.67 - - - - -
Grade B - 15.57 17.57 19.48 21.48 23.48 26.48 29.48 32.38 35.38 38.38
dw min Grade A 20.5 22.5 25.3 28.2 30 33.6 - - - - -
Grade B - 22 24.8 27.7 29.5 33.2 38 42.7 46.6 51.1 55.9
e min Grade A 24.49 26.75 30.14 33.53 35.72 39.98 - - - - -
Grade B - 26.17 29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44
k Nominal Size 8.8 10 11.5 12.5 14 15 17 18.7 21 22.5 25
Grade A min 8.62 9.82 11.28 12.28 13.78 14.78 - - - - -
max 8.98 10.18 11.72 12.72 14.22 15.22 - - - - -
Grade B min - 9.71 11.15 12.15 13.65 14.65 16.65 18.28 20.58 22.08 24.58
max - 10.29 11.85 12.85 14.35 15.35 17.35 19.12 21.42 22.92 25.42
k1 min 5.96 6.8 7.8 8.5 9.6 10.3 11.7 12.8 14.4 15.5 17.2
r min 0.6 0.6 0.6 0.8 0.8 0.8 1 1 1 1 1
s max=nominal size 22 24 27 30 32 36 41 46 50 55 60
min Grade A 21.67 23.67 26.67 29.67 31.61 35.38 - - - - -
Grade B - 23.16 26.16 29.16 31 35 40 45 49 53.8 58.8
Length of Thread b       - - - - - - - - - - -
