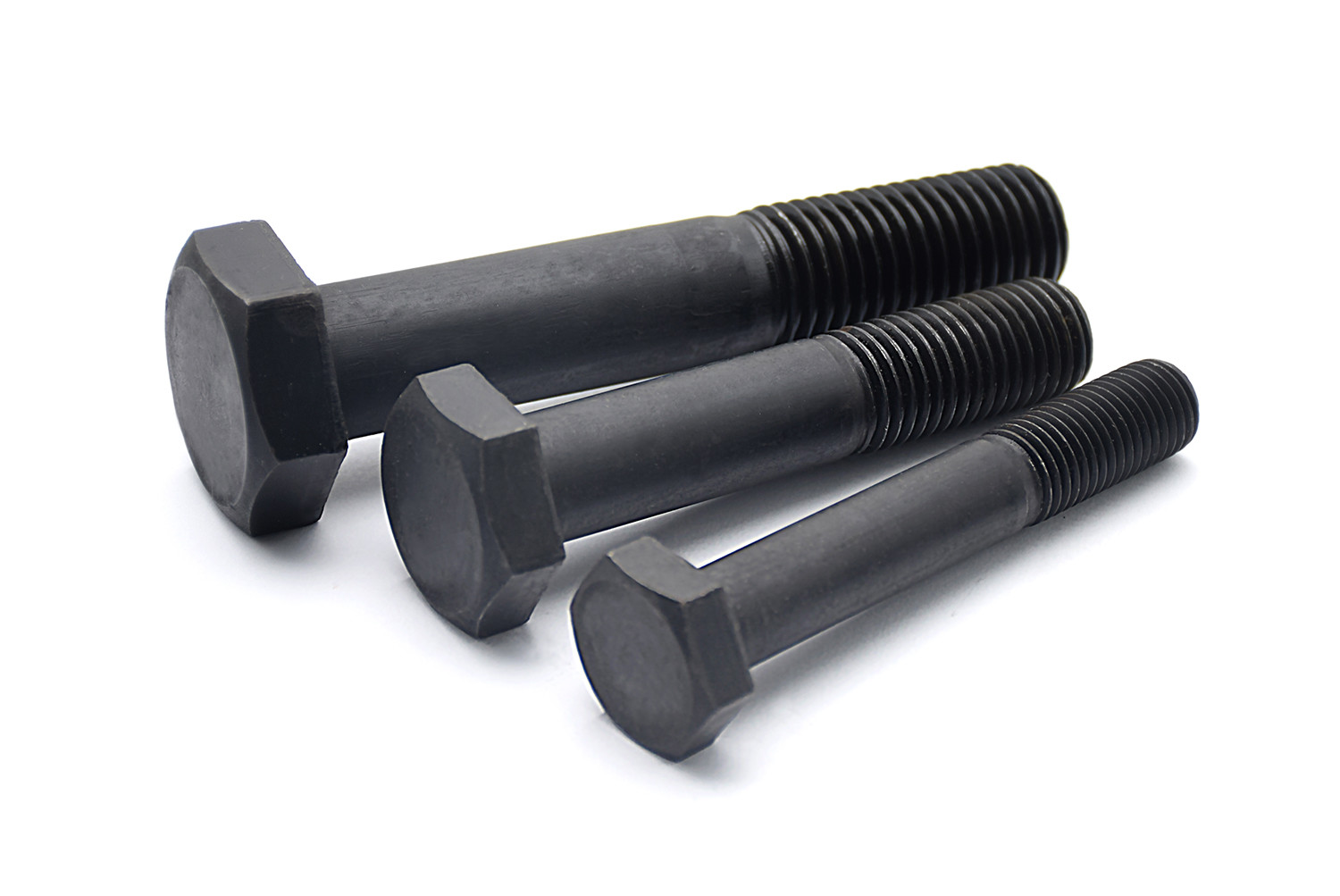

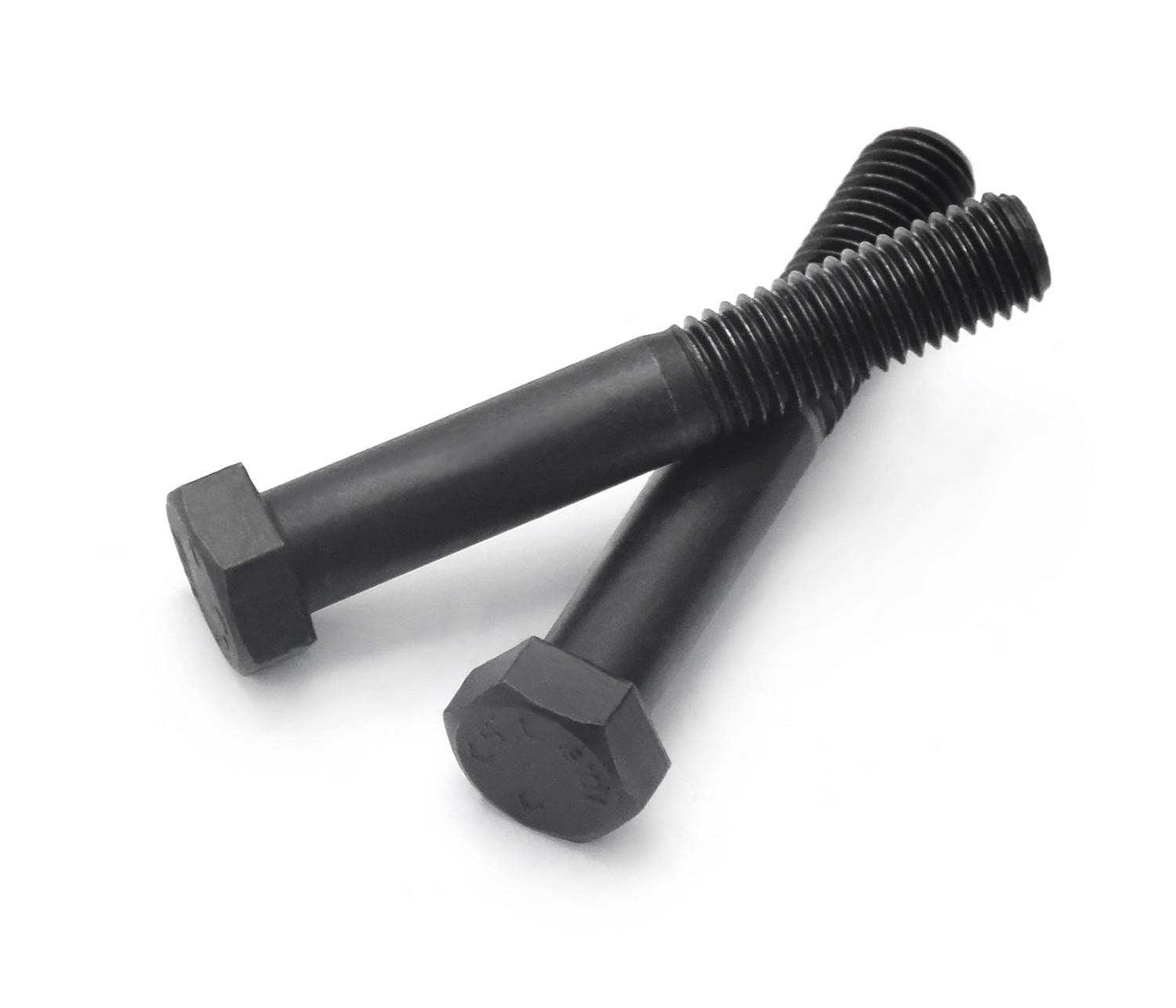

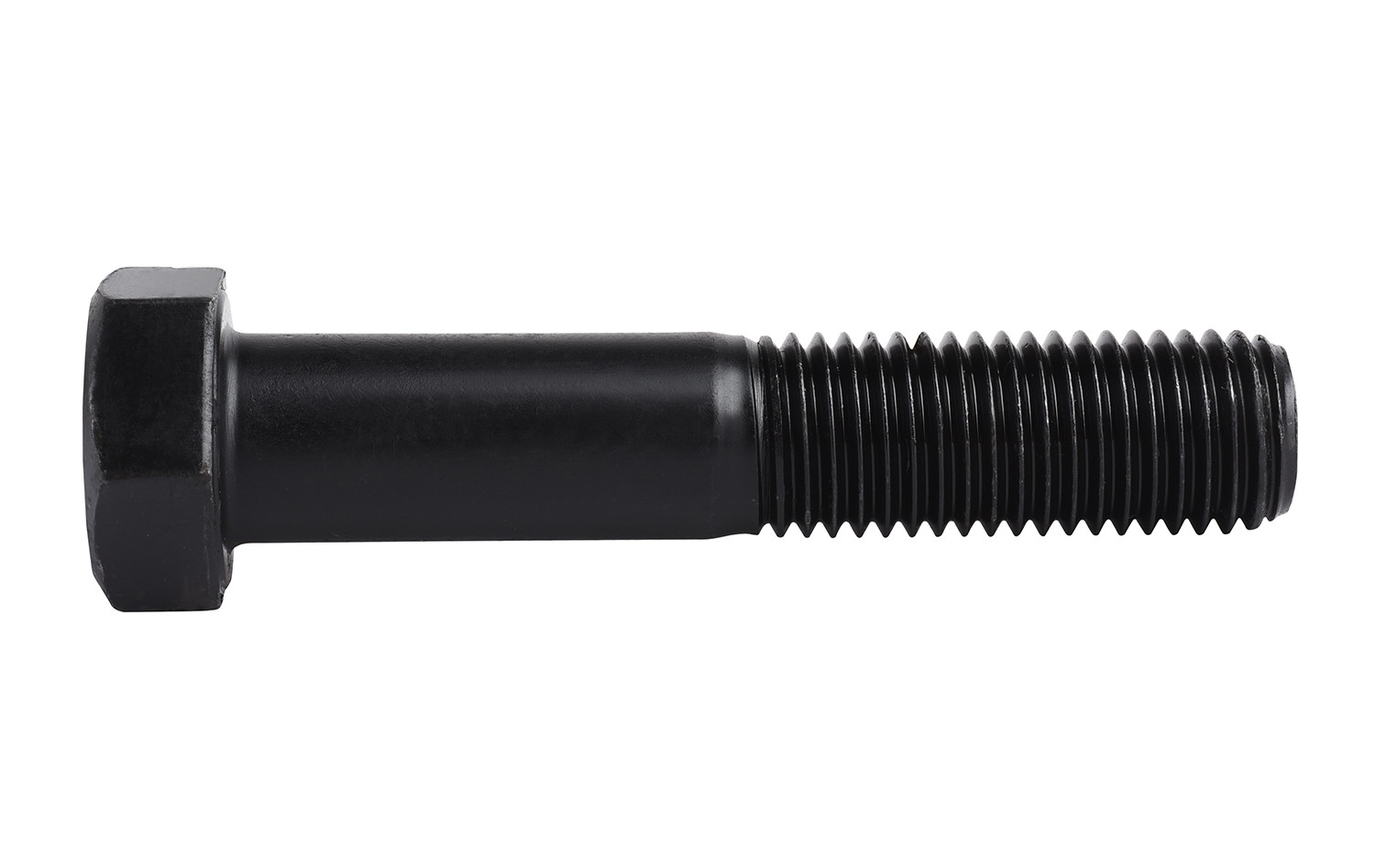

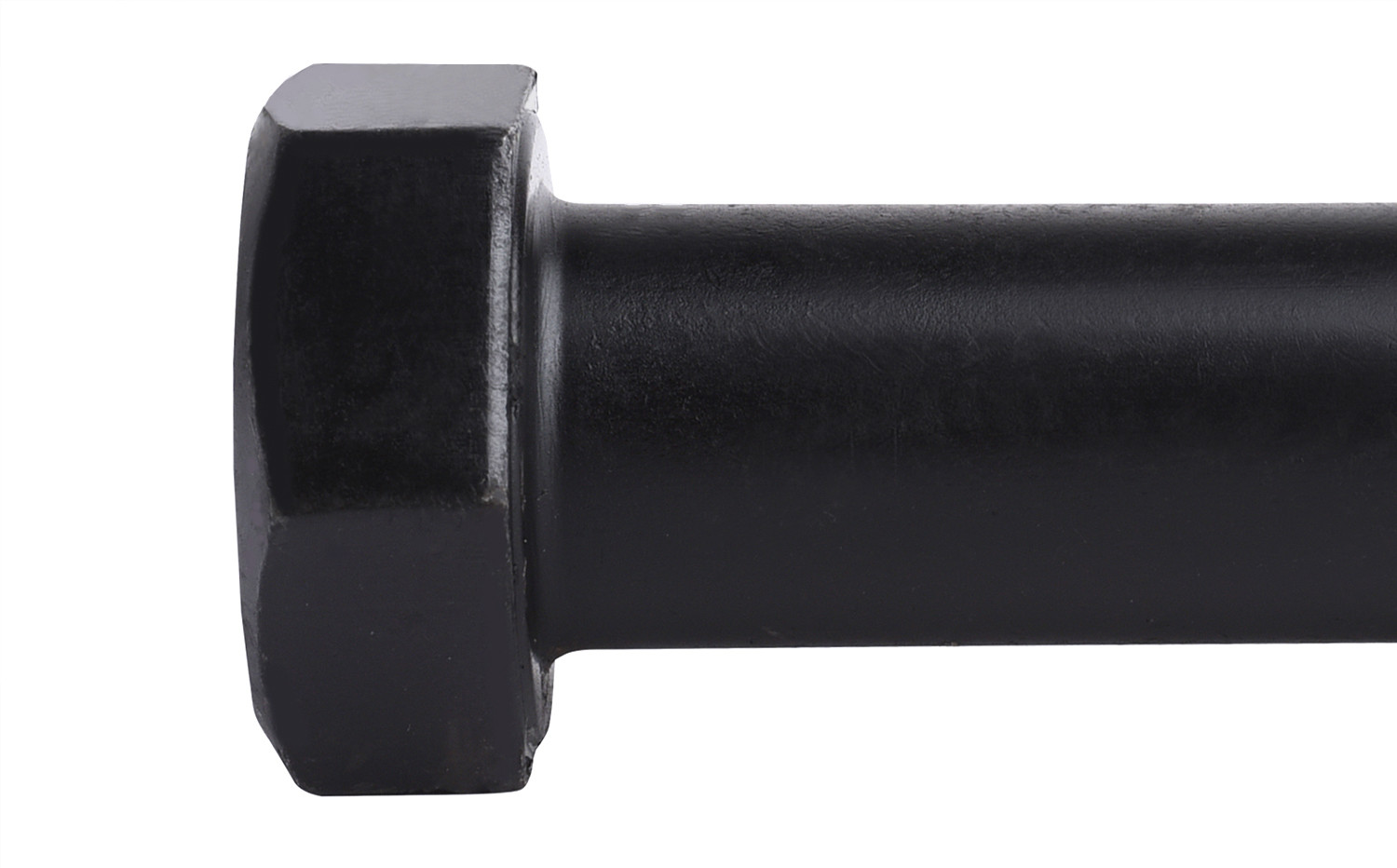

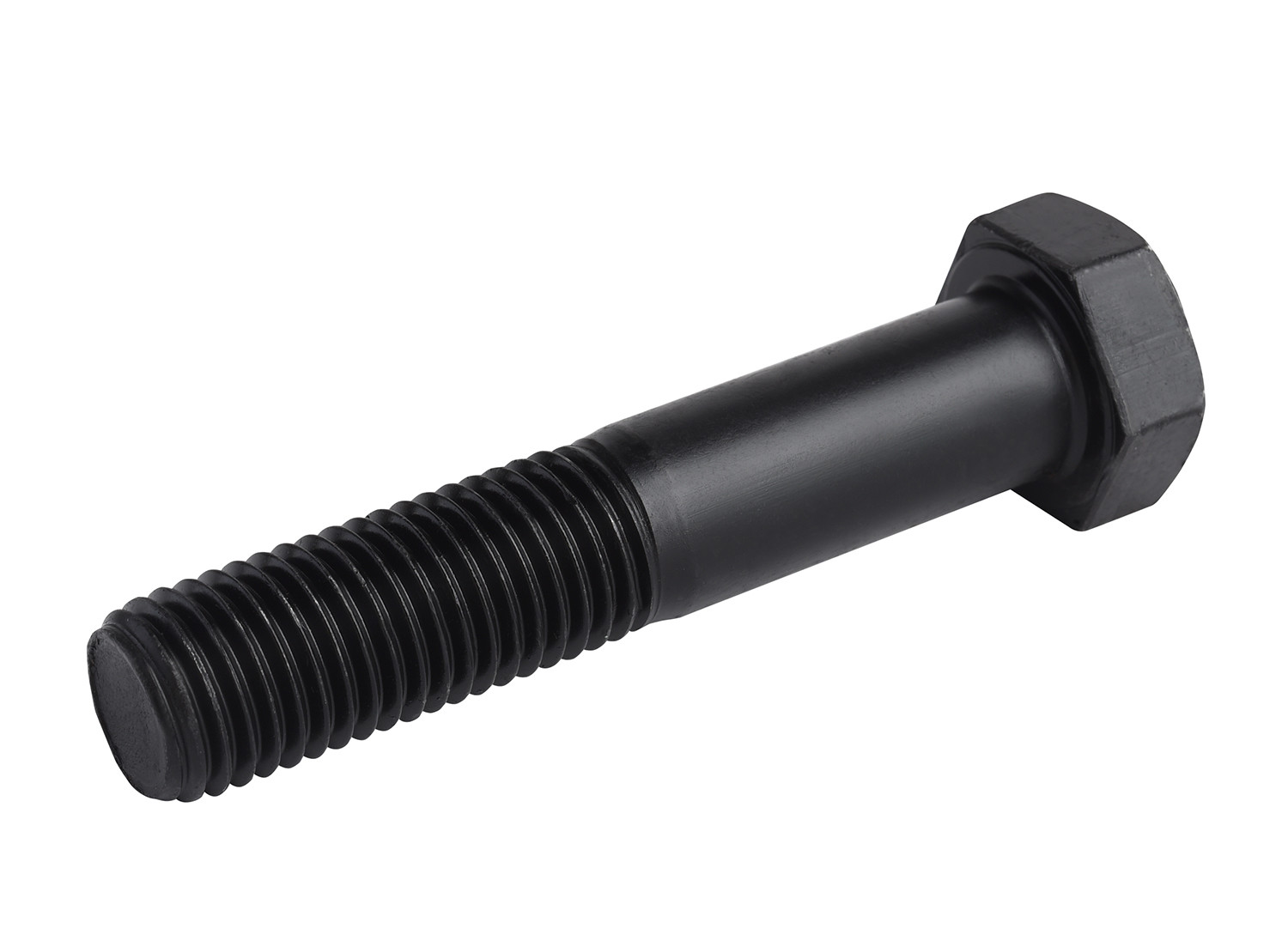

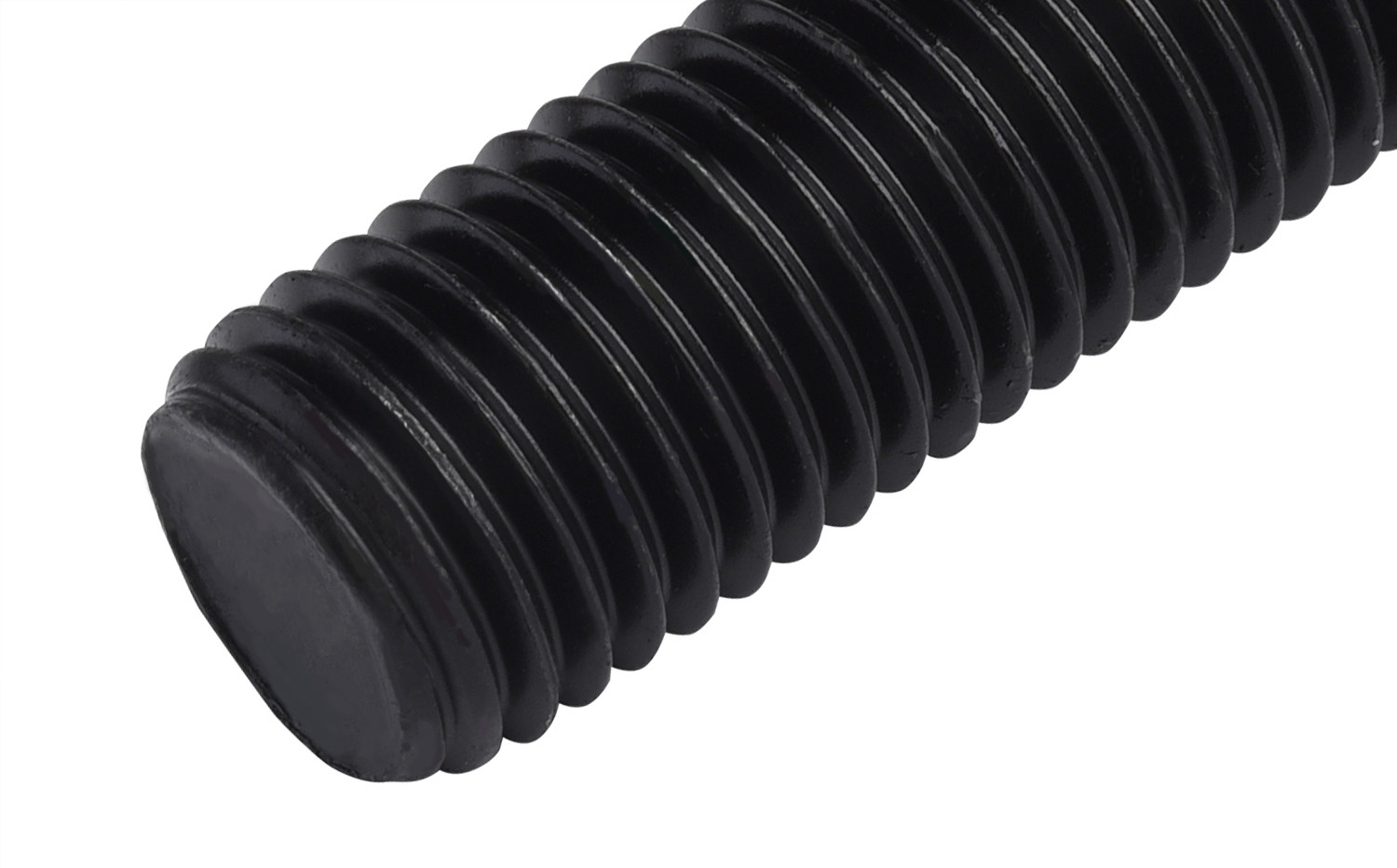

Partially Threaded Hexagon Head Bolts Blackened Carbon Steel DIN931-1 ISO EN 4014

  • Partially Threaded Hexagon Head Bolts Blackened Carbon Steel DIN931-1 ISO EN 4014
  • Partially Threaded Hexagon Head Bolts Blackened Carbon Steel DIN931-1 ISO EN 4014
  • Partially Threaded Hexagon Head Bolts Blackened Carbon Steel DIN931-1 ISO EN 4014
  • Partially Threaded Hexagon Head Bolts Blackened Carbon Steel DIN931-1 ISO EN 4014
  • Partially Threaded Hexagon Head Bolts Blackened Carbon Steel DIN931-1 ISO EN 4014
  • Partially Threaded Hexagon Head Bolts Blackened Carbon Steel DIN931-1 ISO EN 4014
Place of Origin JIANG SU PROVINCE CHINA
Brand Name YingYan
Certification ISO9000
Model Number M5-M42
Minimum Order Quantity 1000pieces
Price Negotiable
Packaging Details Small Boxes, Plastic Bags, Bulk in Cartons,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hexagon Head Bolts Partially Threaded Standard GB/DIN/ASME/EN/ISO&etc.
Materials Alloy Steel ML 40Cr 40Cr/Carbon Steel 35K Surface Treatment Plain, Black, Zinc Plated/according To Your Requirement
Grade 8.8/10.9/12.9 Head Type Hexagonal Head
Surface Black Size M5-M42/According Your Requirements
Length 30mm-400mm/According Your Requirements
Highlight

Partially Threaded Hexagon Head Bolts

,

Carbon Steel Hexagon Head Bolts

,

DIN931-1 Flanged Hexagon Bolts
You can tick the products you need and communicate with us in the message board.
specifications and models Nominal diameter of thread(mm) Length(mm) inventory
Carbon steel 35K Grade 8.8 1 1 1
M5*40 M5 40 10000
M5*45 M5 45 10000
M5*50 M5 50 10000
M5*55 M5 55 10000
M5*60 M5 60 10000
M5*65 M5 65 10000
M6*30 M6 30 10000
M6*40 M6 40 10000
M6*45 M6 45 10000
M6*50 M6 50 10000
M6*55 M6 55 10000
M6*60 M6 60 10000
M6*65 M6 65 10000
M6*70 M6 70 10000
M6*75 M6 75 10000
M6*80 M6 80 10000
M6*90 M6 90 10000
M6*100 M6 100 10000
M6*105 M6 105 10000
M6*140 M6 140 10000
M8*35 M8 35 10000
M8*45 M8 45 10000
M8*50 M8 50 10000
M8*55 M8 55 10000
M8*60 M8 60 10000
M8*65 M8 65 10000
M8*70 M8 70 10000
M8*75 M8 75 10000
M8*80 M8 80 10000
M8*85 M8 85 10000
M8*90 M8 90 10000
M8*95 M8 95 10000
M8*100 M8 100 10000
M8*105 M8 105 10000
M8*110 M8 110 10000
M8*120 M8 120 10000
M8*130 M8 130 10000
M8*140 M8 140 10000
M8*150 M8 150 10000
M8*155 M8 155 10000
M8*160 M8 160 10000
M8*190 M8 190 10000
M8*200 M8 200 10000
M10*30 M10 30 10000
M10*45 M10 45 10000
M10*50 M10 50 10000
M10*60 M10 60 10000
M10*65 M10 65 10000
M10*70 M10 70 10000
M10*75 M10 75 10000
M10*80 M10 80 10000
M10*85 M10 85 10000
M10*90 M10 90 10000
M10*95 M10 95 10000
M10*100 M10 100 10000
M10*105 M10 105 10000
M10*110 M10 110 10000
M10*115 M10 115 10000
M10*120 M10 120 10000
M10*130 M10 130 10000
M10*140 M10 140 10000
M10*150 M10 150 10000
M10*170 M10 170 10000
M10*200 M10 200 10000
M12*55 M12 55 10000
M12*60 M12 60 10000
M12*65 M12 65 10000
M12*70 M12 70 10000
M12*75 M12 75 10000
M12*80 M12 80 10000
M12*85 M12 85 10000
M12*90 M12 90 10000
M12*95 M12 95 10000
M12*150 M12 150 10000
M12*190 M12 190 10000
M12*200 M12 200 10000
M12*220 M12 220 10000
M12*230 M12 230 10000
M12*240 M12 240 10000
M14*55 M14 55 10000
M14*60 M14 60 10000
M14*70 M14 70 10000
M14*80 M14 80 10000
M14*85 M14 85 10000
M14*180 M14 180 10000
M14*200 M14 200 10000
M14*210 M14 210 10000
M14*220 M14 220 10000
M16*50 M16 50 10000
M16*60 M16 60 10000
M16*75 M16 75 10000
M16*80 M16 80 10000
M16*85 M16 85 10000
M16*95 M16 95 10000
M16*100 M16 100 10000
M16*130 M16 130 10000
M16*140 M16 140 10000
M16*150 M16 150 10000
M16*200 M16 200 10000
M16*220 M16 220 10000
M16*230 M16 230 10000
M16*250 M16 250 10000
M16*260 M16 260 10000
M16*280 M16 280 10000
M16*300 M16 300 10000
M18*50 M18 50 10000
M18*60 M18 60 10000
M18*70 M18 70 10000
M18*80 M18 80 10000
M18*110 M18 110 10000
M18*140 M18 140 10000
M18*150 M18 150 10000
M18*160 M18 160 10000
M18*170 M18 170 10000
M18*180 M18 180 10000
M20*70 M20 70 10000
M20*80 M20 80 10000
M20*85 M20 85 10000
M20*90 M20 90 10000
M20*95 M20 95 10000
M20*110 M20 110 10000
M20*120 M20 120 10000
M20*140 M20 140 10000
M20*150 M20 150 10000
M20*160 M20 160 10000
M20*170 M20 170 10000
M20*180 M20 180 10000
M20*200 M20 200 10000
M20*210 M20 210 10000
M20*220 M20 220 10000
M20*240 M20 240 10000
M20*250 M20 250 10000
M20*300 M20 300 10000
M22*70 M22 70 10000
M22*120 M22 120 10000
M22*130 M22 130 10000
M22*170 M22 170 10000
M24*90 M24 90 10000
M24*110 M24 110 10000
M24*160 M24 160 10000
M24*165 M24 165 10000
M24*180 M24 180 10000
M24*190 M24 190 10000
M24*220 M24 220 10000
M24*230 M24 230 10000
M24*240 M24 240 10000
M24*250 M24 250 10000
M24*320 M24 320 10000
M24*340 M24 340 10000
M24*350 M24 350 10000
M27*130 M27 130 10000
M27*150 M27 150 10000
M27*170 M27 170 10000
M27*190 M27 190 10000
M30*100 M30 100 10000
M30*120 M30 120 10000
M30*130 M30 130 10000
M30*180 M30 180 10000
M30*200 M30 200 10000
M30*220 M30 220 10000
M30*240 M30 240 10000
M30*260 M30 260 10000
M30*270 M30 270 10000
M30*400 M30 400 10000
M36*90 M36 90 10000
M36*160 M36 160 10000
M36*280 M36 280 10000
M36*300 M36 300 10000
M42*180 M42 180 10000
M42*220 M42 220 10000
M42*360 M42 360 10000
40Cr Grade10.9 M8-M36 80-280 1
M8*110 M8 110 10000
M10*165 M10 165 10000
M12*165 M12 165 10000
M14*145 M14 145 10000
M16*90 M16 90 10000
M18*90 M18 90 10000
M20*90 M20 90 10000
M20*140 M20 140 10000
M20*160 M20 160 10000
M20*240 M20 240 10000
M24*100 M24 100 10000
M24*125 M24 125 10000
M24*165 M24 165 10000
M27*80 M27 80 10000
M27*150 M27 150 10000
M30*110 M30 110 10000
M30*150 M30 150 10000
M30*220 M30 220 10000
M30*240 M30 240 10000
M30*280 M30 280 10000
M36*170 M36 170 10000
ML40Cr Grade12.9 M16 90 1
M16*90 M16 90 10000
If you have more needs, please contact customer service 1 1 1
Leave a Message
specifications and models Nominal diameter of thread(mm) Length(mm) inventory
Product Description

DIN931-1 ISO EN 4014 Hexagon Head Bolts Partially Threaded Blackened Carbon Steel/Alloy Steel Class 8.8 10.9 12.9

Advantages:

  1. Corrosion Resistance: The blackening process creates a dense oxide film on the bolt surface, providing excellent corrosion resistance and preventing rusting in damp or corrosive environments.

  2. Wear Resistance: Blackened bolts exhibit increased surface hardness, improving their wear resistance and enabling them to maintain good performance in frequently rubbed environments.

  3. Aesthetic Appeal: The blackened surface of the bolts gives them a unique and attractive appearance, making them suitable for use in applications where aesthetics are important.

  4. Cost-Effectiveness: Blackening is a cost-efficient surface treatment method, offering better value for money compared to other surface treatments such as zinc plating or painting.

Characteristics:

  1. Uniformity: The blackened surface of the bolts is evenly colored, with no significant color differences or spots, ensuring an overall aesthetic appeal.

  2. Stability: The oxide film formed during blackening is stable and does not easily peel off or discolor, guaranteeing the durability of the bolts.

  3. Environmental Friendliness: The blackening process does not generate harmful substances and meets environmental protection requirements.

Applications:

DIN 931-1 blackened bolts are widely used in various fields such as mechanical equipment, architectural structures, automotive manufacturing, and more. They are particularly common in applications where corrosion resistance, wear resistance, and aesthetics are critical. For example, in chemical equipment, bolts with excellent corrosion resistance are needed due to the corrosive nature of the media. In automotive manufacturing, bolts with good wear resistance are required for components like engines and transmissions. And in architectural structures, bolts with high strength and stability are essential to bear significant loads.

Partially Threaded Hexagon Head Bolts Blackened Carbon Steel DIN931-1 ISO EN 4014 0

Thread Size
d		 M1.6 M2 M2.5 M3 (M3.5) M4 M5 M6 (M7) M8 M10 M12
P Thread Pitch 0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1 1.25 1.5 1.75
b Ref. L≤125 9 10 11 12 13 14 16 18 20 22 26 30
125＜L≤200 - - - - - - 22 24 26 28 32 36
L＞200 - - - - - - - - - - 45 49
c min 0.1 0.1 0.1 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15
max 0.25 0.25 0.25 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.6
da max 2 2.6 3.1 3.6 4.1 4.7 5.7 6.8 7.8 9.2 11.2 13.7
ds max=nominal size 1.6 2 2.5 3 3.5 4 5 6 7 8 10 12
min Grade A 1.46 1.86 2.36 2.86 3.32 3.82 4.82 5.82 6.78 7.78 9.78 11.73
Grade B - - - - - - - - - - - -
dw min Grade A 2.4 3.2 4.1 4.6 5.1 5.9 6.9 8.9 9.8 11.6 15.6 17.4
Grade B - - - - - - - - - - - -
e min Grade A 3.41 4.32 5.45 6.01 6.58 7.66 8.79 11.05 12.12 14.38 18.9 21.1
Grade B - - - - - - - - - - - -
k Nominal Size 1.1 1.4 1.7 2 2.4 2.8 3.5 4 4.8 5.3 6.4 7.5
Grade A min 0.98 1.28 1.58 1.88 2.28 2.68 3.35 3.85 4.65 5.15 6.22 7.32
max 1.22 1.52 1.82 2.12 2.52 2.92 3.65 4.15 4.95 5.45 6.58 7.68
Grade B min - - - - - - - - - - - -
max - - - - - - - - - - - -
k1 min 0.7 0.9 1.1 1.3 1.6 1.9 2.28 2.63 3.19 3.54 4.28 5.05
r min 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.25 0.25 0.4 0.4 0.6
s max=nominal size 3.2 4 5 5.5 6 7 8 10 11 13 17 19
min Grade A 3.02 3.82 4.82 5.32 5.82 6.78 7.78 9.78 10.73 12.73 16.73 18.67
Grade B - - - - - - - - - - - -
Length of Thread b       - - - - - - - - - - - -



Thread Size
d		 (M14) M16 (M18) M20 (M22) M24 (M27) M30 (M33) M36 (M39)
P Thread Pitch 2 2 2.5 2.5 2.5 3 3 3.5 3.5 4 4
b Ref. L≤125 34 38 42 46 50 54 60 66 72 78 84
125＜L≤200 40 44 48 52 56 60 66 72 78 84 90
L＞200 53 57 61 65 69 73 79 85 91 97 103
c min 0.15 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3
max 0.6 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 1
da max 15.7 17.7 20.2 22.4 24.4 26.4 30.4 33.4 36.4 39.4 42.4
ds max=nominal size 14 16 18 20 22 24 27 30 33 36 39
min Grade A 13.73 15.73 17.73 19.67 21.67 23.67 - - - - -
Grade B - 15.57 17.57 19.48 21.48 23.48 26.48 29.48 32.38 35.38 38.38
dw min Grade A 20.5 22.5 25.3 28.2 30 33.6 - - - - -
Grade B - 22 24.8 27.7 29.5 33.2 38 42.7 46.6 51.1 55.9
e min Grade A 24.49 26.75 30.14 33.53 35.72 39.98 - - - - -
Grade B - 26.17 29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44
k Nominal Size 8.8 10 11.5 12.5 14 15 17 18.7 21 22.5 25
Grade A min 8.62 9.82 11.28 12.28 13.78 14.78 - - - - -
max 8.98 10.18 11.72 12.72 14.22 15.22 - - - - -
Grade B min - 9.71 11.15 12.15 13.65 14.65 16.65 18.28 20.58 22.08 24.58
max - 10.29 11.85 12.85 14.35 15.35 17.35 19.12 21.42 22.92 25.42
k1 min 5.96 6.8 7.8 8.5 9.6 10.3 11.7 12.8 14.4 15.5 17.2
r min 0.6 0.6 0.6 0.8 0.8 0.8 1 1 1 1 1
s max=nominal size 22 24 27 30 32 36 41 46 50 55 60
min Grade A 21.67 23.67 26.67 29.67 31.61 35.38 - - - - -
Grade B - 23.16 26.16 29.16 31 35 40 45 49 53.8 58.8
Length of Thread b       - - - - - - - - - - -
