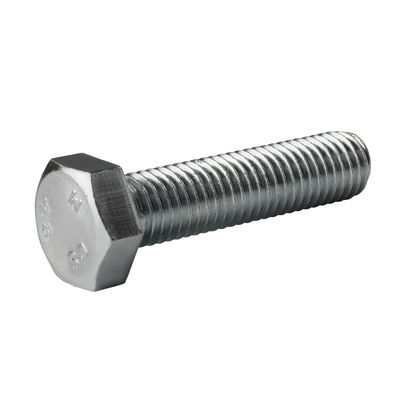

DIN961 EN ISO8676 Carbon Steel / Alloy Steel Hexagon Head Bolts With Fine Pitch Thread

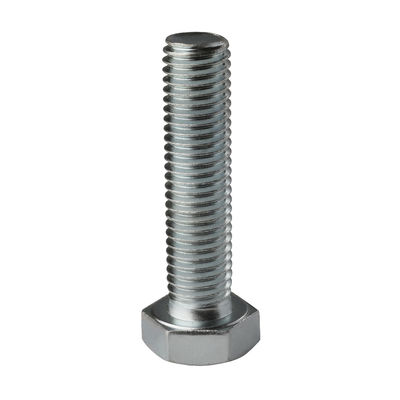

  • DIN961 EN ISO8676 Carbon Steel / Alloy Steel Hexagon Head Bolts With Fine Pitch Thread

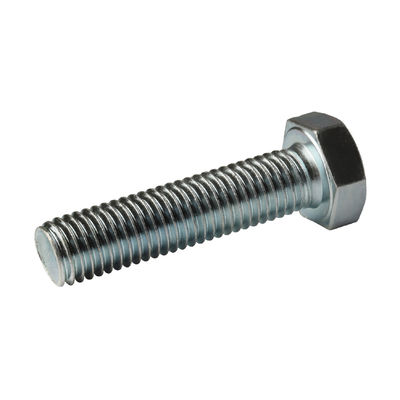

  • DIN961 EN ISO8676 Carbon Steel / Alloy Steel Hexagon Head Bolts With Fine Pitch Thread
  • DIN961 EN ISO8676 Carbon Steel / Alloy Steel Hexagon Head Bolts With Fine Pitch Thread
Place of Origin JIANG SU PROVINCE CHINA
Brand Name YingYan
Certification ISO9000
Model Number M10-M20
Minimum Order Quantity 1000pieces
Price Negotiable
Packaging Details Small Boxes, Plastic Bags, Bulk in Cartons,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hexagon Head Bolts With Fine Pitch Thread Standard GB/DIN/ASME/EN/ISO&etc.
Materials Carbon SteelQ195,35K;Alloy Steel 40Cr Surface Treatmentment Zn- Plated
Grade 4.8/6.8/ 8.8 Size M10-M20/According Your Requirements
Length 18mm-55mm/According Your Requirements
Highlight

Fine Pitch Thread Hexagon Head Bolts

,

Alloy Steel Hexagon Head Bolts

,

DIN961 Hex Head Bolts
You can tick the products you need and communicate with us in the message board.
specifications and models Nominal diameter of thread（mm） Length(mm) thread pitch(mm)
Grade4.8/Carbon steel Q195 16 18 1.5
M16*1.5*18 M16 18 1.5
Grade8.8/Carbon steel 35K 10-20 30-55 1.25-1.5
M10*1.25*30 M10 30 1.25
M16*1.5*35 M16 35 1.5
M20*1.5*55 M20 55 1.5
Grade 10.9/Alloy steel 40Cr M16 45 1.5
If you have more needs, please contact customer service 1 1 1
Leave a Message
specifications and models Nominal diameter of thread（mm） Length(mm) thread pitch(mm)
Product Description

DIN961 EN ISO8676 Carbon Steel/Alloy Steel Hexagon Head Bolts With Fine Pitch Thread Grade4.8,6.8,8.8 Zinc Plated

Advantages:

  1. High Strength: Due to the fine pitch design, the bolt can disperse the force over a smaller contact area, thus increasing the strength per unit area.
  2. High Precision: The fine pitch thread allows for a tighter fit between the bolt and nut, providing higher assembly precision.
  3. Excellent Sealing Performance: The close fit of the fine pitch thread reduces gaps, resulting in superior sealing capabilities, especially suitable for sealing applications.
  4. Easy Assembly: The hexagon head design makes the bolt easier to manipulate with tools such as wrenches or screwdrivers during assembly and disassembly.

Characteristics:

  1. Fine Pitch Design: As mentioned, the fine pitch thread is the primary characteristic of this bolt, providing the aforementioned advantages.
  2. Hexagon Head: The hexagon head design ensures stability during operation and easy rotation with tools.
  3. Good Interchangeability: Following unified international standards, these bolts have good interchangeability, making it convenient for users to select and replace them.

Applications:

  1. High-Precision Equipment: Due to the high precision and excellent sealing performance of fine pitch bolts, they are often used in equipment requiring precise connections, such as precision instruments and aerospace equipment.
  2. Vibration Environments: Fine pitch bolts' high strength and superior locking performance make them suitable for applications subject to vibration and impact, such as automobiles, motorcycles, and ships.
  3. Sealing Applications: The tight fit of fine pitch bolts makes them particularly suitable for sealing applications, such as pipelines and fuel tanks.

In summary, Hexagon head bolts with fine pitch thread, with their high strength, high precision, excellent sealing performance, and ease of assembly, have found widespread applications in various scenarios requiring precise connections and sealing.

DIN961 EN ISO8676 Carbon Steel / Alloy Steel Hexagon Head Bolts With Fine Pitch Thread 0

Screw Thread M8 M10 M12 M14 M16 M18 M20 M22 M24
d
P Pitch Fine thread-1 1 1 1.5 1.5 1.5 2 1.5 2 2
Fine thread-2 - 1.25 1.25 - - 1.5 2 1.5 1.5
a max 3 3.75 4.5 4.5 4.5 6 6 6 6
c min 0.15 0.15 0.15 0.15 0.2 0.2 0.2 0.2 0.2
max 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.8
da max 9.2 11.2 13.7 15.7 17.7 20.2 22.4 24.4 26.4
dw Grade A min 11.6 15.6 17.4 20.5 22.5 25.3 28.2 30 33.6
Grade B min 11.4 15.4 17.2 20.1 22 24.8 27.7 29.5 33.2
e Grade A min 14.38 18.9 21.1 24.49 26.75 30.14 33.53 35.72 39.98
Grade B min 14.2 18.72 20.88 23.91 26.17 29.56 32.95 35.03 39.55
k Nominal Size 5.3 6.4 7.5 8.8 10 11.5 12.5 14 15
Grade A min 5.15 6.22 7.32 8.62 9.82 11.28 12.28 13.78 14.78
max 5.45 6.58 7.68 8.98 10.18 11.72 12.72 14.22 15.22
Grade B min 5.06 6.11 7.21 8.51 9.71 11.15 12.15 13.65 14.65
max 5.54 6.69 7.79 9.09 10.29 11.85 12.85 14.35 15.35
k1 min 3.54 4.28 5.05 5.96 6.8 7.8 8.5 9.6 10.3
r min 0.4 0.4 0.6 0.6 0.6 0.6 0.8 0.8 0.8
s max=nominal size 13 17 19 22 24 27 30 32 36
Grade A min 12.73 16.73 18.67 21.67 23.67 26.67 29.67 31.61 35.38
Grade B min 12.57 16.57 18.48 21.16 23.16 26.16 29.16 31 35
Weight of per 1000 steel products(≈kg)       - - - - - - - - -
Screw Thread M27 M30 M33 M36 M39 M42 M45 M48 M52
d
P Pitch Fine thread-1 2 2 2 3 3 3 3 3 3
Fine thread-2 - - - - - - - - -
a max 6 6 6 9 9 9 9 9 9
c min 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3
max 0.8 0.8 0.8 0.8 1 1 1 1 1
da max 30.4 33.4 36.4 39.4 42.4 45.6 48.6 52.6 56.6
dw Grade A min - - - - - - - - -
Grade B min 38 42.7 46.6 51.1 55.9 59.9 64.7 69.4 74.2
e Grade A min - - - - - - - - -
Grade B min 45.2 50.85 55.37 60.79 66.44 71.3 76.95 82.6 88.25
k Nominal Size 17 18.7 21 22.5 25 26 28 30 33
Grade A min - - - - - - - - -
max - - - - - - - - -
Grade B min 16.65 18.28 20.58 22.08 24.58 25.58 27.58 29.58 32.5
max 17.35 19.12 21.42 22.92 25.42 26.42 28.42 30.42 33.5
k1 min 11.7 12.8 14.4 15.5 17.2 17.9 19.3 20.9 22.8
r min 1 1 1 1 1 1.2 1.2 1.6 1.6
s max=nominal size 41 46 50 55 60 65 70 75 80
Grade A min - - - - - - - - -
Grade B min 40 45 49 53.8 58.8 63.1 68.1 73.1 78.1
Weight of per 1000 steel products(≈kg)       - - - - - - - - -
Tags:

Flange Head Bolts

Hexagon Head Bolt

Hexagon Flange Bolt
