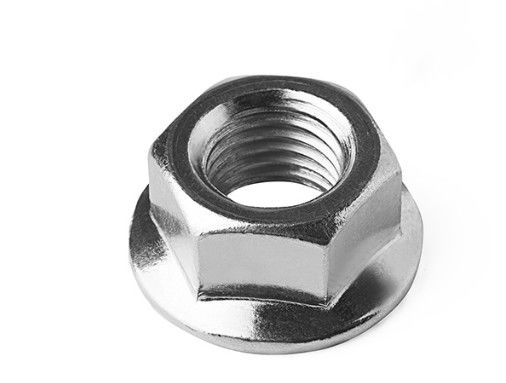

Galvanization Hexagon Nut Series Zinc Nickel Alloys M5 Din 6923 ISO 4161 Class 4

  • Galvanization Hexagon Nut Series Zinc Nickel Alloys M5 Din 6923 ISO 4161 Class 4
Place of Origin JIANG SU PROVINCE CHINA
Brand Name YingYan
Certification ISO9000
Model Number M5
Minimum Order Quantity 1000piece
Price Negotiable
Packaging Details Small Boxes, Plastic Bags, Bulk in Cartons,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hexagon Flange Nuts Standard GB/DIN/ASME/EN/ISO&etc.
Material Zinc-nickel Alloys Surface Treatment Zinc Plated
Color Plain Grade 4
Size M5/according To Your Requirements
Highlight

Zinc Nickel Alloys Nut Series

,

Galvanization Hexagon Nut Series

,

Hexagon Nut M5
Leave a Message
Product Description

DIN6923 Hexagon Flange Nuts (Carbon)





Galvanization Hexagon Nut Series Zinc Nickel Alloys M5 Din 6923 ISO 4161 Class 4 0



Thread Size
D
M5 M6 M8 M10 M12 M14 M16 M20
P Pitch Coarse thread
Fine thread 1
Fine thread 2
c min
da min
max
dc max
dw min
e min
m max
min
mw min
s max=nominal size
min
r max
0.8 1 1.25 1.5 1.75 2 2 2.5
/ / 1 1.25 1.5 1.5 1.5 1.5
/ / / (1.0) (1.25) / / /
1 1.1 1.2 1.5 1.8 2.1 2.4 3
5 6 8 10 12 14 16 20
5.75 6.75 8.75 10.8 13 15.1 17.3 21.6
11.8 14.2 17.9 21.8 26 29.9 34.5 42.8
9.8 12.2 15.8 19.6 23.8 27.6 31.9 39.9
8.79 11.05 14.38 16.64 20.03 23.36 26.75 32.95
5 6 8 10 12 14 16 20
4.7 5.7 7.6 9.6 11.6 13.3 15.3 18.9
2.2 3.1 4.5 5.5 6.7 7.8 9 11.1
8 10 13 15 18 21 24 30
7.78 9.78 12.73 14.73 17.73 20.67 23.67 29.67
0.3 0.36 0.48 0.6 0.72 0.88 0.96 1.2

Characteristics:

  1. This hexagonal flange nut is designed in accordance with the DIN6923 standard, thereby ensuring product uniformity and interchangeability.
  2. To ensure the durability and strength of the nut, high-strength materials (such as carbon steel) are used.
  3. To improve the stability and torque distribution of the connection, the nut design features an added flange surface, increasing the contact area with the connected piece.
  4. The nut is available in various strength grades such as 4.8, 8.8, 10.9, and 12.9 to meet different hardness requirements.

Advantages:

  1. The flange design enables the nut to effectively distribute force across the connected piece, achieving efficient connection while enhancing reliability and stability.
  2. With multiple strength grades available, this flange nut is suitable for a wide range of application scenarios, offering extensive applicability.
  3. To ensure the long service life and excellent durability of this nut, it is made of high-strength materials.
  4. With its design adhering to the DIN6923 standard, the installation process is simplified and the installation speed is accelerated.

Uses:

  1. Mechanical Equipment Connection: Ideal for connecting and securing various mechanical equipment, ensuring stable and safe operation.
  2. Building Structure Connection: In the construction sector, these nuts can be used to connect steel structures or secure other architectural elements, enhancing structural stability.
  3. Automotive Manufacturing: Widely used in the automotive industry for connecting and fastening parts like car bodies and engines.
  4. Other Industrial Fields: Due to their high strength and versatility, DIN6923 Hexagon flange nuts (Carbon) are also extensively used in other industries like shipping, aerospace, and more.
