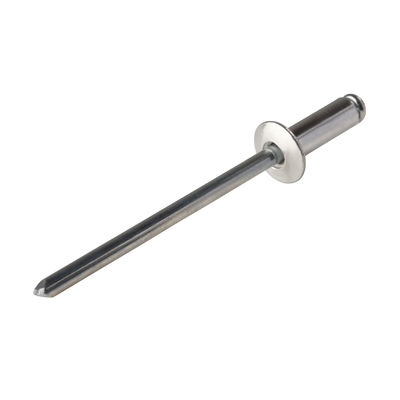

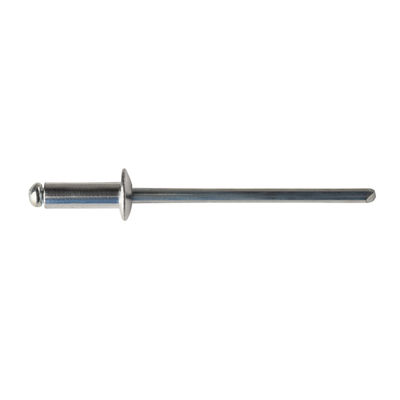

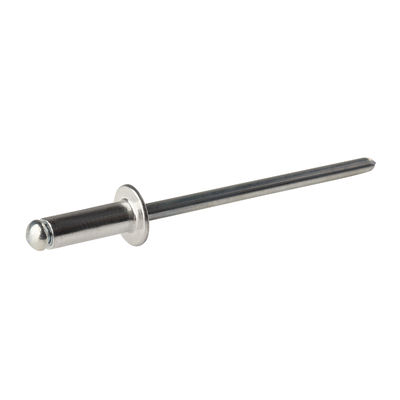

DIN7337 (A)/(B) DIN EN ISO 15977 15982 Break Mandrel Blind Rivets Flat / Countersunk Head
| Place of Origin | JIANG SU PROVINCE CHINA |
|---|---|
| Brand Name | YingYan |
| Certification | ISO9000 |
| Model Number | SIZEΦ3.2-Φ6,LENGTH 6mm-25mm |
| Minimum Order Quantity | 1000pieces |
| Price | Negotiable |
| Packaging Details | Small Boxes, Plastic Bags, Bulk in Cartons, |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Closed End Blind Rivets With Break Pull Mandrel And Protruding Head | Standard | GB/DIN/ASME/EN/ISO&etc. |
|---|---|---|---|
| Structure | AIA/St; AIA/AIA; St/St ; | Material | Aluminum/Steel;Aluminum;Stainless Steel/Carbon Steel |
| Color | Plain | Surface Treatment | Polishing |
| Highlight | Break Mandrel Blind Rivets,Flat Head Blind Rivets,DIN7337 Countersunk Blind Rivets |
||
You can tick the products you need and communicate with us in the message board.
| specifications and models | Nominal diameter of thread(mm) | Length(mm) | inventory | |
|---|---|---|---|---|
| countersunk head(Semisteel SUS304/45A) | 3.2 | 6-8 | 1 | |
| Φ3.2*6（304/45A） | Φ3.2(304/45A) | 6 | 10000 | |
| Φ3.2*8（304/45A） | Φ3.2(304/45A) | 8 | 10000 | |
| countersunk head (ferro aluminum 5050/1008) | Φ3.2-Φ4.0 | 8-16 | 1 | |
| Φ3.2*8(5050/1008) | Φ3.2 | 8 | 10000 | |
| Φ3.2*9(5050/1008) | Φ3.2 | 9 | 10000 | |
| Φ3.2*13(5050/1008) | Φ3.2 | 13 | 10000 | |
| Φ4.0*10(5050/1008) | Φ4.0 | 10 | 10000 | |
| Φ4.0*16(5050/1008) | Φ4.0 | 16 | 10000 | |
| flat head(Semisteel SUS304/45A) | Φ3.2-4 | 6-11 | 1 | |
| Φ3.2*7(SUS304/45A) | Φ3.2 | 7 | 10000 | |
| Φ3.2*9(SUS304/45A) | Φ3.2 | 9 | 10000 | |
| Φ3.2*11(SUS304/45A) | Φ3.2 | 11 | 10000 | |
| Φ4.0*6(SUS304/45A) | Φ4.0 | 6 | 10000 | |
| flat head (ferro aluminum 5050/1008) | Φ3.2-Φ6 | 7-25 | 1 | |
| Φ3.2*7(5050/1008) | Φ3.2 | 7 | 10000 | |
| Φ3.2*8(5050/1008) | Φ3.2 | 8 | 10000 | |
| Φ3.2*9(5050/1008) | Φ3.2 | 9 | 10000 | |
| Φ3.2*10(5050/1008) | Φ3.2 | 10 | 10000 | |
| Φ3.2*11(5050/1008) | Φ3.2 | 11 | 10000 | |
| Φ4.0*8(5050/1008) | Φ4.0 | 8 | 10000 | |
| Φ4.0*10(5050/1008) | Φ4.0 | 10 | 10000 | |
| Φ4.0*13(5050/1008) | Φ4.0 | 13 | 10000 | |
| Φ4.0*16(5050/1008) | Φ4.0 | 16 | 10000 | |
| Φ5.0*11(5050/1008) | Φ5.0 | 11 | 10000 | |
| Φ5.0*13(5050/1008) | Φ5.0 | 13 | 10000 | |
| Φ5.0*16(5050/1008) | Φ5.0 | 16 | 10000 | |
| Φ5.0*25(5050/1008) | Φ5.0 | 25 | 10000 | |
| Φ6*16(5050/1008) | Φ6 | 16 | 10000 | |
| all aluminum(5050) | Φ4.0 | 10-16 | 1 | |
| Φ4.0*10(5050) | Φ4.0 | 10 | 10000 | |
| Φ4.0*16(5050) | Φ4.0 | 16 | 10000 | |
| Stainless steel(SUS304) | Φ4.0-Φ5.0 | 8-10 | 1 | |
| Φ4.0*8(countersunk head) | Φ4.0 | 8 | 10000 | |
| Φ4.0*10(ISO15977) | Φ4.0 | 10 | 10000 | |
| Φ5.0*8(Mushroom Head Break Mandrel Blind Rivets) | Φ5.0*8 | 8 | 10000 | |
| If you have more needs, please contact customer service | 1 | 1 | 1 |
Product Description
DIN7337 (A)/(B) DIN EN ISO 15977 15982 AIA/St AIA/AIA St/St Break Manderl Blind Rivets Flat Head /Countersunk Head
| Nominal Diameter d |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
| Nominal Diameter d |
|
||||||||||||||||||||||||||||||||||||||||||||||
|
|
Features:
-
Adopting a break mandrel design, during installation, the mandrel breaks off at a predetermined force, allowing the rivet body to be securely fastened in the material. This design simplifies the installation process and ensures the robustness and reliability of the riveted connection.
-
The design of flat head and countersunk head allows the rivet to be flush with or below the surface of the material, creating a clean and aesthetic appearance, and optimizing the structural performance.
-
The selection of materials for these rivets focuses on high-strength options, such as stainless steel and carbon steel, which are capable of enduring substantial shear and tensile forces.
-
These rivets come in a wide variety of specifications, including different diameters and lengths, ensuring that they can cater to a diverse range of fastening requirements.
Advantages:
-
Installation of these rivets is quick and easy, eliminating the need for pre-drilling or tapping. With specialized tools, they can be installed swiftly and efficiently.
-
The combination of high-strength materials and the break mandrel design ensures that these rivets provide a secure and stable connection. This design feature enhances the overall durability and reliability of the fastened joint.
-
The design of flat head and countersunk head allows the rivet to be flush with or below the surface of the material, creating a clean and aesthetic appearance, and optimizing the structural performance.
-
These rivets offer a versatile solution in situations where welding or threaded connections are not practical. Their compatibility with a wide range of material combinations and thicknesses ensures a broad applicability, making them an ideal choice for a diverse set of applications.
Applications:
-
Aerospace: Used in aircraft, spacecraft, and other applications that require high-strength, lightweight connections.
-
Automotive Manufacturing: Widely used in the connection of car bodies, chassis components, etc.
-
Electronic Equipment: Used to secure internal components of electronic devices, ensuring stability without affecting the appearance.
-
Other Industrial Sectors: Applicable in various industries such as shipping, railways, construction, and any other situation requiring high-strength, quick connections.
