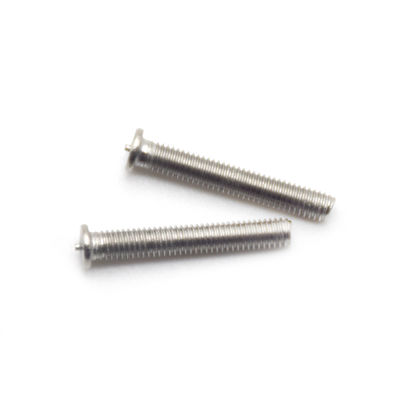

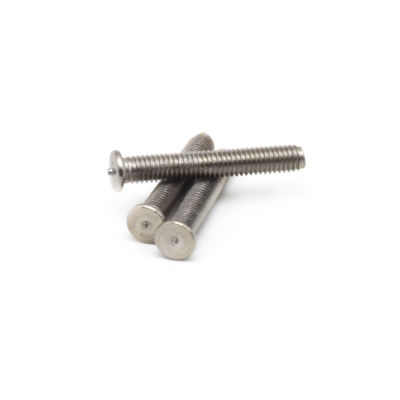

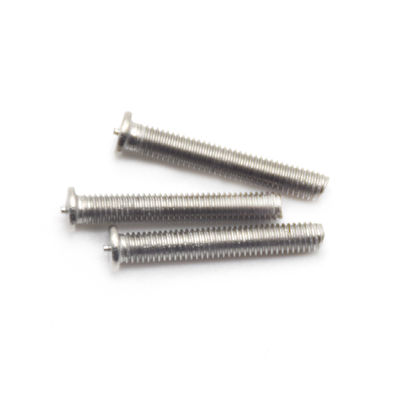

ISO 13918(PT) DIN 32501-1(GA) Threaded Weld Studs With Tip Ignition Type PT

  • ISO 13918(PT) DIN 32501-1(GA) Threaded Weld Studs With Tip Ignition Type PT
  • ISO 13918(PT) DIN 32501-1(GA) Threaded Weld Studs With Tip Ignition Type PT
  • ISO 13918(PT) DIN 32501-1(GA) Threaded Weld Studs With Tip Ignition Type PT
Place of Origin JIANG SU PROVINCE CHINA
Brand Name YingYan
Certification ISO9000
Model Number M3-M5
Minimum Order Quantity 1000pieces
Price Negotiable
Packaging Details Small Boxes, Plastic Bags, Bulk in Cartons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Weld Studs For Capacitor Discharge Welding - Type PT Standard GB/DIN/ASME/EN/ISO&etc.
Material Carbon Steel/Stainless Steel SUS304 Surface Treatment Polishing
Color Plain Size M3-M5/according To Your Requirements
Length 10mm-25mm/according Your Requirements
Highlight

ISO 13918 Weld Studs

,

Type PT Weld Studs

,

Tip Ignition Threaded Stud
Leave a Message
Product Description

ISO 13918(PT) DIN 32501GA Weld Studs For Capacitor Discharge Welding - Type PT Carbon Steel Stainless Steel SUS304





ISO 13918(PT) DIN 32501-1(GA) Threaded Weld Studs With Tip Ignition Type PT 0

Screw Thread
d
M3 M4 M5 M6
P Pitch
dk Nominal Size
max
min
dp Nominal Size
max
min
z Nominal Size
max
min
h
n max
α ±1°
0.5 0.7 0.8 1
4.5 5.6 6.5 7.5
4.7 5.8 6.7 7.7
4.3 5.4 6.3 7.3
0.65 0.65 0.75 0.75
0.73 0.73 0.83 0.83
0.57 0.57 0.67 0.67
0.55 0.55 0.8 0.8
0.6 0.6 0.85 0.85
0.5 0.5 0.75 0.75
0.7~1.4 0.7~1.4 0.8~1.4 0.8~1.4
1.5 1.5 2 2
3° 3° 3° 3°




Features

  1. A specific section of the DIN 32051 bolt is designed as a welding end, which can be directly welded to the base material to provide a secure connection.
  2. The full-threaded design of the screw rod offers an increased number of connection points, thereby enhancing its connection capabilities.
  3. The design and manufacturing of DIN 32051 adhere to international standards, ensuring high-precision dimensions that guarantee compatibility with other threaded components. This compliance ensures a seamless integration and reliable performance when paired with other standard-compliant threaded parts.
  4. Based on varying requirements, bolts can be manufactured using different materials, including stainless steel and carbon steel, to suit specific applications.

Advantages

  1. The welded connection combined with the full thread design imparts high strength and stability to this bolt.
  2. Crafted from stainless steel, these bolts offer excellent corrosion resistance, making them ideally suited for use in harsh environments.
  3. The welding connection greatly simplifies the installation process, making it easy to install these bolts and enhancing overall work efficiency.
  4. As long as the bolt remains undamaged, it can be reused through re-welding.

Applications

  1. Bridges and Building Structures: In heavy-duty structures like bridges and buildings, the DIN 32051 bolt is used to connect steel plates, beams, and other load-bearing components, ensuring structural stability and safety.
  2. Mechanical Engineering: In the manufacturing of machinery, pressure vessels, pipelines, and other equipment, this bolt is used to connect and fix various components, ensuring the normal operation of the equipment.
  3. Petrochemical Industry: In the petrochemical industry, the DIN 32051 bolt is commonly used to connect pipes, valves, flanges, and other components, enduring high pressure and temperature challenges.
  4. Power Industry: In power facilities such as power plants and substations, the bolt is used to fix and connect electrical equipment, cables, and other components, ensuring the reliability and safety of power transmission.
