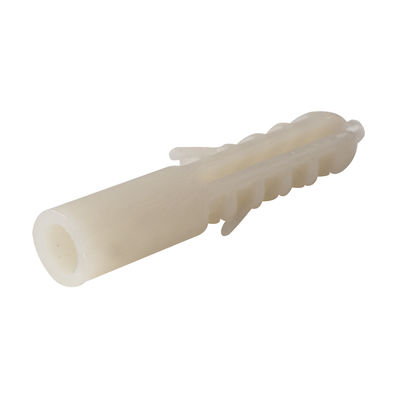

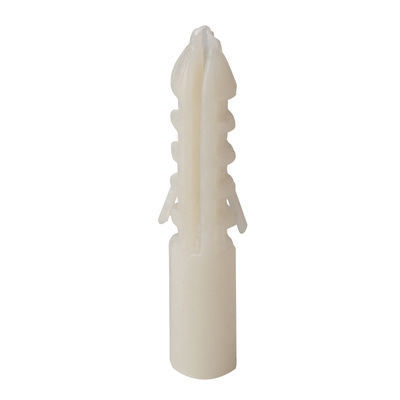

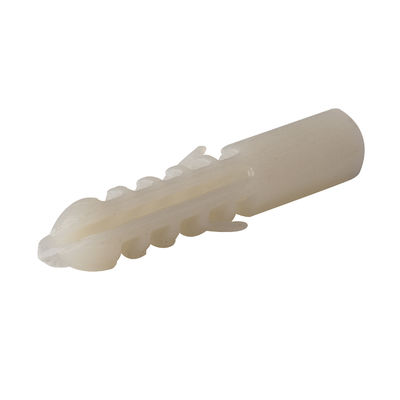

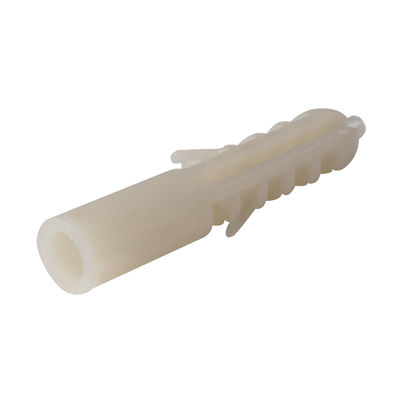

Nylon Type Plastic Expansion Anchor Bolt YJT 1032 Plastic Wall Plug Without Ring

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Nylon Type Plastic Expansion Anchor | Material | Plastic |
---|---|---|---|
Standard | GB/DIN/ASME/EN/ISO&etc. | Color | White-blue |
Shape | Fish | Application | Machinery, Chemical Industry, Environmental, Building |
Length | 29-40mm | Size | Φ6,Φ8/According Your Requirements |
Highlight | Nylon Expansion Anchor Bolt,Plastic Expansion Anchor Bolt,Plastic Wall Plug Without Ring |
Plastic Wall Plug Without Ring /Nylon Type Plastic Expansion Anchor Bolt YJT 1032 Φ6,Φ8
Characteristics, Advantages, and Application Scenarios of "Plastic Wall Plug without Ring"
Characteristics:
-
Sleek Design: The ringless design allows the wall plug to remain concealed after installation, avoiding prominent protrusions or marks on the wall, thus maintaining a clean and aesthetic wall appearance.
-
Easy Installation: Typically, it only requires drilling a suitably sized hole in the wall, inserting the wall plug, and screwing in the bolt to complete the installation. The process is simple and quick.
-
Lightweight Material: Made of plastic, it is lighter in weight compared to metal wall plugs, making it easier to carry and install.
-
Variety of Specifications: Available in multiple sizes to accommodate walls of different thicknesses and materials, as well as varying load-bearing requirements.
Advantages:
-
Aesthetics: The ringless design preserves the wall's flatness, enhancing the overall decorative effect, suitable for places that prioritize aesthetics.
-
Wide Applicability: With multiple sizes available, it can adapt to various wall materials and installation needs.
-
Cost-Effectiveness: Plastic wall plugs are generally more cost-efficient than metal ones, and less prone to damage during installation, reducing overall costs.
-
Corrosion Resistance: The plastic material offers good corrosion resistance, suitable for damp or corrosive environments.
Application Scenarios:
-
Home Decor: Ideal for hanging wall paintings, wall clocks, decorative shelves, and other home accessories, maintaining a clean and attractive wall appearance.
-
Office Renovation: Used to fasten file racks, whiteboards, notice boards, and other office equipment, providing both stability and aesthetics.
-
Commercial Spaces: Suitable for hanging advertising boards, signage, and directions in shopping malls, exhibition halls, and other venues, without disrupting the overall wall design.
-
Lightweight Partitions: When securing items to lightweight partitions or panel walls, ringless plastic wall plugs provide adequate support without compromising the wall's exterior.
Nominal Diameter D |
4 | 5 | 6 | 7 | 7 | 8 | 8 | 10 | 10 | 10 | |
L | 20 | 25 | 30 | 30 | 35 | 20 | 37 | 40 | 37 | 43 | |
Drill Bit Size | 4 | 5 | 6 | 7 | 7 | 8 | 8 | 10 | 10 | 10 | |
Recommend Hole Size | 25 | 30 | 40 | 40 | 45 | 45 | 50 | 45 | 50 | 60 | |
hole Depth | 2-2.6 | 2.8-3.2 | 3.5-4.2 | 4.5-5 | 4.5-5 | 5-5.5 | 5-5.5 | 6-7 | 6-7 | 6-7 |
Nominal Diameter D |
10 | 12 | 12 | 14 | |
L | 60 | 60 | 73 | 75 | |
Drill Bit Size | 10 | 12 | 12 | 14 | |
Recommend Hole Size | 70 | 70 | 80 | 85 | |
hole Depth | 6-7 | 8-9.5 | 8-9.5 | 10-11.5 |
