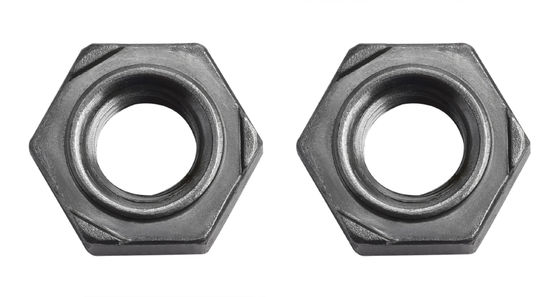

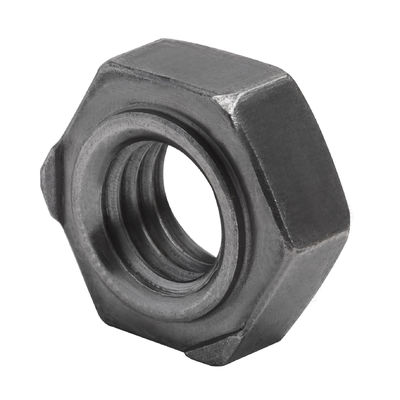

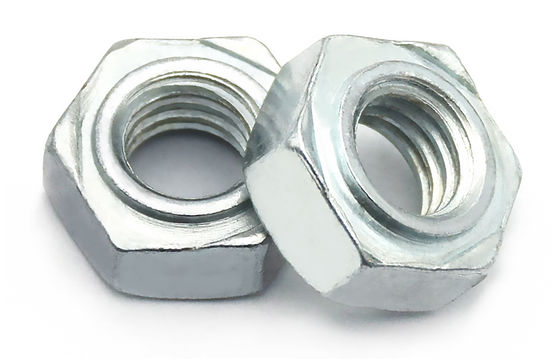

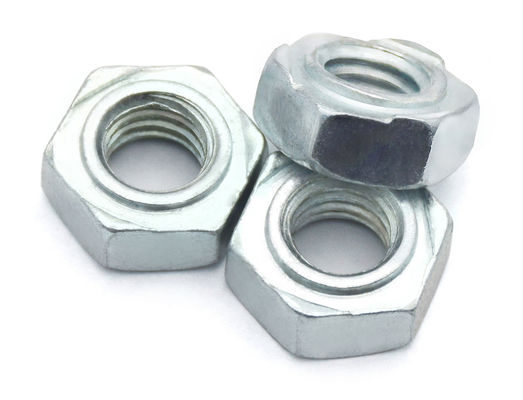

DIN 929 Hexagon Hex Weld Nut Stainless Steel SUS304 Carbon A3 M5 M6 M8 Class 4

  • DIN 929 Hexagon Hex Weld Nut Stainless Steel SUS304 Carbon A3 M5 M6 M8 Class 4
  • DIN 929 Hexagon Hex Weld Nut Stainless Steel SUS304 Carbon A3 M5 M6 M8 Class 4
  • DIN 929 Hexagon Hex Weld Nut Stainless Steel SUS304 Carbon A3 M5 M6 M8 Class 4
  • DIN 929 Hexagon Hex Weld Nut Stainless Steel SUS304 Carbon A3 M5 M6 M8 Class 4
  • DIN 929 Hexagon Hex Weld Nut Stainless Steel SUS304 Carbon A3 M5 M6 M8 Class 4
  • DIN 929 Hexagon Hex Weld Nut Stainless Steel SUS304 Carbon A3 M5 M6 M8 Class 4
  • DIN 929 Hexagon Hex Weld Nut Stainless Steel SUS304 Carbon A3 M5 M6 M8 Class 4
  • DIN 929 Hexagon Hex Weld Nut Stainless Steel SUS304 Carbon A3 M5 M6 M8 Class 4
  • DIN 929 Hexagon Hex Weld Nut Stainless Steel SUS304 Carbon A3 M5 M6 M8 Class 4
Place of Origin JIANG SU PROVINCE CHINA
Brand Name YingYan
Certification ISO9000
Model Number DIN 929
Minimum Order Quantity 1000pieces
Price Negotiable
Packaging Details Small Boxes, Plastic Bags, Bulk in Cartons,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hexagon Hex Weld Nuts Standard GB/DIN/ASME/EN/ISO&etc.
Material Stainless Steel Carbon Steel Grade 4
Finish ZINC, Plain, Size M5,M6,etc./According Your Requeirment
Highlight

DIN 929 Hex Weld Nut

,

Stainless Steel Hexagon Weld Nuts

,

Carbon Din934 Hex Nut
Leave a Message
Product Description

DIN 929 Hexagon Hex Weld Nuts Stainless Steel SUS304 Carbon A3 Ss M5 M6 M8 Class 4

Characteristics, Advantages, and Uses of Hexagon Weld Nuts DIN 929

Characteristics:

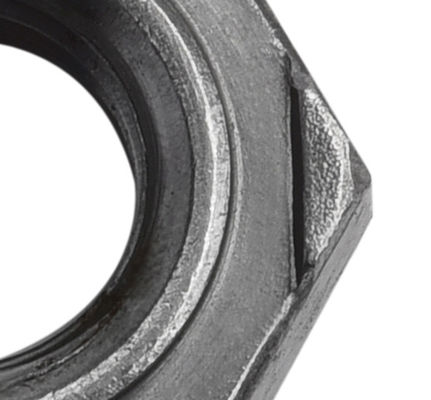

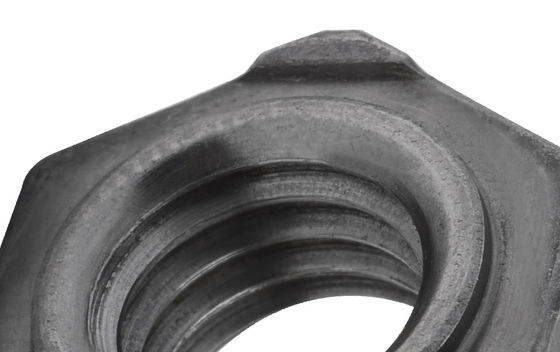

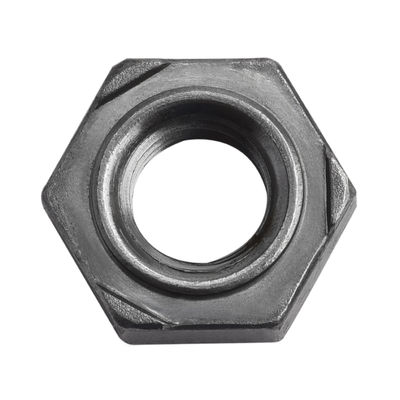

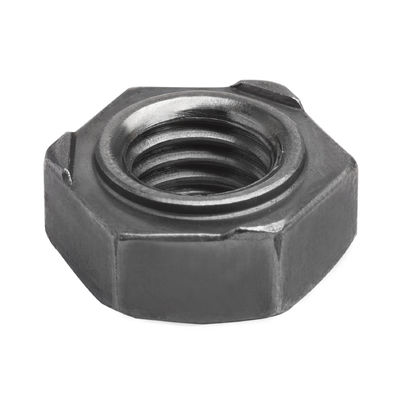

  1. Design: Hexagon weld nuts feature a hexagonal shape, with one side resembling a regular hex nut and the other side designed with three welding points and a protrusion for positioning. This design allows for both welding and retention of the hex nut's functional characteristics.

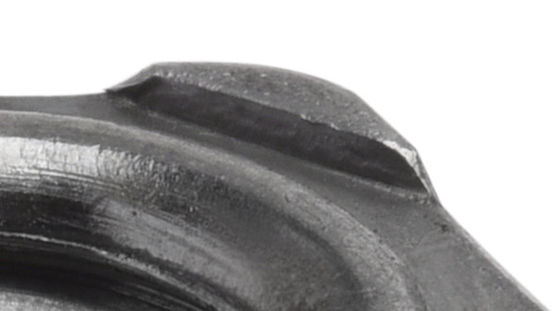

  2. Weldability: The three welding points on the nut are specifically designed for welding, enabling them to melt at high temperatures and securely weld onto the base material.
  3. Positioning Accuracy: The protrusion is designed for precise positioning, ensuring that the nut can be accurately placed in a predetermined location.
  4. Material Diversity: Hexagon weld nuts can be made from various materials such as stainless steel, carbon steel, etc., adapting to different usage environments and requirements.

Advantages:

  1. Strong Connection: The welding connection ensures a very strong bond between the nut and the base material, capable of withstanding significant tensile and shear forces.
  2. Precise Positioning: The protrusion design guarantees accurate nut placement, improving assembly precision and efficiency.
  3. High Efficiency: When used with a spot welder, it allows for fast and efficient welding operations, enhancing productivity.
  4. Wide Application: Hexagon weld nuts are suitable for various industries and scenarios, demonstrating strong versatility and adaptability.

Uses:

  1. Automotive Industry: Applied in critical parts such as car seats, chassis beams, transmissions, seat belts, etc., for secure connections between components.
  2. Machinery Industry: In the assembly of machinery and components, hexagon weld nuts enable fast and accurate connections.
  3. Electronics Industry: Hexagon weld nuts are also used in the manufacturing and assembly of electronic devices for connections and fixations.
  4. Construction Industry: In structural connections, hexagon weld nuts provide secure connection points, enhancing structural stability.

Overall, Hexagon Weld Nuts DIN 929, with their unique design, excellent performance, and wide range of applications, are widely used and recognized across multiple industries.

DIN 929 Hexagon Hex Weld Nut Stainless Steel SUS304 Carbon A3 M5 M6 M8 Class 4 0

Thread Size M3 M4 M5 M6 M8 M10
D
P Pitch Coarse thread 0.5 0.7 0.8 1 1.25 1.5
Fine thread 1 / / / / 1 1.25
Fine thread 2 / / / / / 1
b Nominal Size   0.8 0.8 0.8 0.9 1 1.25
max   1 1 1 1.12 1.25 1.55
min   0.6 0.6 0.6 0.68 0.75 0.95
d1 Nominal Size (d11)   4.5 6 7 8 10.5 12.5
max   4.47 5.97 6.96 7.96 10.45 12.45
min   4.395 5.895 6.87 7.87 10.34 12.34
d2 min=nominal size (H13)   4.5 6 7 8 10.5 12.5
max   4.68 6.18 7.22 8.22 10.77 12.77
d3 max   3.15 4.2 5.25 6.3 8.4 10.5
e min   8.15 9.83 10.95 12.02 15.38 18.74
h1 max   0.55 0.65 0.7 0.75 0.9 1.15
min   0.45 0.55 0.6 0.6 0.75 0.95
h2 max   0.25 0.35 0.4 0.4 0.5 0.65
min   0.15 0.25 0.3 0.3 0.35 0.5
m max=nominal size (h14)   3 3.5 4 5 6.5 8
min   2.75 3.2 3.7 4.7 6.14 7.64
s max=nominal size (h13)   7.5 9 10 11 14 17
min   7.28 8.78 9.78 10.73 13.73 16.73
per 1000 units ≈ kg   0.78 1.13 1.73 2.5 5.27 9.58
Ensure the load(N) Coarse thread   3800 6800 11000 15500 28300 44800
Fine thread 1   / / / / 30200 47800
Fine thread 2   / / / / / 50200
Thread Size 7/16 7/16 M12 (M14) M16
D Inch Inch
P Pitch Coarse thread / / 1.75 2 2
Fine thread 1 / / 1.25 1.5 1.5
Fine thread 2 * * 1.5 / /
b Nominal Size   1.25 1.25 1.25 1.5 1.5
max   1.55 1.55 1.55 1.9 1.9
min   0.95 0.95 0.95 1.1 1.1
d1 Nominal Size (d11)   12.5 13.5 14.8 16.8 18.8
max   12.45 13.45 14.75 16.75 18.735
min   12.34 13.34 14.64 16.64 18.605
d2 min=nominal size (H13)   13.5 13.5 14.8 16.8 18.8
max   13.77 13.77 15.07 17.07 19.13
d3 max   11.7 11.7 12.6 14.7 16.8
e min   18.74 20.91 20.91 24.27 26.51
h1 max   1.15 1.4 1.4 1.8 1.8
min   0.95 1.2 1.2 1.6 1.6
h2 max   0.65 0.8 0.8 1 1
min   0.45 0.6 0.6 0.8 0.8
m max=nominal size (h14)   10 10 10 11 13
min   9.64 9.64 9.64 10.57 12.57
s max=nominal size (h13)   17 19 19 22 24
min   16.73 18.67 18.67 21.67 23.67
per 1000 units ≈ kg   12 14 13.7 21.3 28.5
Ensure the load(N) Coarse thread   / / 65300 89700 123000
Fine thread 1   / / 72100 97500 132000
Fine thread 2   53600 53600 68200 / /
