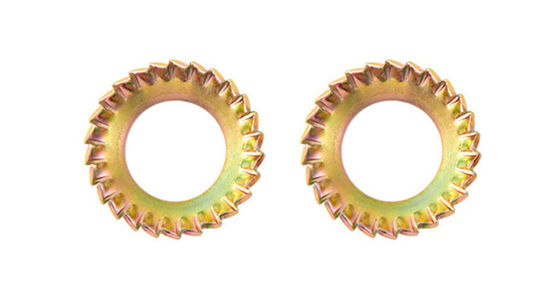

Countersunk Toothed Lock Washer Types Galvanization Zinc Plated DIN6798(V)

  • Countersunk Toothed Lock Washer Types Galvanization Zinc Plated DIN6798(V)
Place of Origin JIANG SU PROVINCE CHINA
Brand Name YingYan
Certification ISO9000
Model Number Φ6-Φ10
Minimum Order Quantity 1000pieces
Price Negotiable
Packaging Details Small Boxes, Plastic Bags, Bulk in Cartons,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Toothed Lock Washers With Countersunk - Type V Standard GB/DIN/ASME/EN/ISO&etc.
Material 65Mn Surface Treatment Zinc Plated
Color Yellow Size Φ6-Φ10/according To Your Requirements
Highlight

Toothed Lock Washer Types

,

Countersunk Lock Washer Types

,

Galvanization DIN 6798 Washer
Leave a Message
Product Description

DIN6798(V) Toothed Lock Washers With Countersunk - Type V Galvanization Alloy Steel 65Mn

Countersunk Toothed Lock Washer Types Galvanization Zinc Plated DIN6798(V) 0

Nominal Diameter 2.2 2.7 3.2 3.7 4.3 5.3
d
d min=nominal size 2.2 2.7 3.2 3.7 4.3 5.3
  max 2.34 2.84 3.38 3.88 4.48 5.48
dc 4.2 5.1 6 7 8 9.8
h 0.2 0.2 0.2 0.25 0.25 0.3
Number of Teeth   min 10 10 12 12 14 14
per 1000 units≈kg 0.025 0.03 0.04 0.075 0.1 0.2
For Nominal Thread Diameter M2 M2.5 M3 M3.5 M4 M5
Nominal Diameter 6.4 8.4 10.5 13 15 17
d
d   min=nominal size 6.4 8.4 10.5 13 15 17
  max 6.62 8.62 10.77 13.27 15.27 17.27
dc 11.8 15.3 19 23 26.2 30.2
h 0.4 0.4 0.5 0.5 0.6 0.6
Number of Teeth   min 16 18 20 26 28 30
per 1000 units≈kg 0.3 0.5 1 1.5 1.9 2.3
For Nominal Thread Diameter M6 M8 M10 M12 M14 M16








Features

  1. Toothed Lock Washers With Countersunk - Type V can be used in applications that require visibility. They are designed with countersunk or conical heads, which can be flush with the surface after installation, making the appearance neat and beautiful. While bringing visual beauty, the countersunk design also ensures a flat surface after installation, avoiding potential safety hazards or inconveniences caused by protruding parts. The main function of lock washers is to provide additional locking force to prevent bolts or nuts from loosening in a load or vibration environment, ensuring reliable and stable connections. Therefore, Toothed Lock Washers With Countersunk - Type V are very popular in industrial applications requiring high strength and high reliability.

  2. In order to prevent bolts or nuts from loosening due to vibration or shock, external teeth are designed. These teeth can bite into the mating surface, providing a secure locking effect.

  3. The washers are constructed from high-strength materials such as stainless steel and carbon steel, ensuring durability and long-term performance.

  4. To cope with different working environments, DIN 6798(V) washers are made of various materials, which endow them with excellent corrosion resistance.

Advantages

  1. Thanks to the external teeth design, the washers are able to provide a secure locking effect, ensuring that nuts and bolts remain tightly fastened and do not shift, even under severe vibration or shock conditions.

  2. Thanks to its countersunk design, the washers can be installed easily and flush with the surface, reducing the need for additional finishing work, saving installation time, and lowering installation costs.

  3. The DIN 6798(V) washers come in a range of sizes to accommodate various bolt and nut dimensions, making them a versatile solution for multiple application scenarios.

  4. Crafted from high-strength materials, the washers exhibit exceptional durability, minimizing the need for frequent replacements and consequently saving costs.

Uses

  1. DIN6798(V) washers are common fasteners in the automotive industry, especially in engine and chassis components, where secure locking is critical.

  2. The presence of washers provides a reliable solution for the locking of bolts and nuts under high vibration or impact loads.

  3. Building Construction: These washers can be found in building construction applications, such as steel frames and structures, where secure fastening is essential.

  4. Aerospace and Defense: In aerospace and defense applications, DIN 6798(V) washers are used to ensure bolts and nuts remain tightened in critical components, such as engines and flight control systems.













Tags:

Flat Spring Washer

Retaining Rings

Plain Flat Washer
